Doorway and aisle clearance
The narrow models are 0.81 m wide. The 15.7 m working-height machines are 1.25–1.40 m wide. Check every doorway, aisle turn and lift entrance.
XEN Self-Propelled Electric Scissor Lifts
Reach overhead services, lighting and building installations with controlled electric travel and lift. Compact chassis choices and an extension deck help position the platform close to the task on firm, level floors.
ForkFocus equipment supply · Configuration support · Inspection · Export shipment · After-sales assistance
Compare models and specificationsCompare other AWP types
Ask for a quote

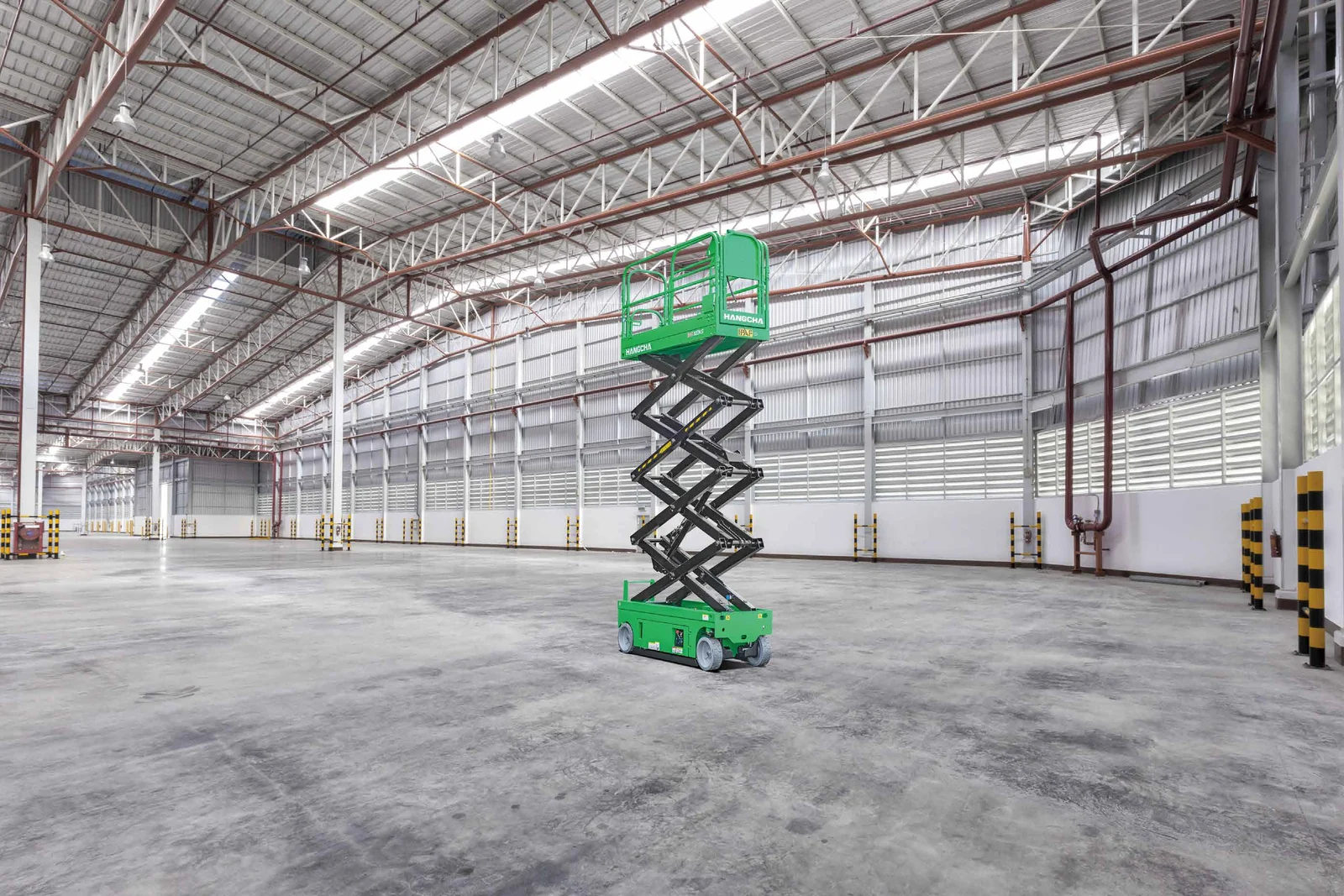

Indoor installation and maintenance without an engine exhaust
The XEN chassis combines a sealed AC hydraulic drive, proportional lift and travel control, on-board fault indication and model-specific lead-acid or lithium battery configurations.
- AC hydraulic drive
- The IP67 sealed AC hydraulic drive uses a brushless motor, reducing routine motor-service requirements.
- Proportional lift and travel
- Proportional joystick control helps position the machine and platform close to overhead installations.
- Battery configurations
- Maintenance-free 24 V lead-acid batteries are standard. Lithium batteries are listed as model-specific options.
- Fault indication and control
- The LED fault display helps identify operating faults so maintenance staff and remote support can discuss the correct issue.
Performance in Real Work
Platform capacity
Main-platform capacity is 230–450 kg. Include operators, tools and materials when checking the main deck and extension-deck loads.
Battery and charger selection
Lead-acid and lithium battery capacities vary by model. Confirm charger input, shift duration and the available charging period.
Product video
Scissor lift positioning and ground controls
See how a self-propelled electric scissor lift is positioned and operated from its ground controls. Compare the access space and platform movement with the maintenance or installation work you need to carry out.
Recommended applications
- Factory, warehouse and facility maintenance on firm, level floors.
- Vertical access work requiring a full scissor platform without horizontal outreach.
- Sites where access width, floor loading and charging conditions can be confirmed.
Application limits
- Crawler traction or a dedicated rough-terrain chassis is required.
- The work position requires horizontal outreach or access over an obstruction.
- Floor loading, doorway width or slope exceeds the selected model limits.
Compare Other Aerial Work Platforms
Different work conditions may call for a different machine. Compare the options below, or tell ForkFocus the main task and working height for selection help. If you know the model, you can request a quote directly.
Your requirement
Doorways, elevators or machine weight limit access
AWP options to compare
Key difference to check
Compare stowed dimensions, machine weight and platform load for each model. A mast lift is not automatically narrower or lighter than a scissor lift.
Your requirement
A rough-terrain chassis is needed
AWP options to compare
Key difference to check
Compare ground conditions, wheeled or crawler chassis, power and platform load. Confirm ground support, slope limits and stabiliser setup for the selected machine.
Your requirement
The platform must reach over equipment or around an obstacle
AWP options to compare
Key difference to check
Compare working height, horizontal reach, access dimensions and platform load against the actual obstacle. These machines reach different heights and positions.
Your requirement
You are comparing electric scissors for the same task
AWP options to compare
Key difference to check
Compare the published models, chassis dimensions, platform loads and battery configurations with XEN. Check the drive layout and selected configuration.
Browse by equipment type
Scissor Lifts — Vertical access with a scissor platform.
Vertical Mast Lifts — Point access, with or without a jib.
Boom Lifts — Articulating & Telescopic — Horizontal reach and access around obstacles.
Why Hangcha
Indoor installation and maintenance without an engine exhaust.
- Brushless AC drive reduces routine motor maintenance.
- Proportional travel and lift controls support precise positioning.
- Narrow chassis choices suit restricted indoor access.
- Lead-acid and model-specific lithium options support different charging requirements.
Compare the scissor lifts available from ForkFocus.
Why ForkFocus
Access equipment supply backed by material handling expertise and ForkFocus 360° service.
- Application and model choice. Compare doorway width, working height and personnel-plus-tool load across the narrow, standard and higher XEN chassis.
- Equipment and configuration quotation. Lead-acid or lithium options, charger supply and the model-specific quotation are arranged with inspection, export shipment and manuals.
- One material handling supplier. Coordinate access equipment with forklifts and spare parts for the wider project.
- Support before and after shipment. Customer-appointed pre-shipment inspection, export coordination, manuals and remote after-sales assistance support the equipment purchase.
Get an XEN model and battery configuration for your building. Send a model request or describe the work; ForkFocus will help with the remaining selection details.
Equipment supply with ForkFocus 360° service
Inspection and shipment you can check
Confirm the ordered equipment before dispatch. Customer-appointed third-party inspection is accepted, and packing and loading are coordinated for the agreed shipment.
Fast response after delivery
7×24 after-sales support: remote troubleshooting, parts identification and applicable manuals.
Stocked parts: quick preparation through our spare parts support.
Special, non-stock and imported parts: availability depends on the requested part.

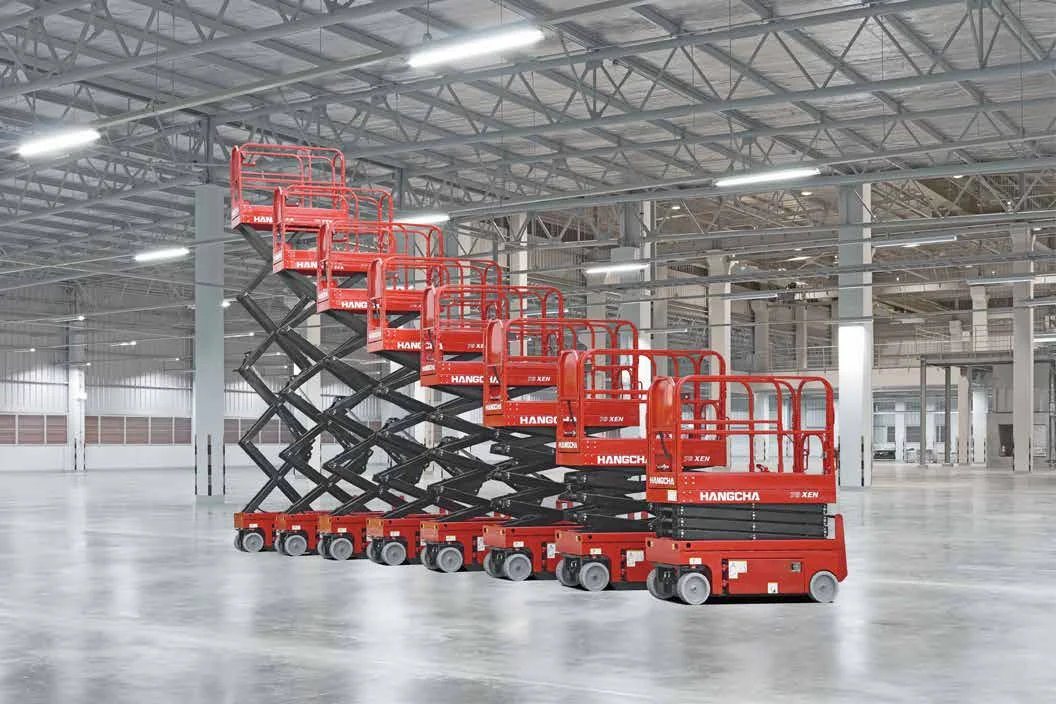

Models and core specifications
Choose the XEN model by access, height and load
Narrow entrances: 65XEN, 78XEN, 80XENS and 100XENS are 0.81 m wide, covering 6.5–10 m working height. Allow clearance beyond the machine width when planning passage.
More tools and materials: 80XEN and 100XEN offer 450 kg main-platform capacity at 8 m and 10 m working height, with a 1.15 m chassis. Extension-deck load remains 113 kg.
Higher work positions: the 160XEN family reaches 15.7 m. Choose 160XENS for its 1.25 m width, or compare the 350 kg main-platform capacity of 160XEN-P with the 230 kg rating of 160XEN.
The table keeps working height and platform height separate. Width and platform load change across the family, so the access path and task load must be checked with the selected model.
| Model | Working height | Platform height | Platform load | Extension load | Overall width |
|---|---|---|---|---|---|
| 65XEN | 6.5 m | 4.5 m | 320 kg | 113 kg | 0.81 m |
| 78XEN | 7.8 m | 5.8 m | 230 kg | 113 kg | 0.81 m |
| 80XENS | 8 m | 6 m | 380 kg | 113 kg | 0.81 m |
| 100XENS | 10 m | 8 m | 230 kg | 113 kg | 0.81 m |
| 80XEN | 8 m | 6 m | 450 kg | 113 kg | 1.15 m |
| 100XEN | 10 m | 8 m | 450 kg | 113 kg | 1.15 m |
| 120XEN | 12 m | 10 m | 320 kg | 113 kg | 1.15 m |
| 140XEN | 13.8 m | 11.8 m | 320 kg | 113 kg | 1.15 m |
| 160XEN | 15.7 m | 13.7 m | 230 kg | 113 kg | 1.40 m |
| 160XENS | 15.7 m | 13.7 m | 230 kg | 113 kg | 1.25 m |
| 160XEN-P | 15.7 m | 13.7 m | 350 kg | 120 kg | 1.40 m |
Published values are model-specific. Battery option, worker rating, dimensions and allowable inclination remain subject to the selected configuration and destination requirements.
Get a quote for your application
Know the model? Send the model, quantity and destination for a quotation.
Need help choosing? Tell us the working height and where the lift will be used.
ForkFocus will help you compare models and configurations, then quote the equipment. Other technical details can follow during selection.
Ask for a quoteFrequently asked questions
What is the difference between working height and platform height?
Working height includes the published operator reach allowance above the platform. Platform height is the deck height. The model table shows both values separately.
Which XEN models fit a 0.81 m access width?
65XEN, 78XEN, 80XENS and 100XENS have a published overall width of 0.81 m. The full access path, turning space and doorway clearance still require confirmation.
Is lithium power available across the XEN family?
Hangcha lithium configurations are listed as options, with battery capacity varying by model. Confirm the selected model, charger input and destination configuration before quotation.
Talk to ForkFocus about your access equipment
Request a quotation by model, quantity and destination, or send the work height and application for selection assistance. Incomplete specifications are welcome.
