Class 3 Electric Pallet Trucks and Stackers
Walkie, platform, rider and heavy-capacity warehouse trucks must be matched to pallet entry, travel distance, lift height, ramp use and the operator’s complete route.
Two product routes, selected by load movement
Pallet trucks move a pallet at floor level, while stackers lift the pallet into racking or onto a raised position. The two machines can share a warehouse, but fork geometry, residual capacity and operating risk are different.

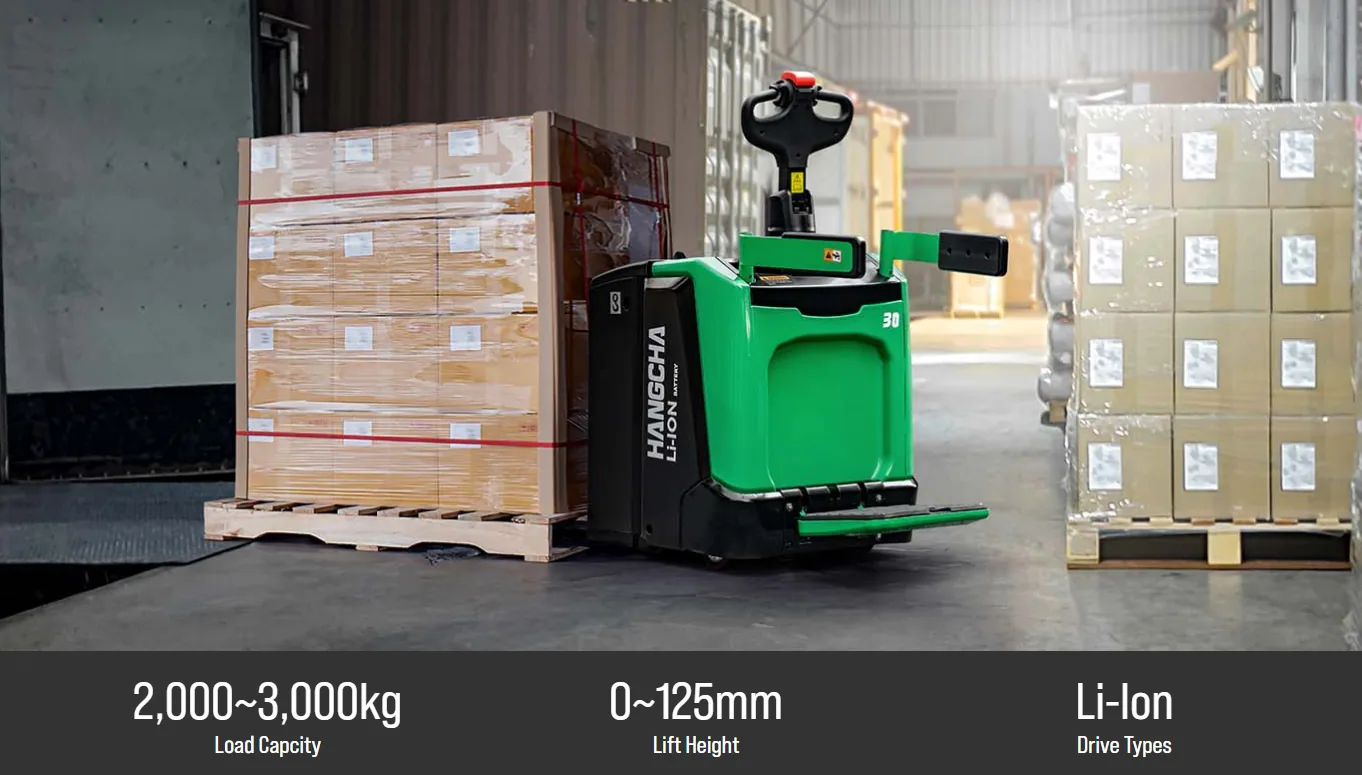

Electric Pallet Trucks
Compare 1.5–2.0 t mini walkie trucks, 2.0–3.0 t A/X/XA platform and rider trucks, and 4.0–6.0 t heavy-capacity models.
Electric Stackers
Compare walkie, platform, rider, initial-lift, reach-fork, moving-mast, counterbalanced and double-deck configurations.
What matters during a working shift
On a short, level route a walkie truck can be the most economical choice. Longer travel, frequent ramps or high pallet throughput normally justify a platform or rider configuration.
For stackers, lift height is only the beginning. Pallet entry, fork section, aisle width, load centre, residual capacity and mast-lowered height determine whether the machine can work safely in the actual rack.
| Pallet | Entry direction, bottom-board clearance, tunnel width, load dimensions and weight. |
|---|---|
| Route | Travel distance, ramps, floor joints, turning points and pedestrian traffic. |
| Lift | Required fork height, mast-lowered height and residual capacity at height. |
| Cycle | Pallets per hour, shift duration and charging window. |
| Operator | Walkie, platform, rider, side-entry or seated operating position. |
Forklift, parts and load handling in one plan
ForkFocus integrates forklifts, planned spare parts and suitable hydraulic attachments into one material handling solution.
Class 3 trucks normally use forks or specialised load carriers rather than clamp attachments. Where the same fleet also operates counterbalance forklifts or stackers with approved load-handling options, we coordinate the configuration, service items, documents and shipment arrangement together.
Class 3 FAQ
When should a platform truck replace a walkie truck?
Consider a platform or rider truck when travel distance, pallet throughput or operator fatigue makes repeated walking inefficient. The floor, turning space and ramp condition must still suit the chassis.
Can a 2.0 t pallet truck replace a 2.0 t stacker?
No. A pallet truck transports the pallet close to floor level; a stacker raises it into racking. The rated capacities may match, but the mast, residual capacity and aisle requirement do not.
Which model families are covered?
Typical families include BD pallet trucks and CDD, CTD, CQDB and CPDB stackers. The full model suffix is confirmed from the operator position, battery, mast and special functions.
What are the normal commercial terms?
Standard small warehouse trucks normally require about 30 days after configuration confirmation. Warranty is normally 1–2 years or 2,000 working hours, whichever comes first; payment is normally 30% deposit and 70% before delivery.
Send the pallet and route before choosing the chassis
Share pallet dimensions, maximum load, route distance, ramp gradient, lift height and daily pallet count. We will return a practical Class 3 configuration with service and delivery requirements.
From one truck to a complete pallet-handling plan
ForkFocus integrates forklifts, spare parts and hydraulic attachments into unified material handling solutions. We confirm pallet entry, route distance, ramp condition, mast height and battery plan before recommending the truck configuration.
Wear parts and service items can be prepared with the equipment order. Where the application requires more than forks, our forklift attachments and forklift spare parts are checked against the chassis, while shipment planning coordinates the truck and related items.
