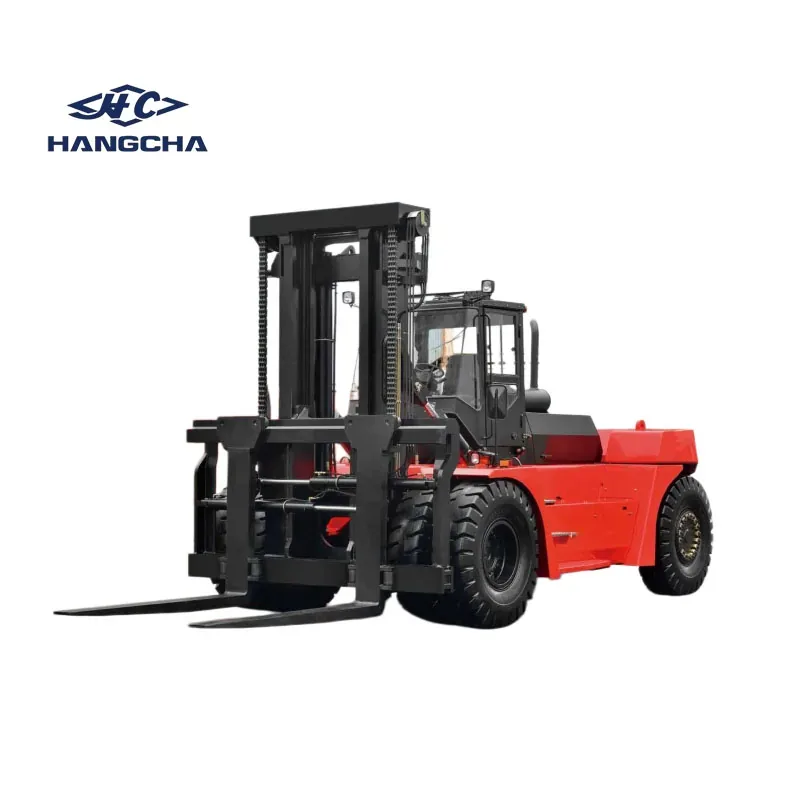

Heavy-duty forklift capacity at the actual working point
Choose the truck from the actual load, its centre of gravity, the lift height and the attachment or fork arrangement. Rated capacity is only the starting reference. The applicable mast/load chart, tyre and axle limits, surface, duty cycle, power system, braking and travel path must support the same working condition before the configuration is accepted.
This guide applies to heavy-duty forklifts used for large industrial loads, machinery, steel, ports and other high-capacity work.
Watch hydraulic fork positioning on a heavy-duty forklift
This ForkFocus landscape video shows a heavy-duty forklift using hydraulic fork positioning and side shift. It demonstrates function and scale; it does not establish capacity for another mast, load centre or attachment configuration.
Working-point data that determine heavy-duty forklift capacity
How should a forklift be configured for heavy-load applications?
Load definition
Maximum operating load, dimensions, centre of gravity and load stability
Lift system
Required height, mast type, lowered height, free lift and visibility
Applicable forklift load chart
OEM load chart at the requested mast, height and load centre
Load interface
Fork section and spacing, fork pockets, carriage and attachment mass/geometry
Ground system
Floor or yard bearing condition, tyre type, gradients and edge conditions
Duty and energy
Cycles per hour, travel, shifts, temperature and refuelling/charging plan
Mast, load centre and attachments change available lifting capacity
ForkFocus checks the effect of higher masts, larger load centres, longer forks and attachments on available capacity. Select the forklift using the load chart for the required configuration and working point.
How the configuration is assessed
Review the load, centre of gravity, mast and load interface as one configuration before deciding the truck class.
What changes the result
A taller mast, forward load shift or heavy attachment can reduce available capacity and may also change visibility, axle loading and travel path needs.
Load chart for the specified mast and attachment
Use the exact OEM load chart for the selected truck, mast, lift height and actual load centre; do not transfer a curve from another configuration.
Heavy-duty specifications that change the complete truck
Capacity reserve, mast construction, tyres and load interface affect access, stability, axle loading and cost.
Capacity reserve vs truck size
A larger truck may provide working margin but changes access, turning space, transport and cost.
Mast height vs residual capacity
A taller or heavier mast can reduce capacity at height and change visibility.
Tyre choice vs surface
Tyres influence traction, comfort, heat and floor loading; they do not increase certified capacity.
Heavy-load specification errors that invalidate the capacity choice
Nominal tonnage alone cannot establish suitability at the required lift height and load centre.
- Quoting only the truck’s nominal tonnage
- Using a 500 mm load-centre assumption for a longer load
- Ignoring fork or attachment weight and forward offset
- Checking floor strength only after the truck is selected
Discuss your forklift requirements
Send a model, quantity and destination, or describe the load and lifting task.
Request a forklift quotationRepresentative heavy-duty forklift types
The two ranges below illustrate different chassis specifications; they are not a complete ForkFocus capacity map. Loads between these ranges require a separate product-family and working-point review rather than an invented bridge recommendation.

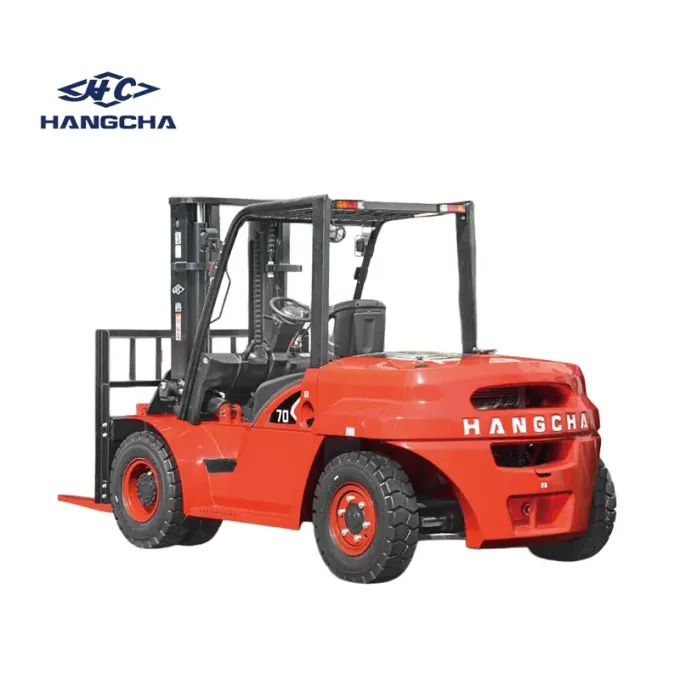

Industrial pallets, machinery and medium-heavy loads
X Series IC forklifts · 5.0–10.0 t
Suitable operating conditions: This forklift option is for industrial loads above compact-truck duty when the load centre, mast and site remain within the verified model operating limits.
Consider another option when: Choose another range when the actual load centre, fork section, mast, ground demand or residual-capacity requirement exceeds the verified configuration.
Check before quotation: Confirm actual load and centre of gravity, exact model, mast, tyre, forks or attachment and OEM capacity at the requested height and load centre.

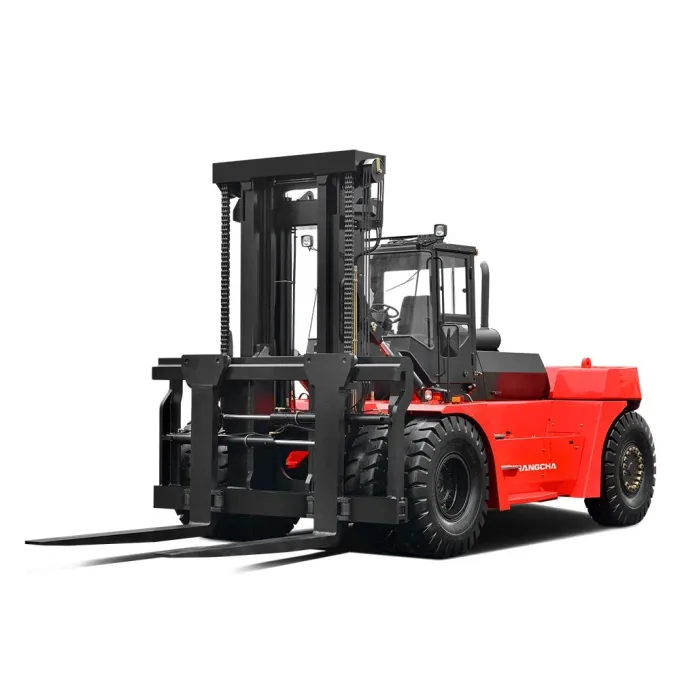

Large machinery, steel and port-scale loads
Heavy-duty forklifts · 28–32 t
Suitable operating conditions: This forklift option may suit work where load moment, fork section, axle demand and the operating site require a dedicated heavy chassis.
Consider another option when: Consider another truck class or handling method when access, ground bearing, transport limits or the exact load interface cannot support this equipment class.
Check before quotation: Confirm centre of gravity, ground bearing, transport dimensions, mast, tyre, fork or attachment geometry and exact working-point capacity.
Prepare the heavy-load configuration for engineering review
Connect the actual working point to load geometry, forklift type, capacity evidence and model-specific support.
Data required for a heavy-duty forklift proposal
Provide the maximum working load, centre of gravity, lift requirement, travel path and load interface.
Send the load and working-point requirements
ForkFocus can align the heavy-duty truck, mast, forks or attachment and applicable capacity evidence.
