Long-load handling with counterbalance forklifts and side loaders
Configure the handling system from the load’s true centre of gravity, support points and aisle, turning and doorway clearances. Fork length and spacing must support the load, while the truck, mast and any side-shift or fork-positioning attachment must be checked at the resulting load centre. Turning space, doorways, wind exposure, surface and load control can decide whether a standard counterbalance truck, a sideloader or another handling method is more suitable.
This guide compares standard counterbalance forklifts, side loaders and specialist handling methods for timber, steel, pipe and other long loads.

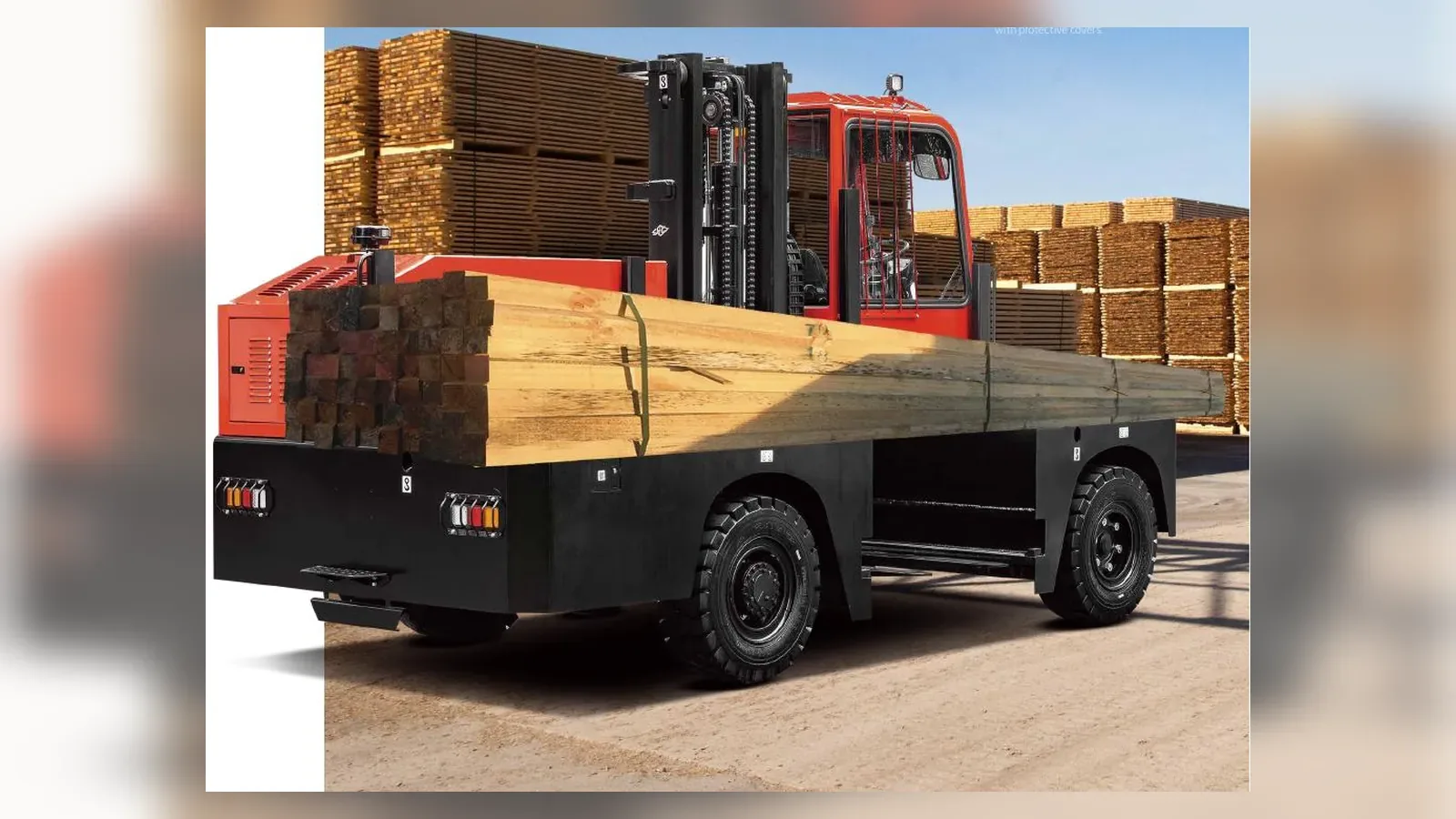

See how a sideloader changes the long-load travel envelope
This ForkFocus landscape video shows the operating geometry of a sideloader with a long load. It helps explain the equipment direction, but aisle, turning and doorway dimensions, load support and capacity at the actual centre of gravity remain project-specific. Watch this ForkFocus operation video on YouTubeload and site-clearance data that determine the handling method
How should long or awkward loads be handled with a forklift configuration?Load geometry
Length, width, height, weight, support points and centre of gravityPickup method
Under-support, fork pockets, cradles, lifting points and permissible contactFork arrangement
Fork length, thickness, spacing and load backrest requirementsTruck architecture
Counterbalance, sideloader or specialist handling directionsite clearance envelope
Aisle, intersections, doors, racks, traffic and indoor/outdoor transitionCapacity check
Actual load centre, lift height, attachment geometry and applicable load chartLoad length alone does not reveal the working load centre
A long load can be light yet demanding if its centre of gravity sits far forward or away from the truck centreline. Fork support, load stiffness and the complete turning envelope must be reviewed together.When a drawing is essential
Use a drawing or measured centre of gravity whenever the load is uneven, bundled, hollow or supported away from its geometric centre.What changes the truck decision
Fork length and spacing, side shift or fork positioning, load support and outdoor wind exposure can change both stability and turning and doorway clearance.Capacity evidence
Check the exact working load centre, lift height and attachment/fork arrangement against the applicable truck load chart.Long-load choices that change stability and turning and doorway clearance
Fork support, load centre and travel orientation determine whether a conventional truck or side loader is practical.01
Longer forks vs forward moment
Longer forks can improve support but may increase effective load centre and turning and doorway clearance.02
Side shift vs correction margin
Side shift helps placement; it is not a substitute for correct approach or adequate residual capacity.03
Compact truck vs stability
A smaller turning envelope does not automatically suit a wide or eccentric load.Long-load planning errors that create instability or blocked aisles and doorways
These omissions commonly produce the wrong fork arrangement, truck architecture or turning envelope.- Using load length as a substitute for centre-of-gravity data
- Checking straight aisles but not corners and door approaches
- Allowing unsupported overhang or uncertain load restraint
- Ignoring wind and surface effects during outdoor travel
Equipment directions for long loads
Travel orientation and aisle width and turning clearance decide whether the load should remain in front of the truck or travel along the chassis.
Long loads in constrained warehouse aisles and turning areas

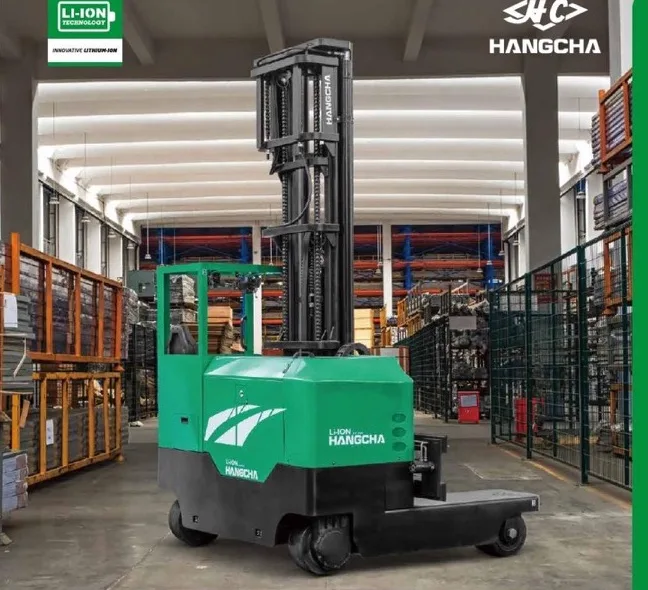

X Series multidirectional sideloaders · 3.5–4.5 t
Why this direction may fit: This direction may fit timber, pipe or steel that must travel lengthwise and change direction inside a measured warehouse site clearance. Choose another truck type when: Choose another architecture when floors are unsuitable, the load cannot be supported safely or outdoor terrain exceeds the truck design.Check before quotation: Check load drawing, support points, centre of gravity, aisle intersections, floor, lift height and working-point capacity.
View X Series multidirectional sideloaders · 3.5–4.5 t

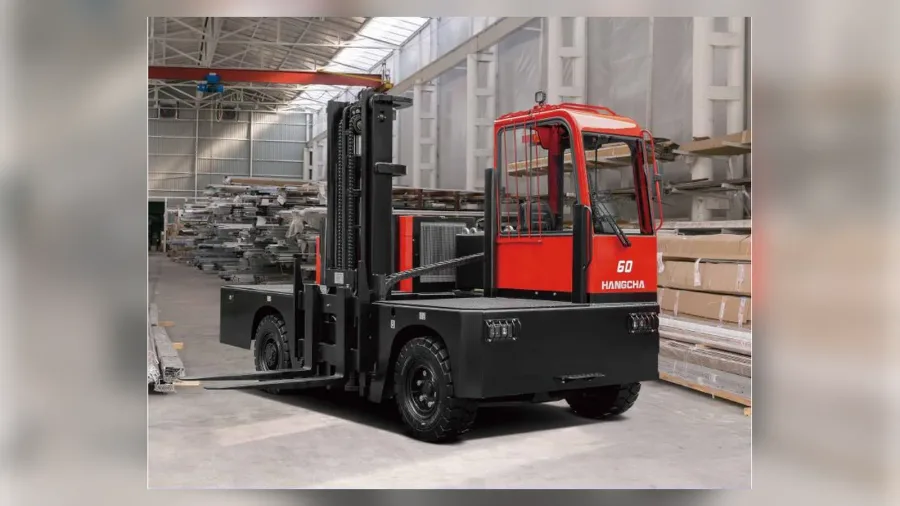

Heavier timber, steel and structural loads
Dedicated side loaders · 3.0, 5.0 and 6.0 t
Why this direction may fit: This direction may fit long material when carrying the load beside the chassis reduces the site clearance envelope of a front-loading counterbalance truck. Choose another truck type when: Choose another method when the pickup geometry, side access, platform support or aisles, turns and doorways cannot accommodate a sideloader.Check before quotation: Select from measured load distribution, platform support, lift requirement, site clearance, surface and outdoor duty—not load weight alone.
View Dedicated side loaders · 3.0, 5.0 and 6.0 tCompare long-load equipment types
Use the load geometry and measured aisle and turning clearance to compare truck types, capacity evidence, products and lifecycle support.Choose a truck directionNarrow the preliminary forklift type before exact model, mast and capacity verification.Heavy-load configurationContinue when load centre, support geometry and working-point capacity control the project.Forklift productsCompare verified ForkFocus product and category pages after the handling method is clear.Plan model-specific parts and serviceCarry the selected model, mast, battery, tyre, attachment and operating hours into the critical-parts and support plan.
Data required for a long-load handling proposal
Provide the load drawing, support points and complete aisle, turning and doorway clearances rather than length and weight alone.1Load drawing, photos and weight
2Centre of gravity or weight distribution
3Pickup orientation and support points
4aisle, turning and doorway dimensions and tightest turn
5Lift, stack and placement heights
6Indoor/outdoor duty and surface
