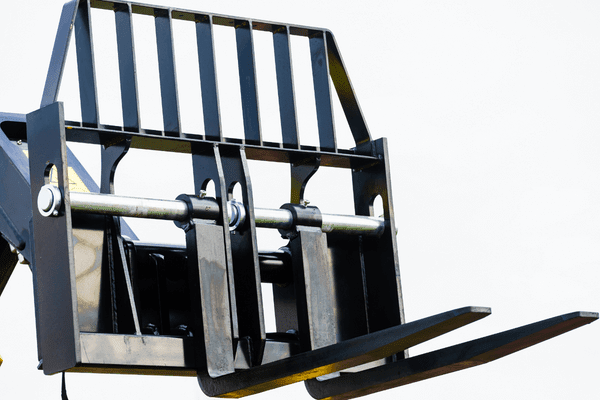

FORK POSITIONER
Fork positioner is usually used with machinery, port, ceramics, building materials, agricultural and other random loading bays, and various occasions without rules tray, by hydraulic adjusting pallet fork spacing, implement handling pallets of goods with different specs, operators do not need to manually adjust the goods fork spacing, reduce the labor intensity of operators, improve the work efficiency, reduce the tray and the breakage of the goods.
Adjust fork spacing for different pallets without repeated manual repositioning
A hydraulic fork positioner is useful when the pallet widths or fork-entry positions change during the shift. The operator can adjust the forks to the load instead of repeatedly stopping to reposition them by hand.
The purchasing question is the fork-spacing range your pallets require, together with the fork size and the forklift interface. ForkFocus can compare an attachment for an existing truck or include it with a forklift quotation.
Fork positioning and sideshift perform different jobs
Fork positioning changes the distance between the forks. Sideshift moves the fork pair sideways without changing that spacing; a positioner should not be assumed to include sideshift unless the specified arrangement provides it.
A normal fork positioner is not a clamp. Do not select it to squeeze a load between the fork blades unless the exact attachment is explicitly rated and configured for that clamping task.
| Purchase item | What to specify | Why it matters |
|---|---|---|
| Pallet range | Minimum and maximum required fork spacing, pallet width and entry direction. | Checks that the adjustment range covers the pallets you actually handle. |
| Forks and load | Fork length, section, mounting and maximum load at the actual centre. | Keeps fork suitability separate from the hydraulic adjustment function. |
| Sideshift requirement | Identify whether independent or combined sideshift is required. | Avoids paying for or omitting a function on the basis of an unclear product name. |
| Truck installation | Carriage class, auxiliary circuits, pressure, flow and hoses. | Confirms mounting and control compatibility for the chosen attachment. |
Details about FORK POSITIONER
customized fork positioner available.
Technical details
Pallet details for a fork positioner quotation
| Configuration feature | Specification |
|---|---|
| Fork-spacing adjustment | Hydraulic adjustment |
What does a fork positioner adjust?
It adjusts fork spacing hydraulically for pallets of different specifications.
Which pallet information should be sent?
Send the pallet specifications and the fork-spacing requirement.
Why describe the loading task?
Different pallet specifications and loading positions affect the adjustment required.
How is fork spacing adjusted?
Fork spacing is adjusted hydraulically.
Can a specific arrangement be requested?
Send the requirement or reference arrangement for the available customization service.
What information should accompany a parts request?
Include the attachment identification, component photograph and required quantity.
Compare Combined And Independent Sideshift
Ask which movements remain available at the required fork spacing. An attachment may provide independent sideshift or a combined arrangement whose available movement depends on the fork position. A label saying sideshift does not explain the full operating range.
| Operating Difference | Selection Consequence |
|---|---|
| Fork-spacing range | Specify inside or outside fork dimensions clearly. The same number can describe different measurements. |
| Combined or independent sideshift | Compare the available movement at the required spacing and the hydraulic controls. |
| Existing forks | Check mounting, blade section, length and individual fork capacity before reusing them. |
Apply this to the goods you actually handle. In ForkFocus experience, hydraulic fork positioning is commonly specified together with sideshift to reduce repeated approaches during final placement. That is an application preference, not a statement that every positioner includes both functions.
ForkFocus can compare these requirements with the attachment and forklift installation already described on this page. Send the photos or measurements you have. Complete technical specifications are not a first-contact requirement.
