Forklift attachment compatibility: truck fit, hydraulics and remaining capacity
Confirm the exact truck, mast, carriage, capacity evidence and hydraulic arrangement before choosing the attachment. Attachment rated capacity is a separate limit from forklift residual capacity. Weight, horizontal centre of gravity and effective thickness move the combined load forward, while mounting class, visibility, hoses and auxiliary functions determine whether it can be installed and used correctly.
This guide applies to forklift attachments including clamps, rotators, fork positioners and other carriage-mounted equipment.
See why an attachment is more than a fork replacement
This ForkFocus landscape video shows a clamp operating on a forklift. It helps explain the combined truck-and-attachment system; carriage, hydraulics, clamp range and residual capacity must still be verified for the proposed equipment.
Truck and attachment data required for compatibility
What must be checked before installing a forklift attachment?
Truck evidence
Model, rated capacity, mast, lift height and OEM load chart

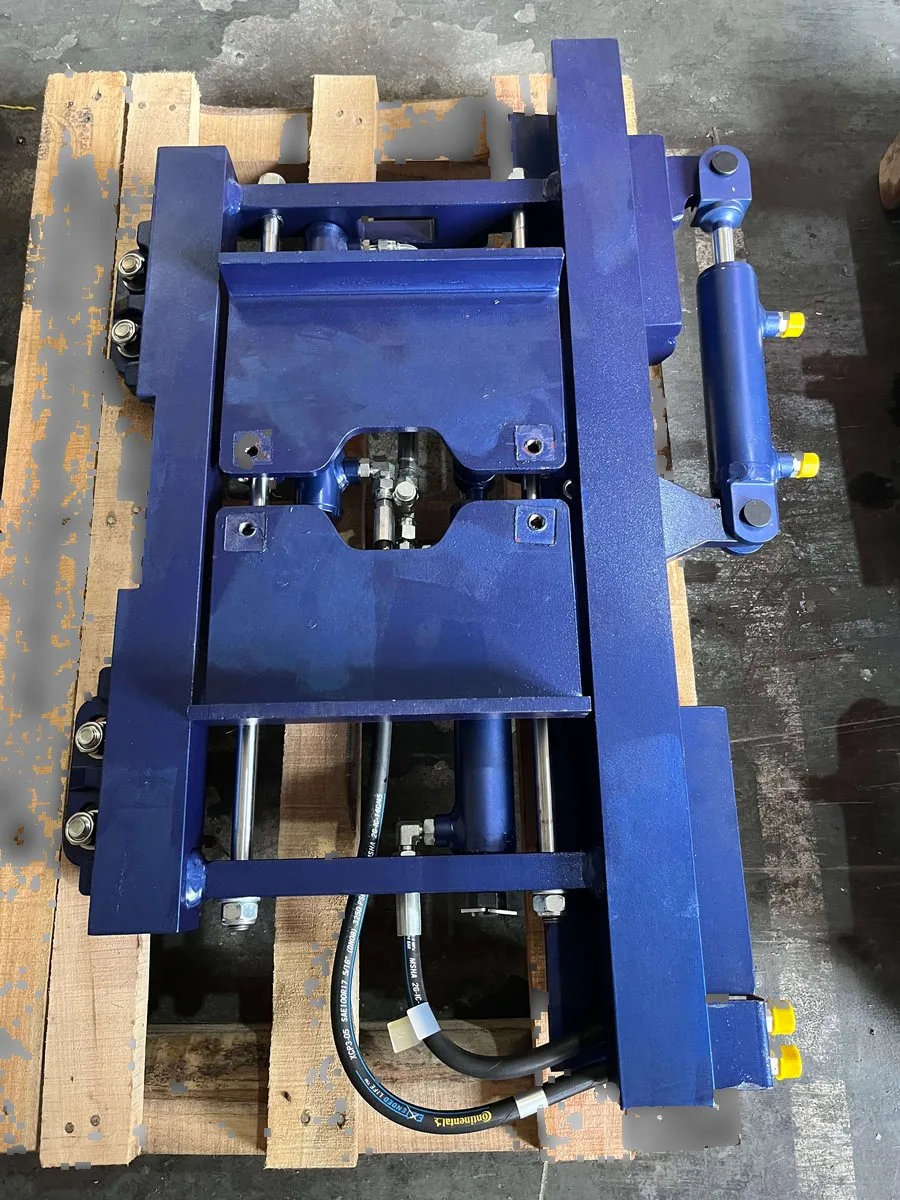

Mechanical interface
Carriage class, mounting dimensions, locking and fork/attachment geometry
Attachment data
Rated capacity, weight, HCG, ET and load-centre basis
Hydraulic interface
Required functions, pressure/flow range, valves, hoses and fittings
Combined capacity
Truck residual capacity and attachment rated capacity checked independently
Operational fit
Visibility, load backrest, overall width, travel path and maintenance access
Truck capacity and attachment capacity are separate limits
A clamp or fork positioner can be mechanically mountable and still fail the residual-capacity or hydraulic check. Conversely, a truck can retain enough capacity while the attachment itself is underrated for the load.
Two independent passes
Truck residual capacity at the working point and attachment rated capacity at its stated load centre must each satisfy the load.
What changes the combined system
Attachment weight, HCG, effective thickness, carriage, hydraulic pressure/flow and actual cargo centre of gravity all affect the result.
Evidence needed
Use the truck load chart and verified attachment data for the exact configuration; do not approve from truck tonnage or carriage class alone.
Compatibility choices that affect installation and remaining capacity
Attachment weight, geometry, carriage and hydraulics can change both installation and usable truck capacity.
Attachment capability vs truck capacity
More functions or heavier construction can increase attachment mass and forward offset.
Attachment effective thickness and frame strength
Effective thickness affects capacity, but it cannot be reduced beyond the verified attachment design.
Integrated side shift vs function count
Combination attachments may change hydraulic and control requirements.
Attachment-matching errors that create mechanical or capacity conflicts
Truck tonnage and carriage class alone do not prove that an attachment can be used safely.
- Matching only by truck tonnage
- Assuming carriage class confirms hydraulic compatibility
- Using attachment rated capacity as truck capacity
- Proceeding without verified HCG/ET or a truck load chart
Discuss the forklift and attachment
Send load photographs, the required movement and any available forklift details.
Request an attachment quotationForklift types for attachment-equipped work
These forklift types do not prove attachment compatibility. Mechanical fit, hydraulic fit and residual-capacity fit must each pass before an electric or IC truck family can be narrowed to a model.

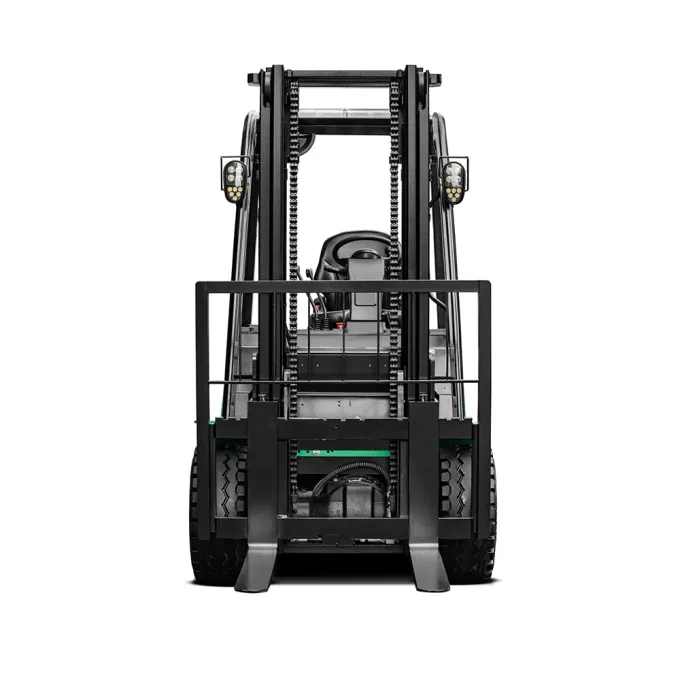

Indoor attachment work with planned charging
XC lithium counterbalance forklifts · 1.5–3.8 t
Suitable operating conditions: An electric counterbalance forklift may suit indoor clamp, rotator or fork-positioner work when charging and the required auxiliary hydraulics can be configured together.
Consider another option when: Choose another truck or attachment combination when carriage, valve count, pressure, flow, mast hose layout or retained capacity cannot be verified.
Check before quotation: Match carriage, valve sections, pressure, flow, attachment rated load, weight, HCG, ET, cargo centre and residual capacity.

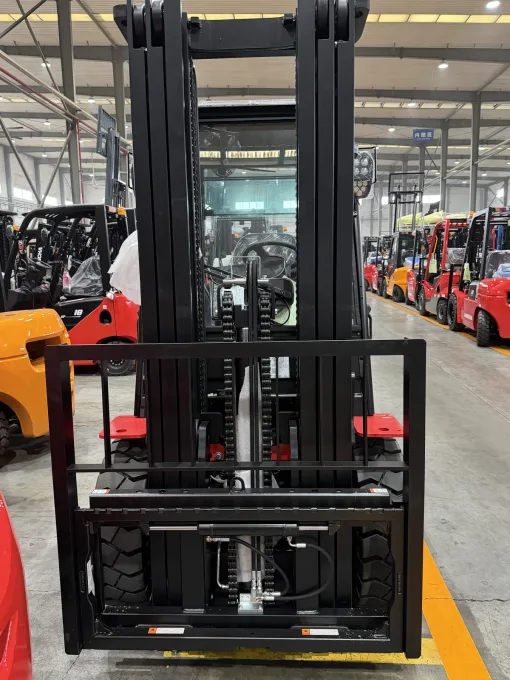

Mixed indoor–outdoor attachment duty
X Series IC counterbalance forklifts · 1.5–3.8 t
Suitable operating conditions: An IC counterbalance forklift may suit yard or factory attachment work where ventilation, refuelling and IC maintenance support are acceptable.
Consider another option when: Choose another truck type when emission limits, travel path access or the mechanical, hydraulic or capacity checks do not pass.
Check before quotation: Check truck working-point capacity and attachment rated capacity independently, then confirm carriage, weight, HCG, ET, pressure, flow and controls.
Complete the attachment installation check
Check residual capacity, auxiliary hydraulics, carriage fit and the attachment service requirements before installation.
Data required for an attachment compatibility review
Provide the exact truck, mast, load chart, attachment task, interface and hydraulic requirements.
Send the truck nameplate, mast and attachment requirement
ForkFocus can review mechanical fit, hydraulics, attachment rating and truck residual capacity separately.
