Palletless Slip-Sheet Handling with a Push-Pull Attachment
A push-pull project succeeds only when the slip sheet, load base, pull tab, unitisation and receiving process work together. Verify tab material and position, load weight and rigidity, platen entry, push and pull sequence, container or rack interface, forklift carriage, hydraulics, floor and actual load centre before replacing pallets.
The ForkFocus push-pull attachment covers the attachment function, but the attachment is only one part of a palletless system. An electric counterbalance forklift may suit a clean dock or warehouse travel path when platen entry, hydraulic functions, clearance along the full travel path and attachment-adjusted capacity all pass.
If the goods must move to a different pallet or support, compare truck-mounted Push-Pull with a fixed load-transfer station before choosing the equipment.
This ForkFocus video shows a push-pull attachment engaging and moving a slip-sheet load. It makes the pull-tab, platen and push-pull movement easier to understand; slip-sheet strength, unit-load rigidity, receiving interface, hydraulics and residual capacity still require project-specific verification.
Watch this ForkFocus video on YouTubeVerify both ends of the slip-sheet process
Slip-sheet material, tab geometry, load stability, platen entry, push-pull cycle and receiving-site capability can make an apparently simple pallet-removal project fail.
Slip sheet
Material, thickness, size, tab position, tab strength, flatness and condition.
Unit load
Weight, base friction, rigidity, packaging, overhang and resistance to pushing.
Cycle interface
Pickup surface, receiving platen or pallet, container/rack geometry and release sequence.
Attachment
Platen, gripper, faceplate, push stroke, pull stroke, weight and forward offset.
Truck and site
Carriage, mast, valve functions, floor flatness, aisle, door, power and tyres.
Capacity
Truck chart at actual lift height and system load centre with attachment installed.
Check slip-sheet pull tabs, load transfer and receiver compatibility
The shipping-side attachment cannot compensate for a weak tab, unstable base or receiving point that lacks a compatible platen, pallet or push-off process.
Slip-sheet sample
Confirm material, thickness, flatness, tab position and pull strength.
Unit-load base
Check rigidity, friction, overhang, packaging and resistance to pushing.
Receiving method
Define the destination platen, pallet or push-off surface and release sequence.
Attachment cycle
Verify gripper, platen, push/pull stroke, weight, offset and hydraulic functions.
Forklift type
Check carriage, mast, floor, door, container, aisle, power and tyres.
Working point
Use the exact lift height and system load centre with the attachment installed.
Removing pallets transfers control to the interface
Shipping density can improve, but slip-sheet consistency, platen entry, load rigidity and receiver readiness become controlled operating requirements.
Less pallet volume
Can reduce pallet dependence, but creates a strict slip-sheet and receiving-interface requirement.
Long platen
Supports the load base but affects approach, clearance along the full travel path and effective load centre.
Fast hydraulic movement
Can shorten the cycle only when the load stays stable and control remains precise.
Palletless process gaps that stop the cycle
- Confirming only the shipping site and not the receiver
- Ignoring damaged or inconsistent pull tabs
- Assuming every load base will slide over the platen
- Calculating capacity from nominal truck tonnage
Push-pull attachments and forklifts for slip-sheet handling
Use a push-pull attachment when the tab and receiving method are proven; consider an electric counterbalance forklift only when the forward platen geometry and dock duty pass.

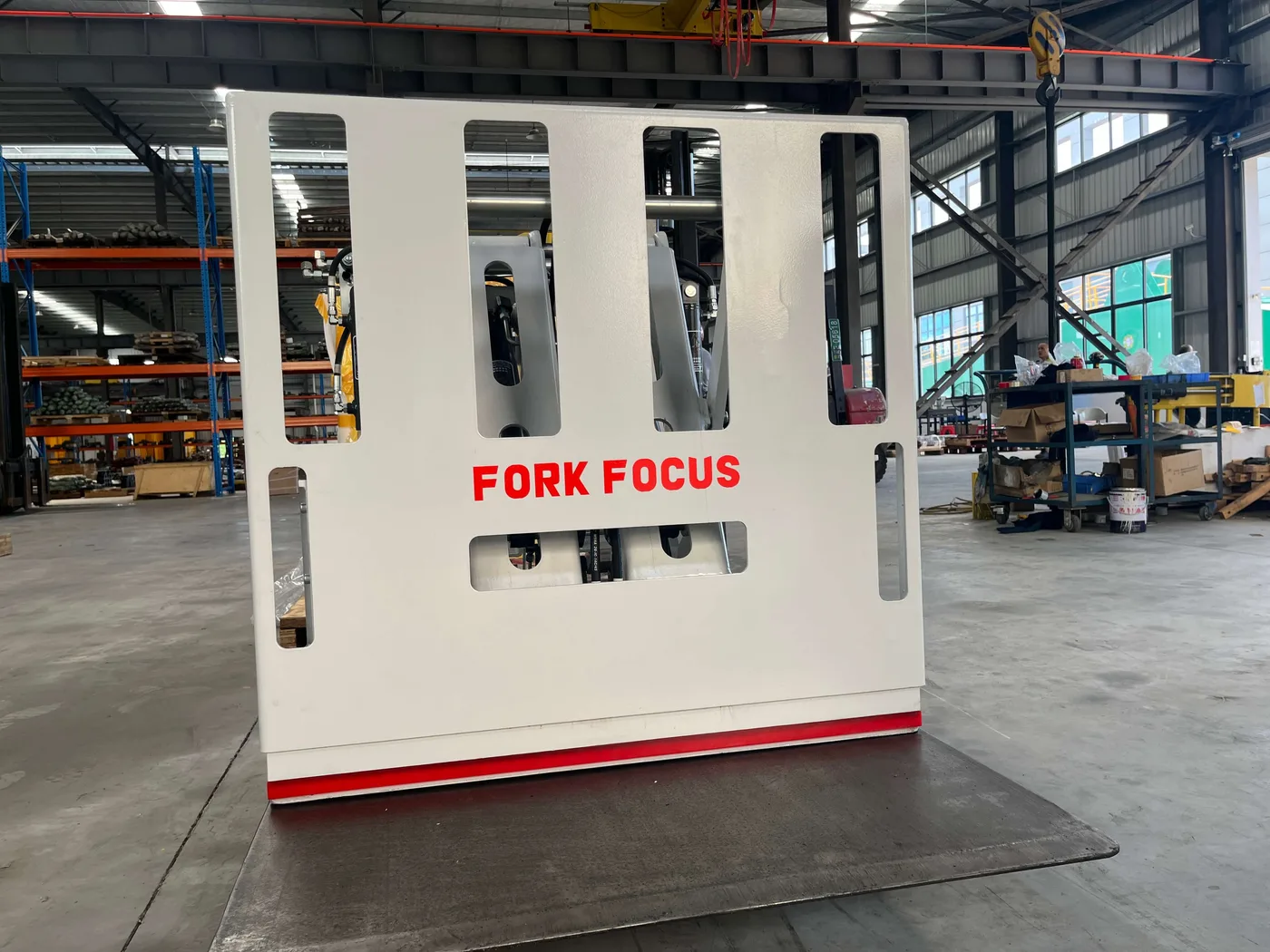

Push-pull attachment
Suitable operating conditions: May fit stable unit loads with consistent pull tabs and a receiving process prepared for slip sheets.
Consider another option when: Retain pallets or use another attachment when tabs, base friction, load rigidity or receiver equipment cannot support the cycle.
Check before quotation: Slip-sheet sample, tab dimensions, unit-load drawing, platen, gripper, stroke and hydraulic data.

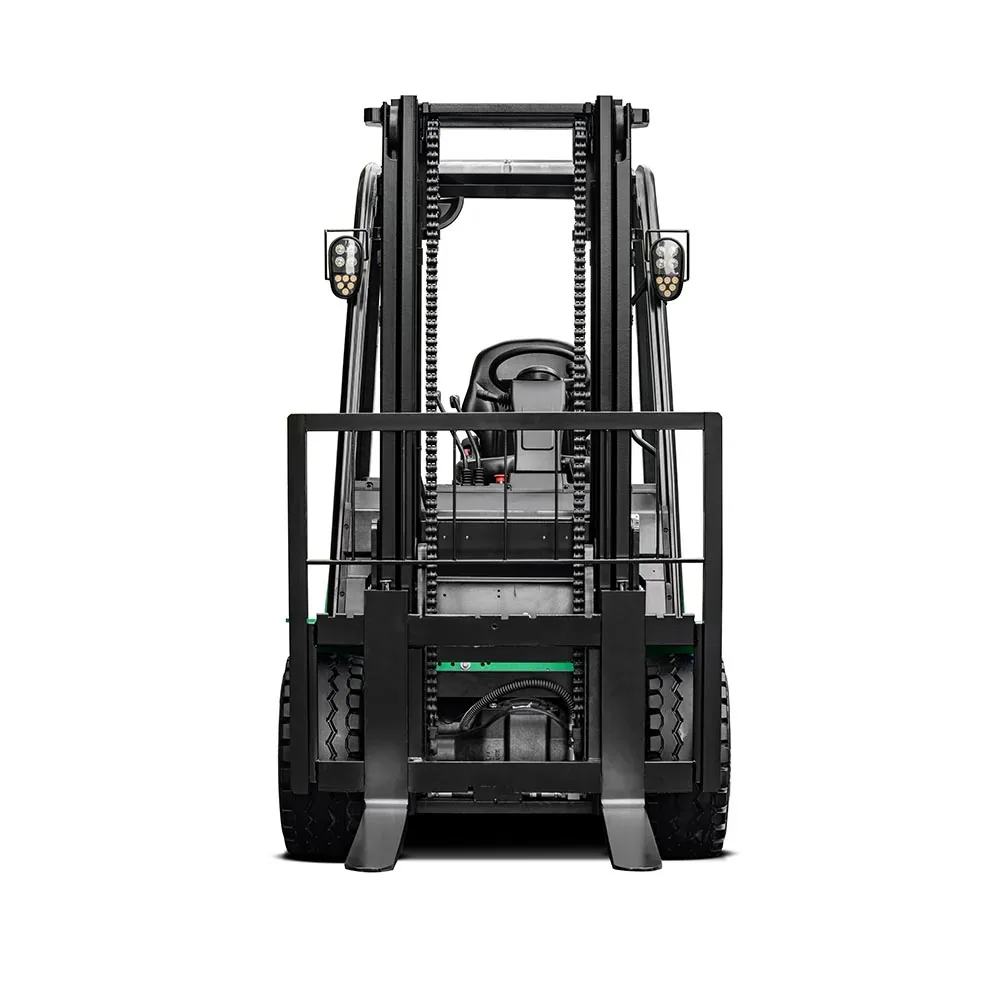

Electric counterbalance forklift
Suitable operating conditions: May fit clean dock, container and warehouse transfer when the truck can carry the forward attachment geometry through the travel path.
Consider another option when: Review an IC truck, warehouse specialist or another process when charging, aisle, pallet interface, ramps or travel pattern make an electric counterbalance forklift unsuitable.
Check before quotation: Carriage, mast, door, floor, travel path, battery duty, valve count, load chart and residual capacity.
Protect the gripper, platen and slip-sheet contact surfaces
The maintenance scope should cover gripper wear, platen flatness, slide surfaces, faceplate movement, hose layout and the incoming quality check for slip sheets and tabs.
- Gripper edge and pull-tab engagement inspection
- Platen flatness, surface damage and slide lubrication
- Slip-sheet incoming check and receiver-process audit
Include gripper edges, platen flatness, slides, cylinders, hoses and seals in the commissioning and spare-parts package. Review the relevant ForkFocus lifecycle support.
Evidence required at the shipper and receiver
Final compatibility requires an approved slip-sheet sample or specification, load-base evidence, the receiving sequence, attachment drawing, truck hydraulic data and exact working-point capacity.
Review the attachment interface before installationSend Your Slip-Sheet and Load Data
Provide the following data so the quotation can state the truck, mast, power, tyre, attachment, capacity-verification and support scope without guessing.
Send these details to ForkFocusIf the truck type is not yet fixed, use the Forklift Selection Advisor for a preliminary forklift specification, then return with the exact mast, load chart and attachment configuration.
- Slip-sheet drawing, material and tab details
- Load weight, dimensions and base construction
- Photographs of pickup and receiving points
- Container, rack or pallet interface
- Required pull, push and release sequence
- Lift height, floor and travel path geometry
- Truck, carriage, mast and hydraulics
- Cycles, shifts and wear-part requirement
Questions about slip sheets and receiving equipment
Can a strong pull tab make any unit load suitable?
No. The load base must remain stable over the platen and through acceleration, turns, stacking and the receiver hand-off.
Must the receiving site use another push-pull attachment?
Not always, but it needs a confirmed compatible method such as a platen, pallet or push-off interface that can receive and release the load.
What sample should be approved before shipment?
Approve the actual slip-sheet material, tab dimensions and representative unit-load base together with the complete push and pull sequence.
Slip-sheet handling depends on the sheet, load base and floor friction
The push-pull attachment must grip the sheet tab, transfer the unit load and release it without destabilising the package or damaging the sheet.
- Handling problem
- Record load weight, dimensions, packaging, sheet material, tab size and whether the load is received or shipped palletless.
- Attachment
- Confirm gripper-bar range, platen dimensions, push/pull stroke, faceplate, attachment weight and centre of gravity.
- Forklift
- Match carriage, mast, visibility, travel path, truck capacity and electric or IC duty to the application.
- Hydraulics
- Verify function count, pressure, flow, fittings, hose layout and controlled grip/release movement.
- Capacity
- Check the truck at the actual load centre and height with the push-pull installed.
- Load trial
- Test representative sheets, damaged tabs, floor or pallet surfaces and release accuracy.
push-pull attachment product range
The product range identifies the attachment family, while sheet and package dimensions determine the working configuration.
electric forklift range: Indoor shipping and production work often suit electric counterbalance trucks after capacity and interface verification.
Provide a slip-sheet sample or drawing and a representative unit-load photo so the gripper and platen can be checked.
