Choose counterbalance forklifts, reach trucks, stackers and pallet trucks by task
Map pallet flow from receiving to storage, replenishment, picking and dispatch. Travel distance, aisle and rack geometry, lift height, load, throughput, floor, dock transitions and operator pattern determine where counterbalance forklifts, reach trucks, stackers, pallet trucks or tow solutions belong. One warehouse may need several equipment roles connected by a clear hand-off process.
This guide assigns roles to counterbalance forklifts, reach trucks, stackers and pallet trucks within one warehouse flow.
Watch a reach truck in real warehouse operation
This ForkFocus landscape video shows a reach truck working in a warehouse route. It provides operating context for rack and aisle decisions; equipment roles still depend on the complete material flow, load and site measurements.
Warehouse-flow data that determine each equipment role
How should a warehouse choose between counterbalance forklifts, reach trucks, stackers and pallet trucks?
Receiving and dispatch
Vehicle access, dock work, outdoor transitions and staging congestion
Horizontal transport
Travel distance, pallet flow, pedestrian interface and throughput peaks
Put-away and retrieval
Aisle, rack beam, lift height, load dimensions and residual capacity
Ground-level handling
Pallet condition, floor, gradients and need for powered pallet movement
Energy and shifts
Charging/refuelling, utilisation, traffic, maintenance and operator allocation
System hand-offs
Where loads transfer between counterbalance, reach, stacker, pallet or tow equipment
One warehouse can require several equipment roles
Receiving, long horizontal travel, high-rack put-away and floor-level pallet movement impose different constraints. Forcing one truck type across all tasks can move a bottleneck instead of removing it.
Map hand-offs and peak flow
Define where the load changes equipment and where queues form before choosing individual trucks.
What changes the equipment mix
Dock transitions, aisle and rack geometry, travel distance, throughput, pallet condition and energy windows can assign different roles to counterbalance, reach, stacker and pallet equipment.
Role-by-role verification
Check each role against measured route geometry, lift-height capacity, duty cycle and site constraints before final fleet quantities are set.
Equipment-role choices that shape warehouse throughput
Storage density, travel, docks, pallet condition and peak flow determine where each truck type belongs.
Narrow aisles vs flexibility
Denser storage can require more specialised equipment and tighter floor/rack control.
High-lift capability vs mixed routes
A reach truck may serve racking well but not every dock, yard or damaged-floor task.
Low equipment count vs bottlenecks
Combining roles can reduce fleet size but create dependence on one machine at peak times.
Warehouse-equipment errors that move rather than remove bottlenecks
Rack height alone cannot define receiving, transport, put-away, picking and dispatch equipment.
- Choosing equipment from rack height alone
- Using counterbalance trucks for every internal movement
- Ignoring pallet quality and floor transitions
- Separating fleet selection from throughput and labour planning
Match each warehouse task to an equipment route
Receiving, horizontal transport, put-away, rack retrieval, picking, replenishment and dispatch can require different machines. These routes form an equipment system rather than three competing products.
Dock, receiving and flexible pallet handling

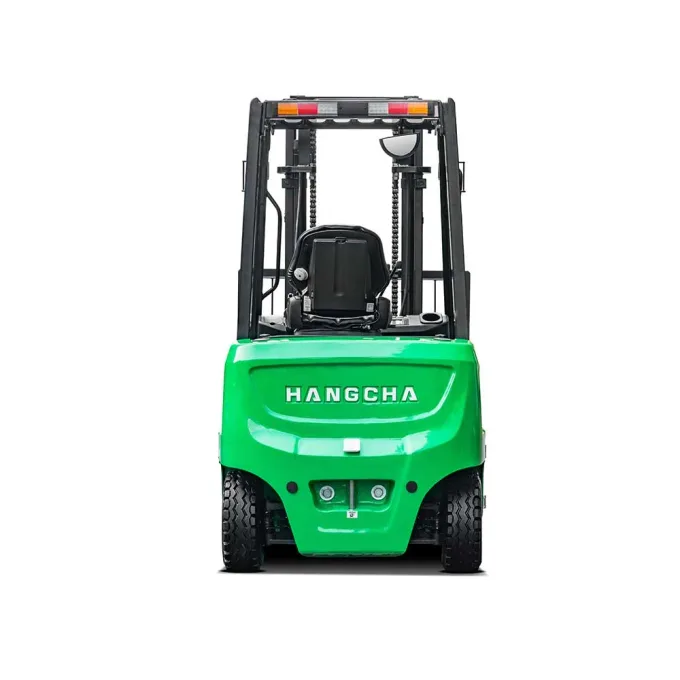

XC lithium counterbalance forklifts · 1.5–3.8 t
Why this direction may fit: This direction may fit dock, staging, production transfer and occasional smooth outdoor routes that require flexible front-loading access.
Choose another route when: Choose another equipment role when narrow aisles, high racks or long horizontal travel make the counterbalance truck inefficient.
Check before quotation: Check load, turning space, door height, dock approach, load centre, lift height, tyre, charging and hourly throughput.
View XC lithium counterbalance forklifts · 1.5–3.8 t
High racking and narrower aisles

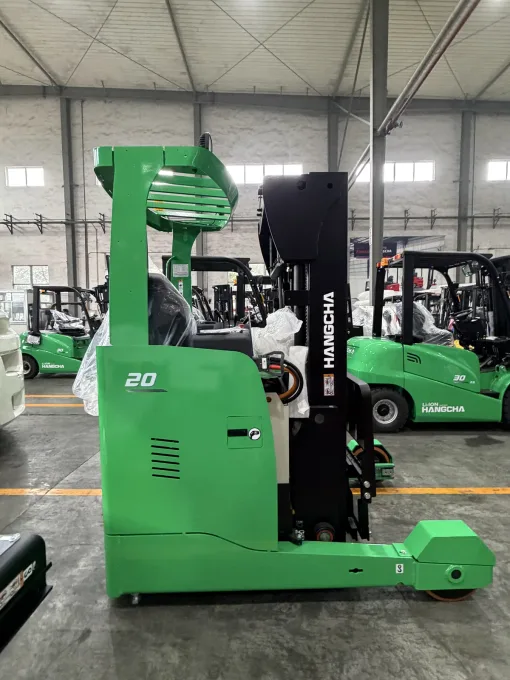

Reach trucks · 1.0–2.5 t standard routes
Why this direction may fit: This direction may fit pallet put-away and retrieval where level floors, rack geometry and storage density support a specialist reach chassis.
Choose another route when: Choose another route for rough surfaces, general yard work, incompatible pallets or dock duties outside the reach-truck design.
Check before quotation: Match pallet, top storage level, aisle, transfer aisle, reach stroke, floor, lift height and residual capacity.
View Reach trucks · 1.0–2.5 t standard routes
Floor transport, replenishment and lighter stacking

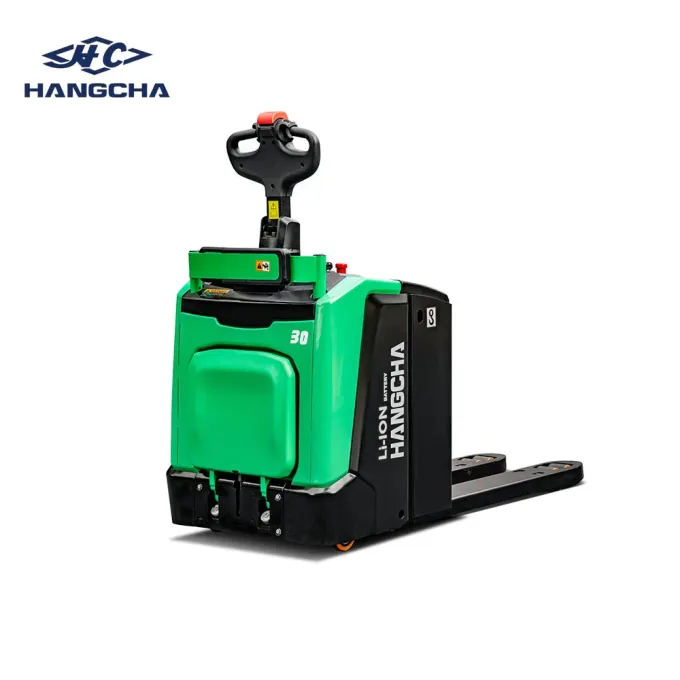

Pallet trucks and electric stackers
Why this direction may fit: Pallet trucks may fit horizontal movement, while stackers add pallet lifting where pallet-entry geometry and lower-throughput stacking suit the route.
Choose another route when: Choose another equipment class when closed pallets, long distances, ramps, high throughput or load and lift requirements exceed these machines.
Check before quotation: Check travel distance, pallet opening, lift height, ramp use, operator position, hand-off points and peak hourly flow.
View Pallet trucks and electric stackers
Match each warehouse task to the right equipment
Compare aisle, rack, pallet-flow and truck-role evidence before fixing the warehouse equipment mix.
Data required for a warehouse equipment proposal
Provide the material-flow map, peak volume, pallet range, route geometry and current bottlenecks.
Send the warehouse flow and route measurements
ForkFocus can assign equipment roles and hand-off points before individual truck quantities are selected.
