bale clamp

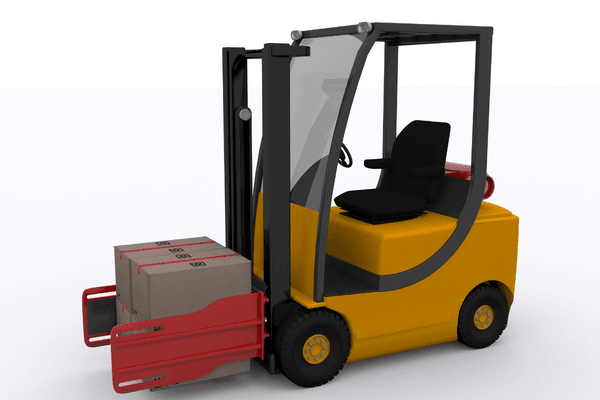

Bale clamp can lift the goods directly from both sides to realize pallet-free handling.
It is an efficient and economical forklift attachment. Suitable for handling all kinds of flexible packaging products, such as cotton, wool, chemical fiber, rag, tobacco, paper, food and many other industries of pallet-free
handling and stacking operations.
This attachment has the advantages of stable operation, high efficiency, easy maintenance and low price.
Details about bale clamp
- The steel structure frame of the bale clamp can be used with high strength ensuring the needs of users of high intensity operations.
- It’s slides also has a self-lubricating function with a firm and reliable installation.
- For great views, it has a very good layout structure.
- A very high quality T-shaped rod and aluminium alloy are used for longer duration.
- In addition, the valve body administer the side movement facilitating a great operation.
Compare Loose, Dense And Wrapped Bales
More clamping pressure cannot compensate for an unsuitable contact face. A soft bale can compress or change shape before enough retention develops.
A tightly bound bale can present harder edges, loose material or slippery wrapping. These require a different contact assessment.
| Operating Difference | Selection Consequence |
|---|---|
| Loose or irregular bale | Review how the arms contact the complete bale and whether material can escape between the arms. |
| Dense or wrapped bale | Identify friction, binding-wire positions and any unacceptable tearing or marking. |
| More than one bale | Show the complete stacking and pickup arrangement. A rating for one bale does not establish retention of every layer. |
Apply this to the goods you actually handle. Consider rotation only when the process needs reorientation or discharge. A fixed bale clamp should not be assumed to rotate, and extra functions can change attachment mass, forward offset and hydraulic requirements.
ForkFocus can compare these requirements with the attachment and forklift installation already described on this page. Send the photos or measurements you have. Complete technical specifications are not a first-contact requirement.
Technical details
Customized bale clamp attachment available. Just tell us your specific requirement, or give us the sample model information. We will tailor made that.
typical industry
- Cotton industry；
- Wool;
- Textile;
- Chemical fiber;
- Rag,
- Tobacco;
- Waste paper;
- And many other forms of soft bags.
Three basic information provided for a correct quote:
- Forklift load capacity;
- Cargo weight;
- Other special request if needed.
Bale density and surface decide the clamp configuration
Opening range, arm shape and contact pressure must match the bale while the forklift retains sufficient capacity and ground suitability.
- Bale data
- Record material, dimensions, maximum weight, density and wrapping.
- Clamp
- Confirm opening range, arm profile, contact surface and pressure control.
- Forklift
- Match ground, tyres, mast, visibility and duty cycle.
- Interface
- Verify carriage, hydraulics, hydraulic hose layout and residual capacity.

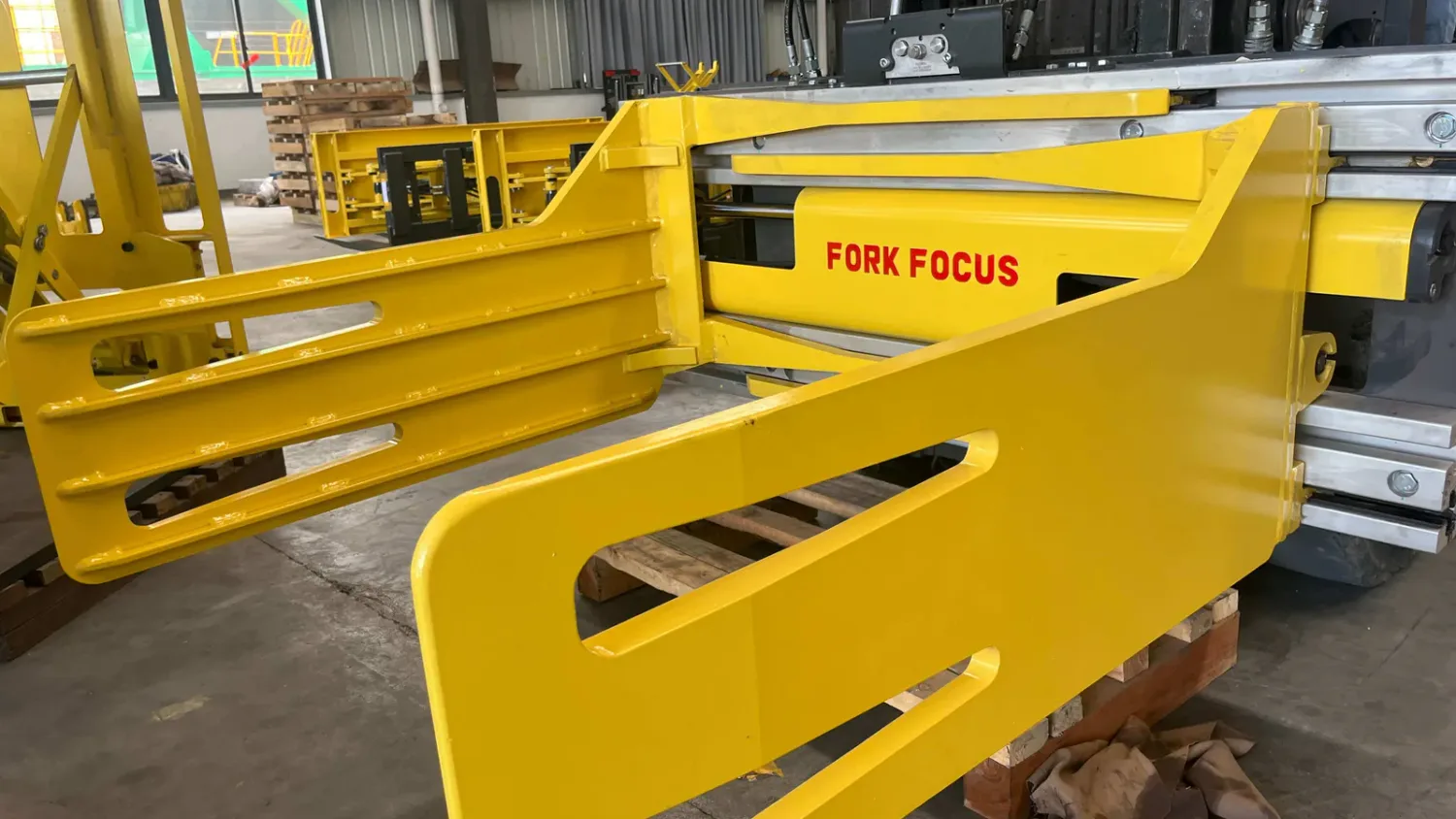

Bale clamp and forklift configured together
The clamp must hold the bale without unacceptable damage or slip, while the truck remains suitable for the site and working point.
Bale tests, hydraulic settings, attachment fit and working-point residual capacity still require confirmation.
Review the bale clamp product page with the truck interface and working-point data.
IC forklift range
An IC forklift can suit outdoor bale yards and longer demanding shifts; indoor clean operations may instead require an electric truck with the same capacity, hydraulic and carriage checks.
