FORKFOCUS monta cargas

load stabilizer

The Load Stabilizer is widely used in food, beverage, import and export trade, etc., mainly used to stabilize the goods on the pallet, avoid the goods slipping in the handling process, especially suitable for the handling and stacking of fragile goods.

Add top restraint only when the package can tolerate the contact

A load stabilizer can help control movement of a tall or unstable palletized load during handling. The forks still carry the goods; the upper contact arrangement must suit the top surface and the package construction.

For beverage cases and other fragile packages, ForkFocus can review the load height, top contact area and existing forklift before proposing an arrangement. The objective is controlled handling without making the upper tiers the weak point.

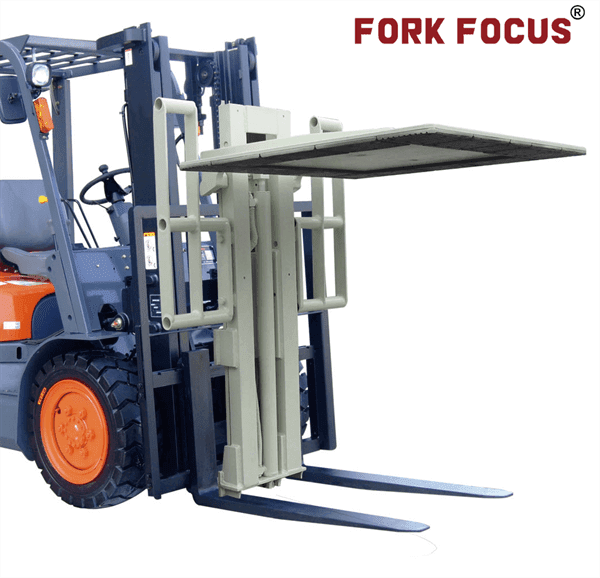

Forklift attachment with upper load stabilizing plate
ForkFocus load stabilizer product image. The top contact arrangement must suit the package and its allowable compression.

Review the top surface and the pallet base together

A flat, supported upper surface presents a different contact condition from an uneven top tier or exposed product. Show both the highest load and the lowest load that must be handled, together with the pallet and any wrapping.

A stabilizer does not replace a sound pallet, stable load assembly or suitable travel practice. Review floor joints, braking, turns and overhead clearance with the load in the actual handling position.

Checks for a load stabilizer quotation
Purchase itemWhat to specifyWhy it matters
Package contactTop surface, permitted compression and maximum or minimum load height.Checks contact suitability across the load assortment.
Fork and truck capacityLoad weight, fork rating and the stabilizer’s applied load.The support system must carry the load and any additional imposed force.
Working clearanceMast height, stabilizer projection, doors and operator view.Checks handling access beyond the nominal pallet footprint.
Hydraulic controlRequired function, pressure regulation, supply and connections.Allows contact force and movement to be reviewed for the exact installation.

Details about load stabilizer

Load-stabiliser
  • The load stabiliser also has a self-lubricating fuction which is intalled firmly and reliably ensurig the smooth movement of the forklift.
  • The increased structural design of the carton clamp makes an excellent view, with the T-shaped sliding pair acquring a very high strenght and uniform stress.

Technical details

Customized load stabilizer attachment  available.

Just tell us your specific requirement, or give us the sample model information. We will tailor made that.

typical industry

  • Beverage industry;
  • Warehouse.

Three basic information provided for a correct quote:

  1. Forklift load capacity;
  2. Cargo weight;
  3. Other special request if needed.



Load stabilisation begins with the package and path

A stabilizer can limit load movement, but it must apply the correct contact pressure without damaging the goods or blocking visibility.

Package
Record load height, top surface, fragility and allowable contact pressure.
Travel path
Review floor joints, ramps, speed, turns and braking events.
Hydraulics
Confirm the required function, pressure control, flow and hose arrangement.
Capacity
Account for attachment weight and forward centre of gravity at the working height.
Forklift
Verify carriage, mast, visibility, overhead clearance and tyre choice.
Lifecycle
Inspect contact pads, hoses, seals, pivots and retention points; prepare duty-relevant wear parts.

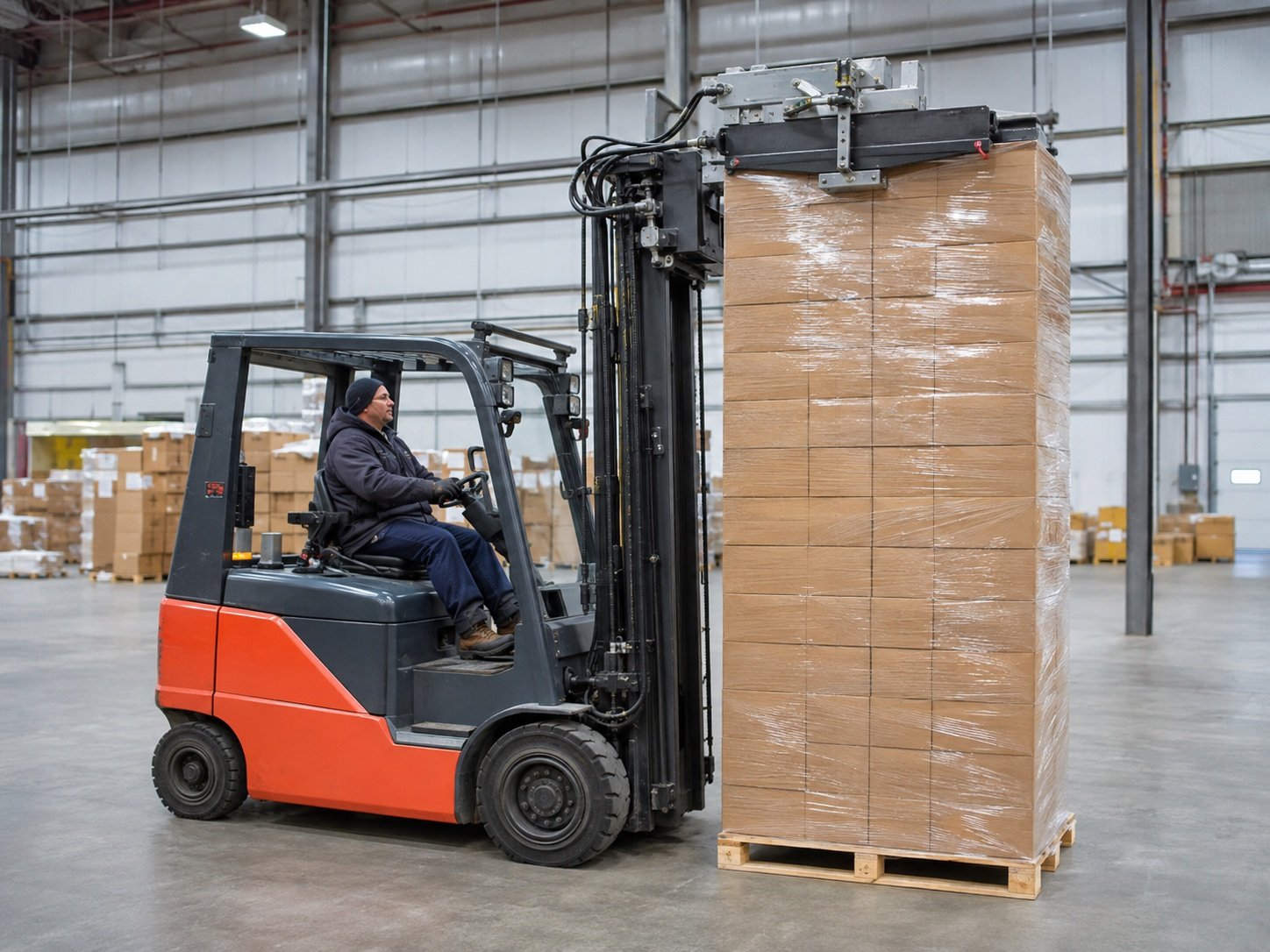

Counterbalance forklift with a matched load stabilizer
A load stabilizer restraining the top of a tall load without replacing the need for load and path checks.

Counterbalance forklift with a matched load stabilizer

Suitable for tall or unstable loads that need controlled top restraint during travel. It is not appropriate when the upper package surface cannot tolerate contact or the load lacks a stable base.

Contact pressure, package strength, carriage, hydraulics and residual capacity must be confirmed for the actual load.

Compare the available options on the forklift attachment range, then confirm the remaining working data.

Complete the stabilizer installation and service plan

ForkFocus can review the stabilizer as part of the complete truck

Compare a suitable electric forklift for indoor beverage work or an IC forklift where outdoor duty fits. Either choice needs carriage, hydraulic and working-point residual-capacity verification with the stabilizer fitted.

Send a complete load photo and a close-up of its top surface. We can review the contact arrangement and identify the pads, pivots, seals and hoses to keep in the service record.

Can it compensate for a damaged pallet or loose load?

No. The pallet, packaging and load assembly must be suitable before top restraint is considered. Describe any existing damage or load movement during the enquiry.

What if the load is taller than expected?

Recheck the stabilizer travel, overhead clearance, operator view and truck capacity for that load. Do not assume the previous setting covers a different package height.
