Rotator

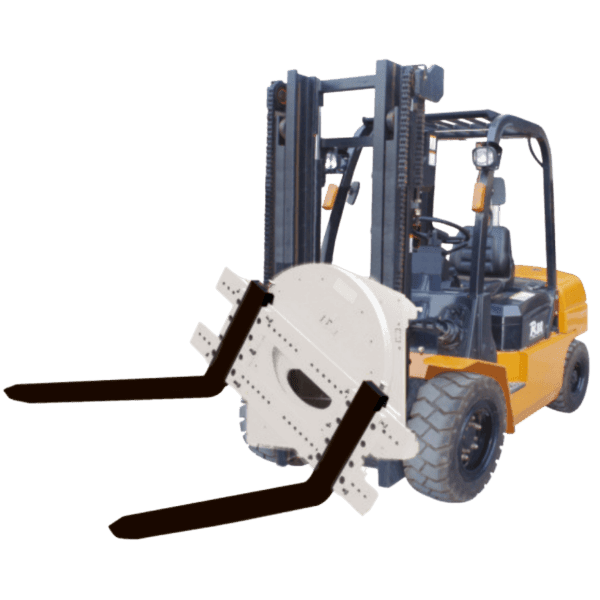

The Forklift Rotator Attachment is for handling materials that need to be dumped or rotated.
The Forklift Rotator offers 360 rotation, which offers movement in any direction.
With this attachment, the operator can efficiently rotate loads for dumping and tipping.
The rotator is particularly popular in different industries like manufacturing, automotive, agricultural, recycling, and plastic for its function.
Details about Rotator
- For the good view and convenience of insertion and removal of goods, the central window design is adopted, the reducer abd hydraulic motor assmbly are hidden at the back of the rear hanging plate.
- Likewise, on the hydraulic motor, a two way hydraulic lock is installed with effect of a positive and negative rotation, self-locking at each angle and 360 rotation easy and safe.
- The rotator has a stable operation of torgue motor meeting the high intensity continous opertaion.
Techical details
Customized rotator forklift service available. Just tell us your specific requirement, or give us the sample model information. We will tailor made that.
typical industries
- Automotive industry；
- Agricultural Industry；
- Factory;
- Recycling;
- Plastic for its function.
A rotator changes more than the load motion
Rotation introduces attachment weight, forward centre of gravity, hydraulic demand and load-containment questions that must be checked against the selected forklift.
- Load retention
- Confirm the bin, fork pocket, locking method and permissible rotation angle.
- Hydraulic demand
- Check pressure, flow, hose routing and the required auxiliary function.
- Residual capacity
- Verify capacity at the real lift height and load centre with the installed rotator.
- Forklift fit
- Confirm carriage class, mast, visibility, stability and operating route.
- Service plan
- Identify seals, hoses, bearings and other wear items for the duty cycle.
Counterbalance forklift with matched rotator
Suitable for controlled bin dumping and load inversion when the container is compatible with the forks or locking arrangement. It is unsuitable where the load cannot be positively retained during rotation.
Rotation angle, load retention, carriage, hydraulics, mast and working-point residual capacity remain mandatory checks.
Compare the available options on the forklift rotator solution guide, then confirm the remaining working data.
Verify the rotator and truck as one installation
Information for a forklift rotator quotation
| Configuration feature | Specification |
|---|---|
| Rotation | 360° |
What will be rotated?
Describe the load or container and how it must be emptied or turned.
Can a 360° rotator be selected from the rotation angle alone?
The load must also be retained during rotation. Provide the container, fork-pocket and locking details.
Which forklift information is needed?
Send the truck nameplate, carriage details, mast and required lift height for the installed-capacity check.
Which hydraulic details should be supplied?
Confirm pressure, flow, hose arrangement and the required auxiliary function.
Does the truck’s rated capacity settle the selection?
No. Capacity must be checked at the real lift height and load centre with the rotator fitted.
What helps identify a replacement part?
Send the attachment identification and a clear photograph of the component before ordering.
