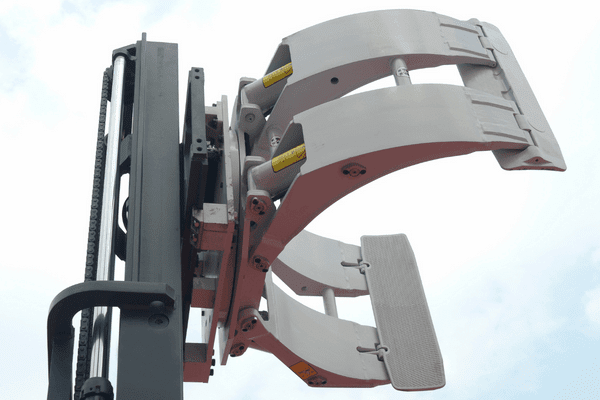

Paper roll clamp
The Paper Roll Clamps is designed specifically for damage-free roll handling.
The various types of clamps can handle rolls of different paper types, diameters, size and weight without any pallet involved.
It is made from steel and can handle up to 2000KG weight and a roll range of 350-1600mm.
It is very useful in paper handling industry, warehouse and factories.
Compare the roll combinations your clamp must cover
Your smallest roll, heaviest roll and most damage-sensitive paper may be three different loads. Keep these examples separate in the enquiry so one convenient diameter does not hide another operating requirement.
ForkFocus can compare those combinations with the pad and truck checks already detailed on this page. The aim is one clearly specified roll assortment, rather than a quotation assembled from unrelated maximum values.
| Purchase item | What to specify | Why it matters |
|---|---|---|
| Smallest roll | Diameter, axial width and the space between adjacent rolls. | Checks arm closure and access. |
| Heaviest pickup | Individual roll weights, number of rolls and orientation. | Checks clamp rating and installed truck capacity. |
| Most sensitive surface | Paper grade, wrapping and allowable marking. | Checks the required pad contact and handling assessment. |
Details about Paper roll clamp
- The paper roll clamp meets the high intensity continuous uses by having a much higher strength,structural design, long life and stable operation ensure the accuracy of the paper roll’s operation.
- it has a split arm design with a good operational vision. ( usually the small opening range paper roll clamp needs it with moveable short arm to support.
- To avoid destroying the surface of the adjoining paper roll and easy wedging of the slim space of tightly stacking, the arm clamping and arm tip thickened is smooth and small respectively.
- To extend the duration of the lubricating brush, filling the lubricate oil is needed regularly moreover a much higher strength self lubricating support is used at the hinged of the clamp arm.
- The paper roll clamp’s oil cylinder is rigged with a detection oil port which aids the detection and maintenance of equipment failures.
Technical details
Customized paper roll clamp attachment available.
Just tell us your specific requirement, or give us the sample model information. We will tailor made that.
typical industry
- Paper handling industry；
- Factories;
- Warehouse.
Three basic information provided for a correct quote:
- Forklift load capacity;
- Cargo weight;
- Other special request if needed.
Paper roll, forklift and hydraulics: three essential checks
Match the clamp to the paper roll. Verify the forklift with the clamp fitted. Confirm that the auxiliary hydraulics operate every required attachment function. All three conditions are necessary.
Confirm all three before selecting the equipment
- 1. Paper roll and clamp
- Rated clamp capacity, opening range, pads and the number of rolls per pickup must match the load.
- 2. Forklift with the clamp fitted
- Check residual capacity with the clamp installed at the required lift height and load centre. Confirm the carriage class and mounting dimensions. Truck rated capacity alone is insufficient.
- 3. Auxiliary hydraulic circuits
- Check available hydraulic circuits, controls, pressure, flow and hose connections for clamping, rotation and any additional functions. A solenoid-operated selector valve may be needed, depending on the truck and attachment configuration.
Send a paper-roll photo and the five details below. A close-up of the outer surface helps us select the contact pads.
- Roll weight — maximum weight per roll.
- Diameter range — smallest and largest rolls.
- Outer surface — paper grade and wrapping material; photos are the clearest reference.
- Roll height — axial roll width.
- Rolls per pickup — one roll or multiple rolls.
Standard or vulcanized rubber contact pads?
Standard contact pads
Specify the roll surface and wrapping so the contact pad can be matched to the paper.
Vulcanized rubber contact pads
Recommended for very high-grade paper or rolls wrapped in slippery plastic film. The rubber contact surface protects the roll and increases friction.
If the paper grade or wrapping is unclear, send a roll photo rather than choosing the pad type yourself. Paper roll clamps include 360° rotation as standard; additional functions depend on the operation.
ForkFocus matches the paper roll clamp, forklift and hydraulic configuration. All three checks are needed for every forklift-mounted attachment.
For replacement pads, seals or hoses, include the attachment nameplate and a part photo. Send paper-roll photos and your handling requirements by email or WhatsApp. Truck nameplate and hydraulic-control photos help with compatibility checks.
Related attachment options include forklift rotators, side shifters and load stabilizers. For each attachment, verify the load, the installed forklift and the hydraulics.
Paper-roll handling needs both clamp and truck verification
Roll weight, diameter, width, paper grade and orientation determine clamp selection; the forklift must then retain adequate working-point capacity.
- Roll
- Maximum weight, diameter, width, orientation and paper surface.
- Clamp
- Opening range, contact pads, arm profile, rotation and pressure control.
- Forklift
- Mast, carriage, visibility, tyres and working aisle.
- Hydraulics
- Functions, pressure, flow and hose arrangement.
- Capacity
- Check clamp rated capacity and forklift residual capacity independently.
Paper roll clamp matched to the roll and truck
The clamp must cover the roll range without damaging the paper, and the truck must carry the combined configuration at the required height and load centre.
Confirm the clamp specifications for your paper rolls and forklift.
Review the paper roll clamp product page with the truck interface and working-point data.
electric forklift range
Electric counterbalance trucks can suit indoor paper warehouses; outdoor yards or longer heavy-duty cycles may require an IC alternative after the same mast, hydraulic and capacity checks.
Get a paper roll clamp quote
For selecting or maintaining the counterbalance forklift, see counterweight identification. For an IC forklift, the guides to engine identification, starting symptoms and exhaust and ventilation help identify the equipment and maintenance need.
Paper-roll information for clamp selection
| Configuration feature | Specification |
|---|---|
| Rotation | 360°; confirm the required hydraulic functions |
Which roll dimensions are needed?
Provide maximum roll weight, smallest and largest diameter, axial roll width and rolls per pickup.
Why is the roll surface important?
Paper grade and wrapping affect contact-pad selection. Send a close-up of the roll surface.
When are vulcanized rubber pads considered?
Consider vulcanized rubber pads for very high-grade paper or slippery plastic wrapping; confirm the actual roll surface.
Must the forklift and clamp be checked separately?
Yes. The clamp rating and the truck’s available capacity with the clamp fitted must both satisfy the load.
Which hydraulic functions need confirmation?
Confirm available circuits, controls, pressure, flow and hose connections for clamping, rotation and any additional functions.
What helps identify wear parts?
Send the attachment nameplate and a photograph of the pad, seal or hose required.
