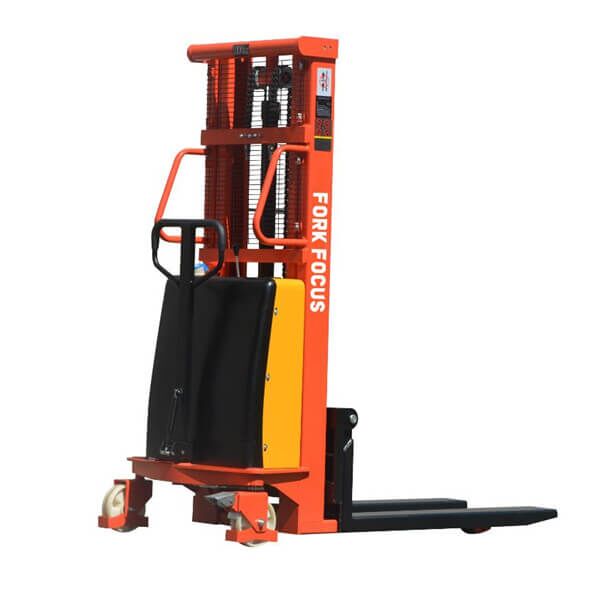

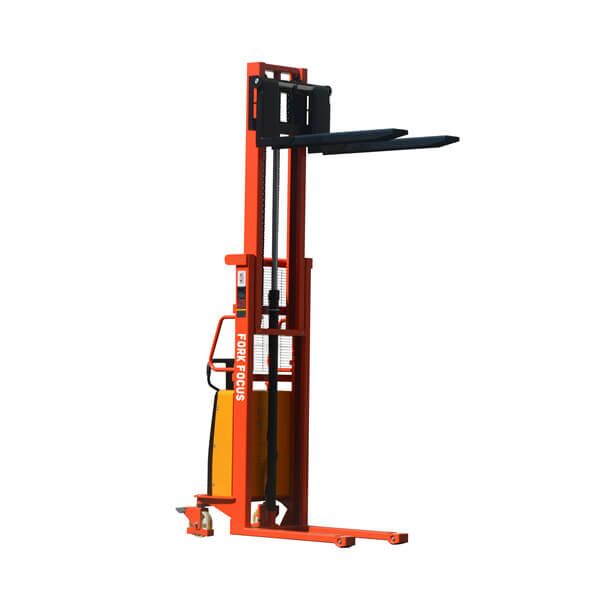

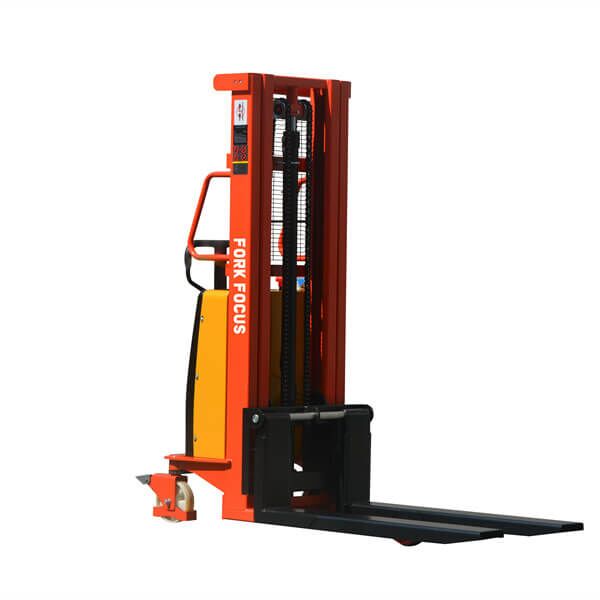

Semi-Electric Stacker
Semi-Electric stacker, is the alternative product between full electric stacker and manual stacker.
As globle trend shows that it’s received a large requirement in recent years. This might becouse the semi-electric stacker is with a nicer price than full electric stacker, but operates much easier than manual stacker. Fork Focus, offers quality semi-electric stacker with competitive price.
| Model | FPS12, FPS14, FPS16 |
|---|---|
| Rated Load Capacity/ Kg | 1200, 1400, 1600 |
| Delivery Time | 25 days around |
Consider semi-electric stacking when lifting is the main labour demand
A semi-electric stacker is worth comparing for intermittent pallet lifting where travel distances are short. Confirm precisely which functions are powered on the quoted configuration; the term semi-electric alone does not define every truck arrangement.
For a small store, workshop or dispatch area, the purchase decision should include the effort of moving and positioning a loaded stacker. A lower purchase price is useful only if the truck can enter the pallets and perform the required stacking cycle.
Check pallet access before choosing the mast
Stacker support legs and load wheels occupy space beneath or beside the load. Pallet bottom boards, fork-entry openings and the rack base can prevent a standard arrangement from reaching the intended position.
This page also lists a wide-leg option. Send a pallet photo and the available rack width so ForkFocus can review the appropriate fork and leg arrangement; do not assume every semi-electric stacker accepts every pallet.
| Purchase item | What to specify | Why it matters |
|---|---|---|
| Travel and positioning | Identify powered functions and any manual movement under load. | Match the handling effort to the number of moves and floor condition. |
| Pallet support | Confirm fork entry, support-leg width and bottom-board clearance. | Makes pallet and rack compatibility visible before purchase. |
| Lift and access height | Confirm fork height, lowered mast height and free-lift needs. | Checks both rack access and the doors the truck must pass through. |
| Actual working load | Use the specified model, mast and load centre. | Nominal capacity does not establish the available load at every height. |
Details about Semi-Electric Stacker
| Brand | FORKFOCUS | |||||
| 1 | Model | FCD-D10G | FCD-D15G | FCD-D20G | ||
| 2 | Type | SEMI ELECTRIC | SEMI ELECTRIC | SEMI ELECTRIC | ||
| 3 | Rated capacity | Q(kg) | 1000 | 1500 | 2000 | |
| 4 | Fork type | Covering | Covering | Covering | ||
| 5 | Load center | C(mm) | 500 | 500 | 500 | |
| 6 | Operator type | Standard | Standard | Standard | ||
| 7 | Wheel type | Nylon | Nylon | Nylon | ||
| 8 | Front wheel | mm | Ø80×70 | Ø80×70 | Ø80×70 | |
| 9 | Black wheel | mm | Ø180×50 | Ø180×50 | Ø180×50 | |
- Quality components.
- Stable structure.
The unique structure allows the stacker with a good stability.
- The color can be changed to up to your request.
- Easy and safe operation for light duty works.
- Good alternative between manual stacker and walkie electric stacker.
- Wide leg type of semi-electric stacker is available too.
Benefit:
- Faster delivery : 25 days.
- Spare parts supply within one week at latest.
- After sales service 24hours on line.
- Technical support or consultation in english, 0 communication obstacle.
- Designed to western high quality standards
- Assembled with high quality Japanese or western parts
- Following European ergonomic insights
ForkFocus can compare semi-electric and fully powered stacking
For repeated loaded travel, compare the walkie electric stacker before deciding on the lower-priced arrangement. If support legs cannot enter the pallet or rack, a compact electric counterbalance forklift may deserve a separate space and capacity review.
Send the pallet dimensions, maximum weight and required fork height, or simply a photograph of the task. ForkFocus can identify the configuration questions and include battery, charger and model-specific maintenance parts in the quotation discussion.
Can the nominal model capacity be used at any rack height?
No. Request the load capacity for the quoted mast, required height and load centre. Forklift or stacker capacity should not be inferred from the model name alone.
What should an importer compare between offers?
Compare the same powered functions, fork and leg dimensions, mast, battery and charger. Model designations in the original page tables should be resolved to one exact specification in the final quotation.
