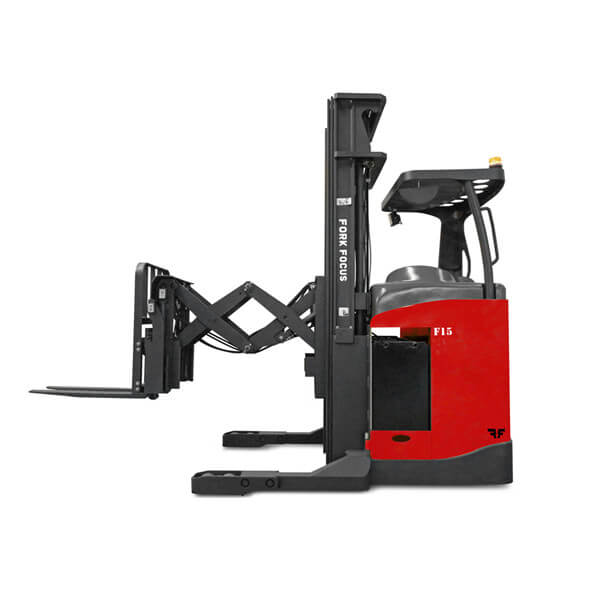

Double Deep Reach Truck
FORKFOCUS’ Double Deep Reach Truck, especially for the Walk-in racking system. The reach distance could be 920mm, greatly meet majority demand from customers. The whole design for double deep reach truck is from the consideration of an easy operation in a humanized way.
| Model | FFBK15 |
|---|---|
| Rated Load Capacity/ Kg | 1500 |
| Delivery Time | 60 days around |
Details about Double Deep Reach Truck
Deep reach truck features:
- Quality components.

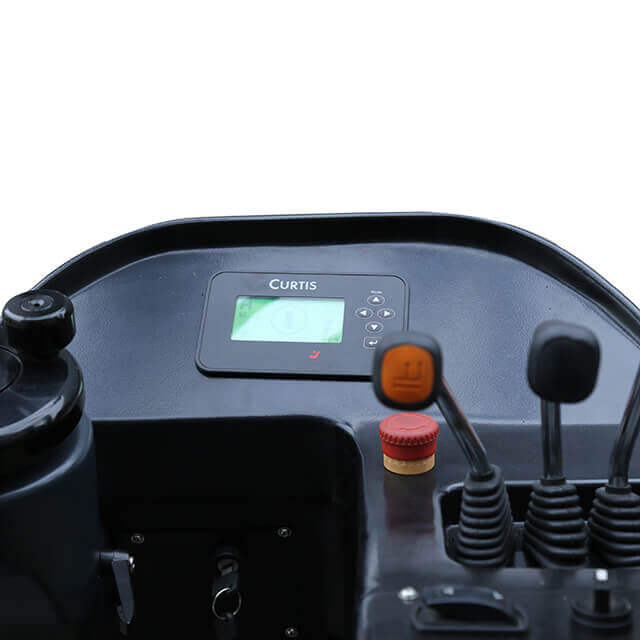

ForkFocus double deep reach truck, standard equiped with ZAPI or Curtis controller, ensures a stable operation.
- Stable structure.
The unique structure allows the forklift with a good stability.
- Morden outlooking.
We abandon the traditional design, which makes chinese made product no sense of aesthetic perception. It’s the 21 century. China grows unprecedentedly fast and it’s time to shift this mindset.
- There are many suppliers in china offer small reach truck, what FORKFOCUS offered is the big reach truck with double deep reach. This requires mature technology and the strong strength of the factory.
Benefit:
- Faster delivery : 60 days.
- Parts availability and preparation time confirmed for each order.
- After sales service 24hours on line.
- Technical support or consultation in english, 0 communication obstacle.
- Built to western standards
- Assembled with high quality Japanese or western parts
- Following European ergonomic insights
- The first one in china to make this kind of reach truck and keeping the only one over 20 years.
| 1 | Brand |
| ||
| 2 | Model | FBK15-AZ1 | ||
| 3 | Power | Battery | ||
| 4 | Operation | Sit-on | ||
| 5 | Rated Load Capacity | Q (kg) | 1500 | |
| 6 | Load Centre | C (mm) | 500 | |
| 7 | Lift Height | H3 (mm) | 6000 | |
| 8 | Free Lift | H2 (mm) | 200 | |
| 9 | Fork Size (L×W×T) | L/W/T(mm) | 920×120×35 |
Double-deep storage needs an aisle and rack check
Reach depth is only one part of the specification. The truck, rack, pallet and travel aisle must work together at the required lift height.
- Rack geometry
- Measure beam height, pallet overhang, clearances and first- and second-deep positions.
- Aisle geometry
- Confirm Ast, turning area, transfer aisle and any end-of-aisle restriction.
- Load data
- Provide pallet dimensions, maximum weight and actual load centre.
- Capacity at height
- Use the correct mast and load chart for the selected configuration.
- Floor and guidance
- Check flatness, wheel condition and any camera, height indication or guidance requirement.

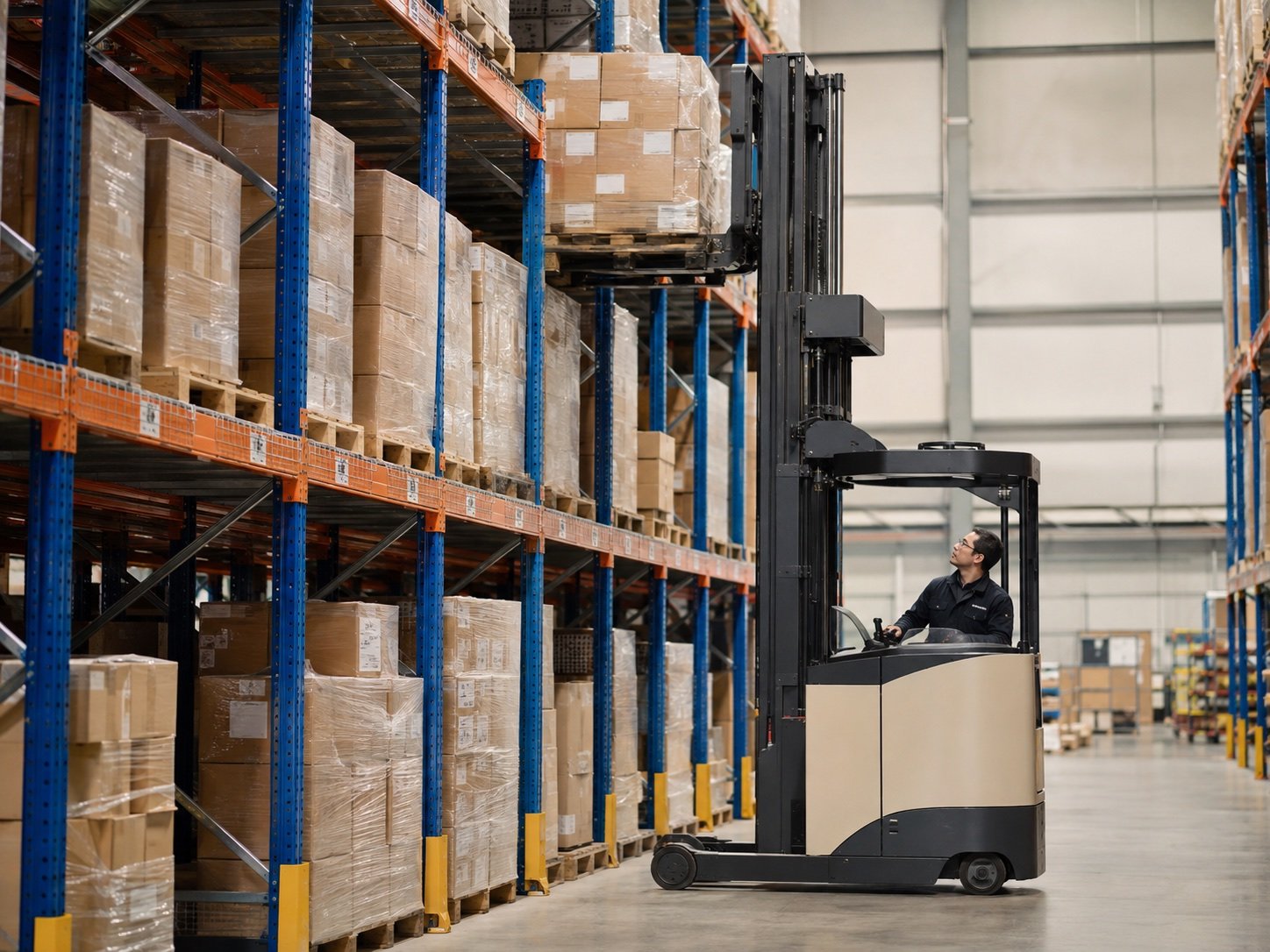

Double-deep reach truck
Suitable for double-deep racking where storage density justifies reduced direct pallet access. It is not the preferred storage layout where every pallet must remain individually accessible.
Aisle width, mast, reach stroke, pallet, load chart and floor flatness must be verified before model approval.
Compare the available options on the warehouse material-handling equipment, then confirm the remaining working data.
Confirm the rack, aisle and mast together
Rack and pallet information for double-deep storage
Which rack measurements are needed?
Provide beam height, pallet overhang, clearances and first- and second-deep pallet positions.
Why measure more than the travel aisle?
Include turning space, transfer aisles and end-of-aisle restrictions.
What load information is needed?
State pallet dimensions, maximum weight and the actual load centre.
Can nominal capacity be used at every rack height?
Use the correct mast and load chart for the selected configuration and required height.
Which floor details matter?
Check floor flatness, wheel condition and any planned guidance requirement.
When may double-deep storage be unsuitable?
It is not the preferred layout where every pallet must remain individually accessible.
