Doorway and elevator access
The two chassis widths support compact indoor movement. Confirm the complete travel dimensions, folded height, elevator door, car size and rated load.

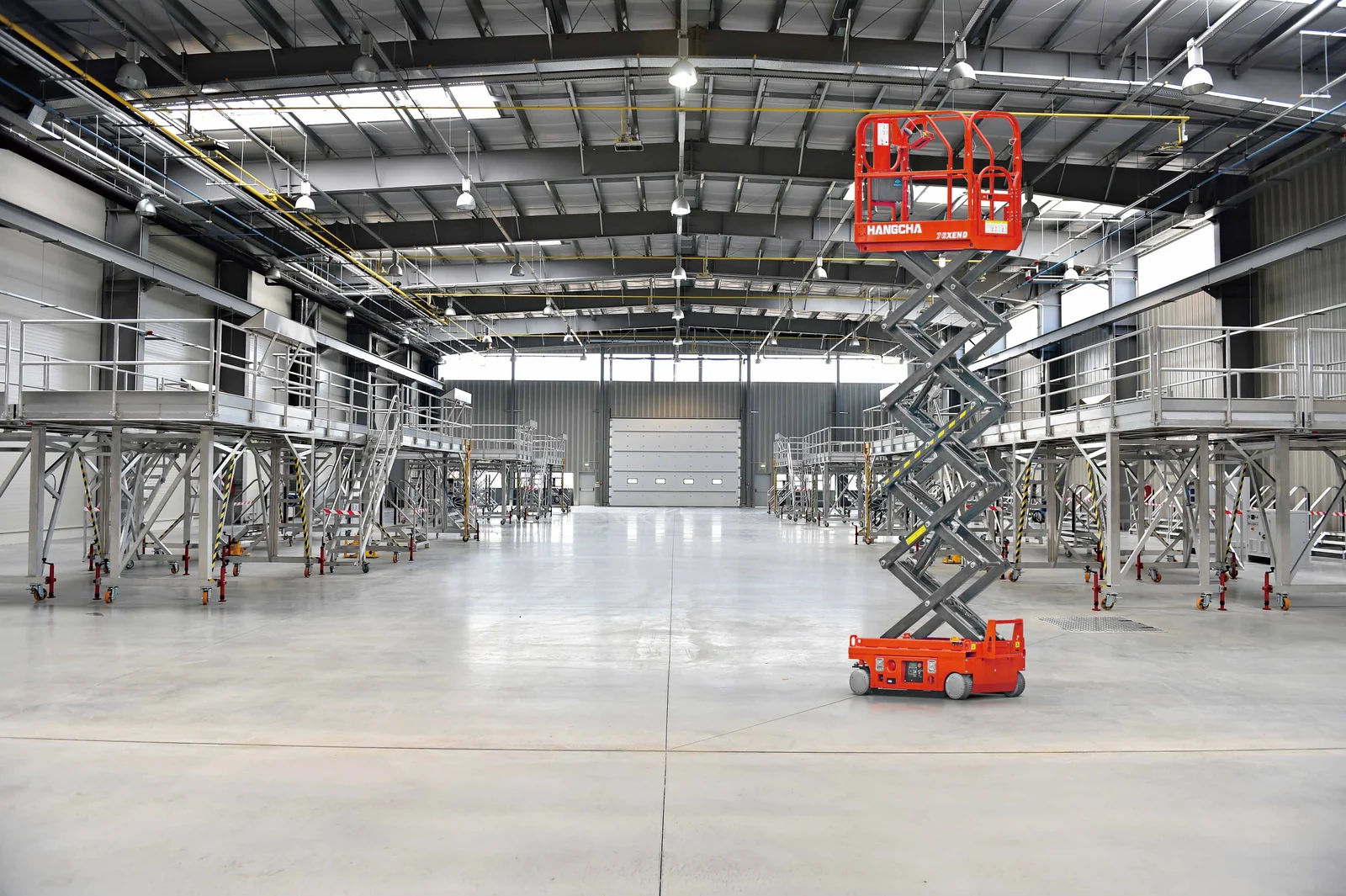

Mini Self-Propelled Scissor Lifts
Reach lighting, ceiling services and maintenance points without bringing a larger lift into the building. Compact dimensions, low machine weight and electric travel suit restricted indoor spaces after floor and elevator limits are confirmed.
ForkFocus equipment supply · Configuration support · Inspection · Export shipment · After-sales assistance
Compare models and specificationsCompare other AWP types
Ask for a quote
Compact powered access for finished buildings
The mini range combines narrow chassis dimensions, electric travel, non-marking tyres and a compact indoor platform. The HS models add model-specific lead-acid or lithium battery choices.
- Compact access
- Overall width is 0.76 or 0.81 m. Folded height, doorway clearance, elevator car size and elevator load limit must be checked together.
- Low machine weight
- Published machine weight ranges from 900 to 1480 kg. Floor loading and elevator capacity remain site-specific checks.
- Electric travel
- DC electric travel supports low-noise indoor work. Published stowed travel speed is up to 4 km/h.
- Maintenance access
- The drawer arrangement, fault-code display, manual lowering control and maintenance support arms provide direct service access.
Performance in Real Work
Platform and worker rating
The 5.9 m models list 250 kg platform load. The 7.6 m models list 230 kg. Worker ratings vary by model and indoor or outdoor use.
Floor protection
Non-marking tyres and low machine weight support clean indoor work, but slab strength and point loading still require confirmation.
Recommended applications
- Factory, warehouse and commercial-building maintenance on firm floors.
- Work requiring compact access through verified doors or elevators.
- Indoor tasks where electric travel, low noise and non-marking tyres are required.
Application limits
- The surface requires crawler traction or rough-terrain tyres.
- The work position requires horizontal outreach.
- The elevator, floor or access path cannot support the machine weight and dimensions.
Series Comparison
5.9 m working height

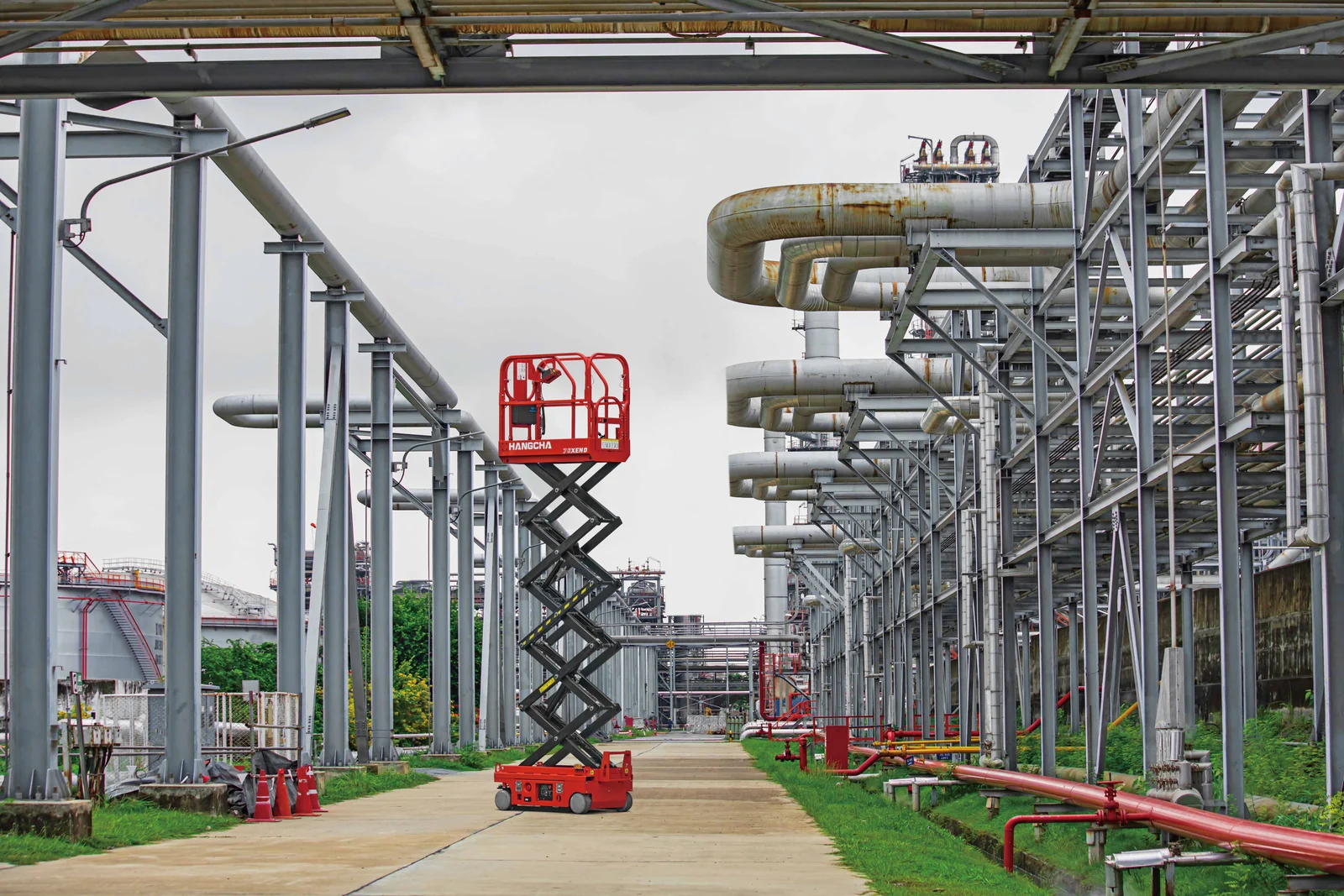

60XEND and HS0607D use a 0.76 m chassis and carry a published 250 kg platform load.
7.6 m working height
76XEND and HS0708D use a 0.81 m chassis and carry a published 230 kg platform load.
XEND and HS D models
Compare battery, machine weight, worker rating and service requirements before selecting the chassis generation.
Compare Other Aerial Work Platforms
Different work conditions may call for a different machine. Compare the options below, or tell ForkFocus the main task and working height for selection help. If you know the model, you can request a quote directly.
Your requirement
You need a different height or platform load
AWP options to compare
Key difference to check
Compare the published model data, chassis dimensions and platform load. Check the complete access path before choosing a larger chassis.
Your requirement
A point-access platform may suit the task
AWP options to compare
Key difference to check
Compare platform load, working height, stowed dimensions and machine weight. A mast and a scissor platform differ; check the personnel and tools carried.
Your requirement
The task requires reach around equipment
AWP options to compare
Key difference to check
Compare working height, outreach, platform load and floor loading. A jib machine must fit both the access path and the required work position.
Browse by equipment type
Scissor Lifts — Vertical access with a scissor platform.
Vertical Mast Lifts — Point access, with or without a jib.
Boom Lifts — Articulating & Telescopic — Horizontal reach and access around obstacles.
Why Hangcha
Compact powered access for finished buildings.
- Narrow chassis widths help negotiate restricted entrances.
- Low machine weight supports floor and elevator planning.
- Electric travel supports low-noise indoor maintenance.
- Drawer access and onboard diagnostics simplify routine servicing.
Compare the scissor lifts available from ForkFocus.
Why ForkFocus
Access equipment supply backed by material handling expertise and ForkFocus 360° service.
- Application and model choice. Compare doorways, working height and machine weight across the four compact models; elevator dimensions and load limits matter where elevators are used.
- Equipment and configuration quotation. ForkFocus supplies the selected machine with inspection, shipment and operating documentation, then supports parts identification and remote assistance.
- One material handling supplier. Coordinate access equipment with forklifts and spare parts for the wider project.
- Support before and after shipment. Customer-appointed pre-shipment inspection, export coordination, manuals and remote after-sales assistance support the equipment purchase.
Get a compact lift that can enter the building and reach the task. Send a model request or describe the work; ForkFocus will help with the remaining selection details.
Equipment supply with ForkFocus 360° service
Inspection and shipment you can check
Confirm the ordered equipment before dispatch. Customer-appointed third-party inspection is accepted, and packing and loading are coordinated for the agreed shipment.
Fast response after delivery
7×24 after-sales support: remote troubleshooting, parts identification and applicable manuals.
Stocked parts: quick preparation through our spare parts support.
Special, non-stock and imported parts: availability depends on the requested part.
Models and core specifications
Working height, platform height, load, width and machine configuration remain attached to the selected model.
| Model | Working height | Platform height | Platform load | Extension load | Overall width | Weight |
|---|---|---|---|---|---|---|
| 60XEND | 5.9 m | 3.9 m | 250 kg | 113 kg | 0.76 m | 900 kg |
| 76XEND | 7.6 m | 5.6 m | 230 kg | 113 kg | 0.81 m | 1270 kg |
| HS0607D | 5.9 m | 3.9 m | 250 kg | 113 kg | 0.76 m | 1080 kg |
| HS0708D | 7.6 m | 5.6 m | 230 kg | 113 kg | 0.81 m | 1480 kg |
Get a quote for your application
Know the model? Send the model, quantity and destination for a quotation.
Need help choosing? Tell us the working height and where the lift will be used.
ForkFocus will help you compare models and configurations, then quote the equipment. Other technical details can follow during selection.
Ask for a quoteFrequently asked questions
Which models have a 0.76 m overall width?
60XEND and HS0607D have a published overall width of 0.76 m.
Which mini models have the lowest published machine weight?
60XEND has the lowest published machine weight at 900 kg.
Can the platform load be treated as an elevator load?
No. Elevator selection must use the complete machine weight, occupied dimensions and elevator rating, not the platform load.
