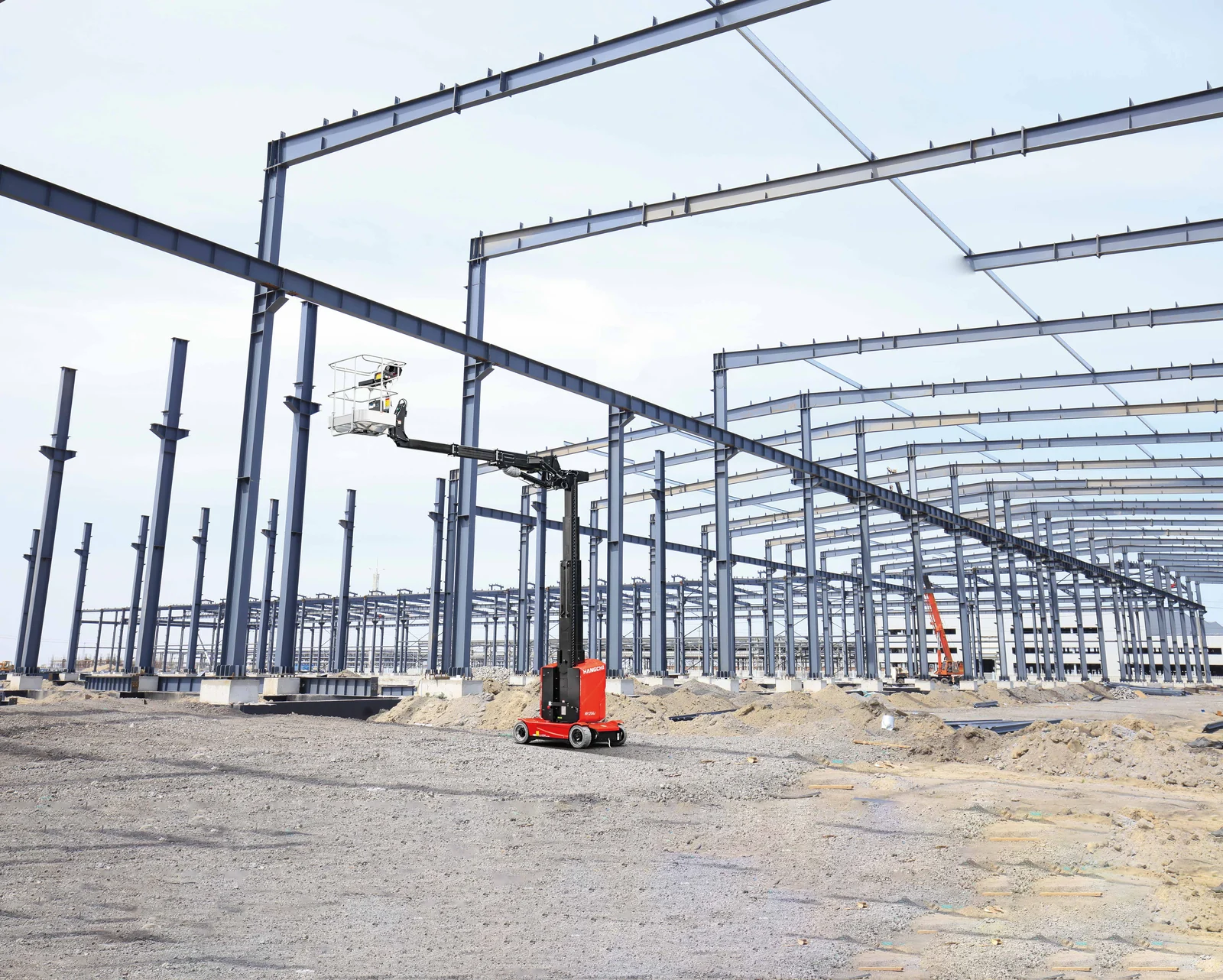

Obstacle access

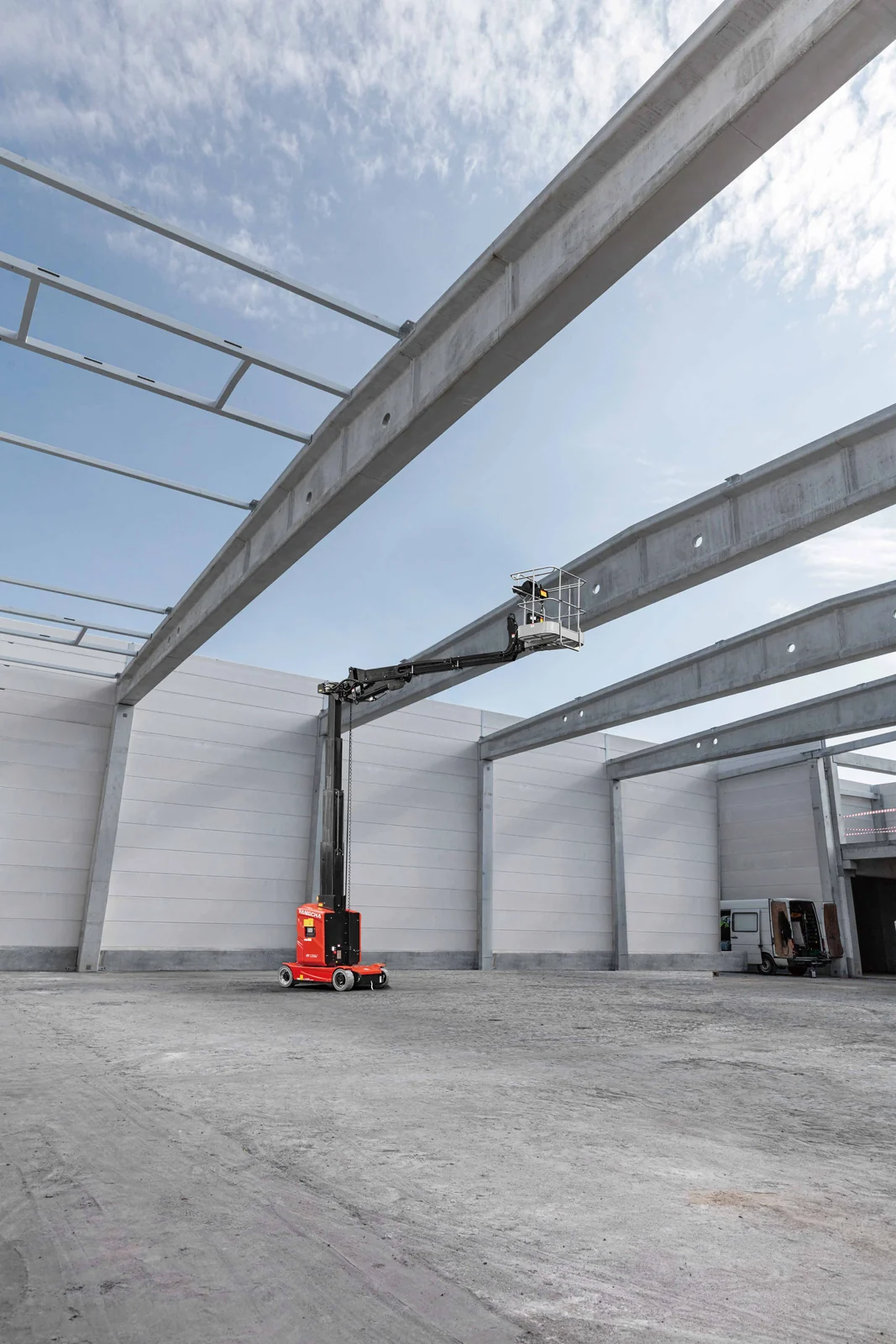

The jib and rotating platform provide reach around beams, services and equipment. Confirm the permitted working height, reach and exclusion zone.
Self-Propelled Vertical Mast Lifts with Jib
Position technicians above and beyond fixed equipment with telescopic vertical lift, a short jib and platform rotation. The compact electric chassis suits maintenance tasks where straight vertical access cannot reach the work position.
ForkFocus equipment supply · Configuration support · Inspection · Export shipment · After-sales assistance
Compare models and specificationsCompare other AWP types
Ask for a quote
Reach over obstacles with a compact mast and jib
The HV120AJ provides vertical elevation and horizontal outreach from a compact electric chassis. The mast, jib, turret and platform movements allow precise access where a straight vertical platform cannot reach the work face.
- Working height and reach
- Published working height is 12.0 m, platform height 10.0 m and horizontal extension 5.5 + 0.5 m.
- Jib and platform positioning
- The turret rotates 345°, the platform rotates 120° and the short jib moves +65° / −60°.
- Compact powered chassis
- Overall width is 1.2 m, outside turning radius is 2.6 m and maximum stowed travel speed is 6 km/h.
- Electric power choice
- Hangcha lists 48 V 160 Ah lithium or 48 V 200 Ah lead-acid battery configurations with a 48 V / 40 A charger.
HV120AJ performance in real work
Travel and surface
The 5000 kg machine requires a verified travel path, floor or ground capacity and a surface within the published 3° allowable inclination.
Control and protection
Proportional controls, anti-overturn protection, emergency lowering, platform load sensing, anti-pinch protection and diagnostics support controlled operation.
HV120AJ applications
- Industrial installation and maintenance requiring reach around overhead structures.
- Indoor or outdoor work where the 1.2 m chassis and 2.6 m outside turning radius fit the access path.
- Jobs requiring a compact electric machine with 200 kg platform load.
HV120AJ application limits
- The travel path or floor cannot support the 5000 kg machine.
- The task lies outside the published height, extension or platform-load limits at the required height and reach.
- The surface exceeds the allowable inclination or traction limits.
HV120AJ mast, jib and platform positioning
Vertical mast section
Provides 10.0 m maximum platform height while keeping the chassis compact.
Short jib
Adds 5.5 + 0.5 m published horizontal extension and +65° / −60° jib movement.
Rotating platform
The 120° platform rotation supports final positioning at the work face.
Compare Other Aerial Work Platforms
Different work conditions may call for a different machine. Compare the options below, or tell ForkFocus the main task and working height for selection help. If you know the model, you can request a quote directly.
Your requirement
The task needs vertical access without outreach
AWP options to compare
Key difference to check
Compare working height, platform load, chassis dimensions and machine weight when a jib is unnecessary.
Your requirement
The required height or reach exceeds the mast-and-jib limits
AWP options to compare
Key difference to check
Compare articulated reach, up-and-over height, platform load and site access against the model-specific work chart.
Browse by equipment type
Scissor Lifts — Vertical access with a scissor platform.
Vertical Mast Lifts — Point access, with or without a jib.
Boom Lifts — Articulating & Telescopic — Horizontal reach and access around obstacles.
Why Hangcha
HV120AJ: reach over obstacles with a compact mast and jib.
- The jib provides outreach beyond the mast.
- Turret and platform rotation help align with the work position.
- A compact powered chassis supports indoor manoeuvring.
- Lithium and lead-acid configurations suit different charging needs.
Compare the vertical mast lifts available from ForkFocus.
Why ForkFocus
Access equipment supply backed by material handling expertise and ForkFocus 360° service.
- Application and model choice. Compare work height and horizontal reach with the fixed equipment or structure that obstructs access.
- Equipment and configuration quotation. For HV120AJ, lithium or lead-acid power and the corresponding charger are included in the quotation, with export delivery and machine-specific service documentation.
- One material handling supplier. Coordinate access equipment with forklifts and spare parts for the wider project.
- Support before and after shipment. Customer-appointed pre-shipment inspection, export coordination, manuals and remote after-sales assistance support the equipment purchase.
Check whether the mast and jib can reach your work position. Send a model request or describe the work; ForkFocus will help with the remaining selection details.
Equipment supply with ForkFocus 360° service
Inspection and shipment you can check
Confirm the ordered equipment before dispatch. Customer-appointed third-party inspection is accepted, and packing and loading are coordinated for the agreed shipment.
Fast response after delivery
7×24 after-sales support: remote troubleshooting, parts identification and applicable manuals.
Stocked parts: quick preparation through our spare parts support.
Special, non-stock and imported parts: availability depends on the requested part.
Models and core specifications
HV110AJ provides a 1.00 m chassis and 3.0 m horizontal outreach for narrower access. HV120AJ reaches a 12 m working height and offers 5.5 + 0.5 m horizontal extension. Compare access width and the reach needed around obstacles before choosing.
| Model | Working height | Platform height | Horizontal extension | Platform load | Overall width | Machine weight |
|---|---|---|---|---|---|---|
| HV110AJ | 11.22 m | 9.22 m | 3.0 m | 210 kg | 1.00 m | 2980 kg |
| HV120AJ | 12.0 m | 10.0 m | 5.5 + 0.5 m | 200 kg | 1.20 m | 5000 kg |
Get a quote for your application
Know the model? Send the model, quantity and destination for a quotation.
Need help choosing? Tell us the working height and where the lift will be used.
ForkFocus will help you compare models and configurations, then quote the equipment. Other technical details can follow during selection.
Ask for a quoteFrequently asked questions
What is the published horizontal extension?
Hangcha lists 5.5 + 0.5 m horizontal extension for the HV120AJ.
What battery configurations are listed for HV120AJ?
Hangcha lists a 48 V 160 Ah lithium configuration and a 48 V 200 Ah lead-acid configuration.
Does the HV120AJ 12 m working height describe platform height?
No. Published working height is 12 m and maximum platform height is 10 m.
