Indoor access
Check chassis width, stowed dimensions, turning circle and floor loading across the complete travel path.

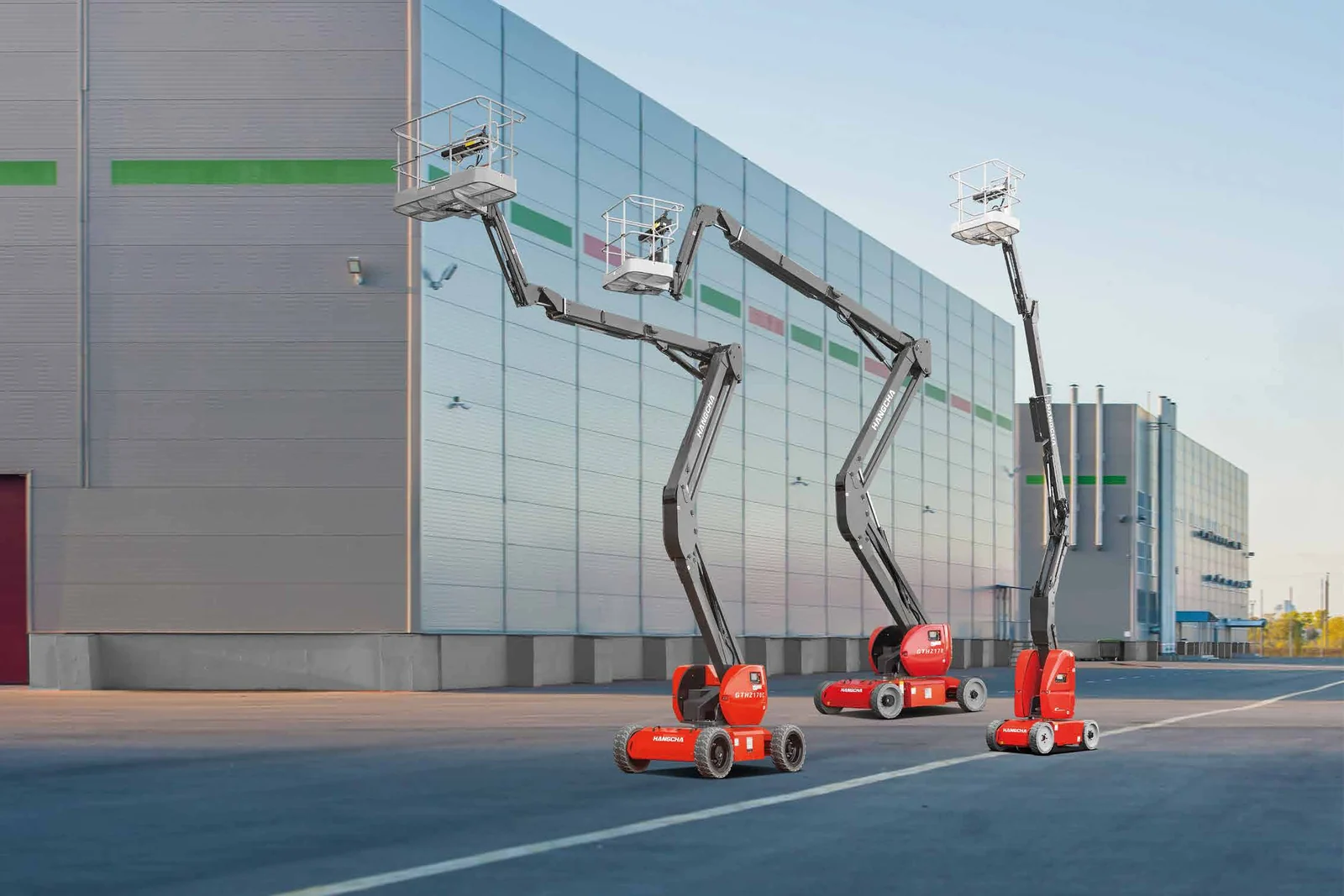

Electric Articulating Boom Lifts
Reach above and beyond building services, machinery and structural obstacles with an articulated electric boom. Powered travel and rotating platform controls support installation and maintenance positioning.
ForkFocus equipment supply · Configuration support · Inspection · Export shipment · After-sales assistance
Compare models and specificationsCompare other AWP types
Ask for a quote
Electric up-and-over access around fixed equipment
- Articulated reach
- The boom reaches up, out and over fixed equipment and building elements.
- Permanent-magnet drive
- Electric travel uses permanent-magnet motors, electromagnetic braking and automatic differential steering.
- Platform positioning
- The jib moves ±70°, the platform rotates 140° and the turret rotates 350° or 355° by model.
- Battery options
- Published power data include 80 V lead-acid and lithium configurations with an integrated charger.
Performance in Real Work
Working height and reach
Horizontal reach and up-and-over height must match the actual obstacle geometry, not only the maximum working height.
Charging duty
Battery size, charger input, available charging time and daily movement determine the workable shift plan.
Product video
Articulating boom controls and positioning
See a compact electric articulating boom in operation, including the ground controls and swing-arm movement. The demonstration helps you understand how articulated sections position the platform around an obstruction.
Recommended applications
- Factory installation and maintenance around machinery.
- Warehouse or commercial work requiring articulated outreach.
- Sites requiring low-emission electric operation.
Application limits
- The floor cannot support the machine weight.
- The task lies outside the published reach or platform-load limits at the required height and reach.
- The worksite requires rough-terrain traction beyond the selected chassis.
Series Comparison
GTHZ120
The narrow 1.20 m chassis serves compact access at 11.95 m working height.
GTHZ170
Provides 16.75 m working height and 9.3 m horizontal reach with 200 kg platform load.
GTHZ170C
Raises platform load to 230 kg and uses the larger tyre package.
Compare Other Aerial Work Platforms
Different work conditions may call for a different machine. Compare the options below, or tell ForkFocus the main task and working height for selection help. If you know the model, you can request a quote directly.
Your requirement
A confined work point is within mast-and-jib height and reach limits
AWP options to compare
Key difference to check
Compare working height, reach, platform load and access dimensions. Use a mast-and-jib machine only when its working height and horizontal reach meet the task.
Your requirement
The job calls for long, direct horizontal outreach
AWP options to compare
Key difference to check
Compare direct reach and the applicable restricted or unrestricted load chart with the articulated approach, including ground support and machine access.
Your requirement
You need rough-terrain vertical access without outreach
AWP options to compare
Key difference to check
Compare ground conditions, power, platform load and stabiliser setup where a vertical scissor platform suits the work.
Browse by equipment type
Scissor Lifts — Vertical access with a scissor platform.
Vertical Mast Lifts — Point access, with or without a jib.
Boom Lifts — Articulating & Telescopic — Horizontal reach and access around obstacles.
Why Hangcha
Electric up-and-over access around fixed equipment.
- Articulated outreach reaches across fixed obstructions.
- Permanent-magnet electric travel supports powered repositioning.
- Jib and platform rotation help align with the task.
- Model-specific battery options suit site charging arrangements.
Compare the boom lifts available from ForkFocus.
Why ForkFocus
Access equipment supply backed by material handling expertise and ForkFocus 360° service.
- Application and model choice. Compare work height, reach and access width across GTHZ120, GTHZ170 and GTHZ170C.
- Equipment and configuration quotation. Battery and charger choices are discussed against site supply and working hours, with machine inspection, packing and after-sales assistance coordinated.
- One material handling supplier. Coordinate access equipment with forklifts and spare parts for the wider project.
- Support before and after shipment. Customer-appointed pre-shipment inspection, export coordination, manuals and remote after-sales assistance support the equipment purchase.
Get electric up-and-over access around the obstruction. Send a model request or describe the work; ForkFocus will help with the remaining selection details.
Equipment supply with ForkFocus 360° service
Inspection and shipment you can check
Confirm the ordered equipment before dispatch. Customer-appointed third-party inspection is accepted, and packing and loading are coordinated for the agreed shipment.
Fast response after delivery
7×24 after-sales support: remote troubleshooting, parts identification and applicable manuals.
Stocked parts: quick preparation through our spare parts support.
Special, non-stock and imported parts: availability depends on the requested part.
Models and core specifications
| Model | Working height | Platform height | Horizontal reach | Platform load | Width | Weight |
|---|---|---|---|---|---|---|
| GTHZ120 | 11.95 m | 9.95 m | 7.0 m | 200 kg | 1.20 m | 6670 kg |
| GTHZ170 | 16.75 m | 14.75 m | 9.3 m | 200 kg | 1.75 m | 6990 kg |
| GTHZ170C | 16.95 m | 14.95 m | 9.3 m | 230 kg | 1.75 m | 7130 kg |
Get a quote for your application
Know the model? Send the model, quantity and destination for a quotation.
Need help choosing? Tell us the working height and where the lift will be used.
ForkFocus will help you compare models and configurations, then quote the equipment. Other technical details can follow during selection.
Ask for a quoteFrequently asked questions
How are working height and platform height used?
They are separate manufacturer values. Select from the required platform position and confirm the stated working height independently.
What determines the usable platform load?
The selected model load chart and working position determine the usable platform load. Restricted and unrestricted load ratings apply at different reach positions.
Can I request a quote before choosing the model?
Yes. Send the model, quantity and destination if you know the machine. Otherwise, tell ForkFocus the working height and application; we will help with model and configuration selection.
Talk to ForkFocus about your access equipment
Request a quotation by model, quantity and destination, or send the work height and application for selection assistance. Incomplete specifications are welcome.
