Chassis width and transport dimensions
HS1218RP and HS1418RP are 1.74 m wide. HS1523RP and HS1823RP are 2.28 m wide, which changes site access and transport planning.
HS Rough-Terrain Scissor Lifts
Equip construction and industrial crews with the platform size, lifting capacity and power system the job requires. RP electric and RH diesel models combine rough-terrain tyres, stabilised setup and large work platforms.
ForkFocus equipment supply · Configuration support · Inspection · Export shipment · After-sales assistance
Compare models and specificationsCompare other AWP types
Ask for a quote

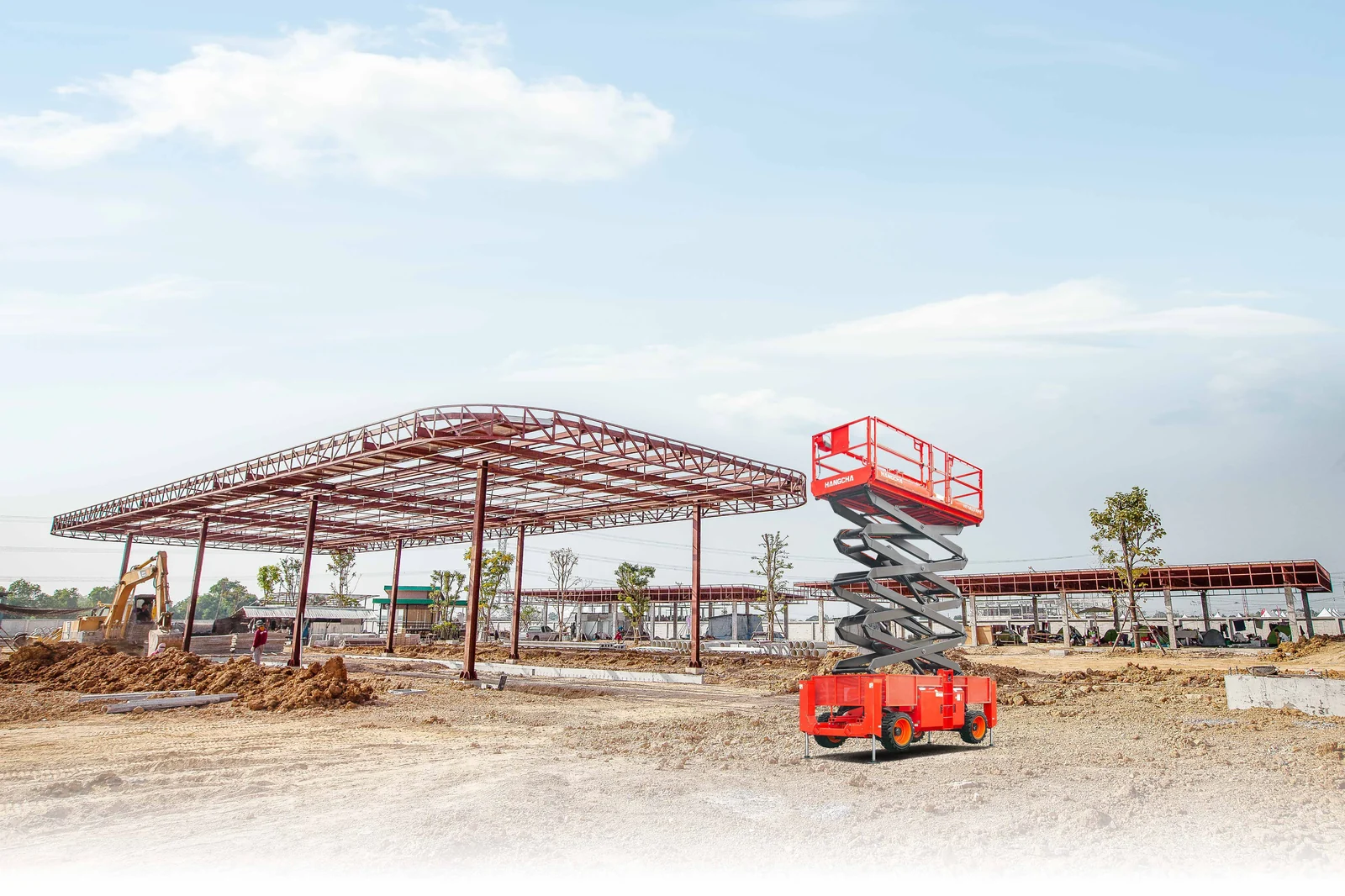

Choose electric or diesel power for outdoor platform work
The HS rough-terrain range combines four electric RP models with three diesel RH models. Power, platform load, drivetrain and stabilizer requirements remain attached to the selected machine.
- 80 V lithium power system
- The four electric RP models use 80 V lithium power and permanent-magnet drive, providing outdoor access without engine exhaust. Charging arrangements are part of the power selection.
- Drive and steering arrangement
- HS1218RP and HS1418RP combine the narrower chassis with 2×2 drive and steering. HS1523RP and HS1823RP use four-wheel drive with two-wheel steering for their larger, higher-load platforms.
- Hydraulic levelling outriggers
- One-button hydraulic levelling assists stabilised setup before work at height. The supporting ground and allowable inclination remain operating limits.
- Platform configuration
- HS1523RP and HS1823RP provide a 680 kg main-platform load and 230 kg extension-deck load.

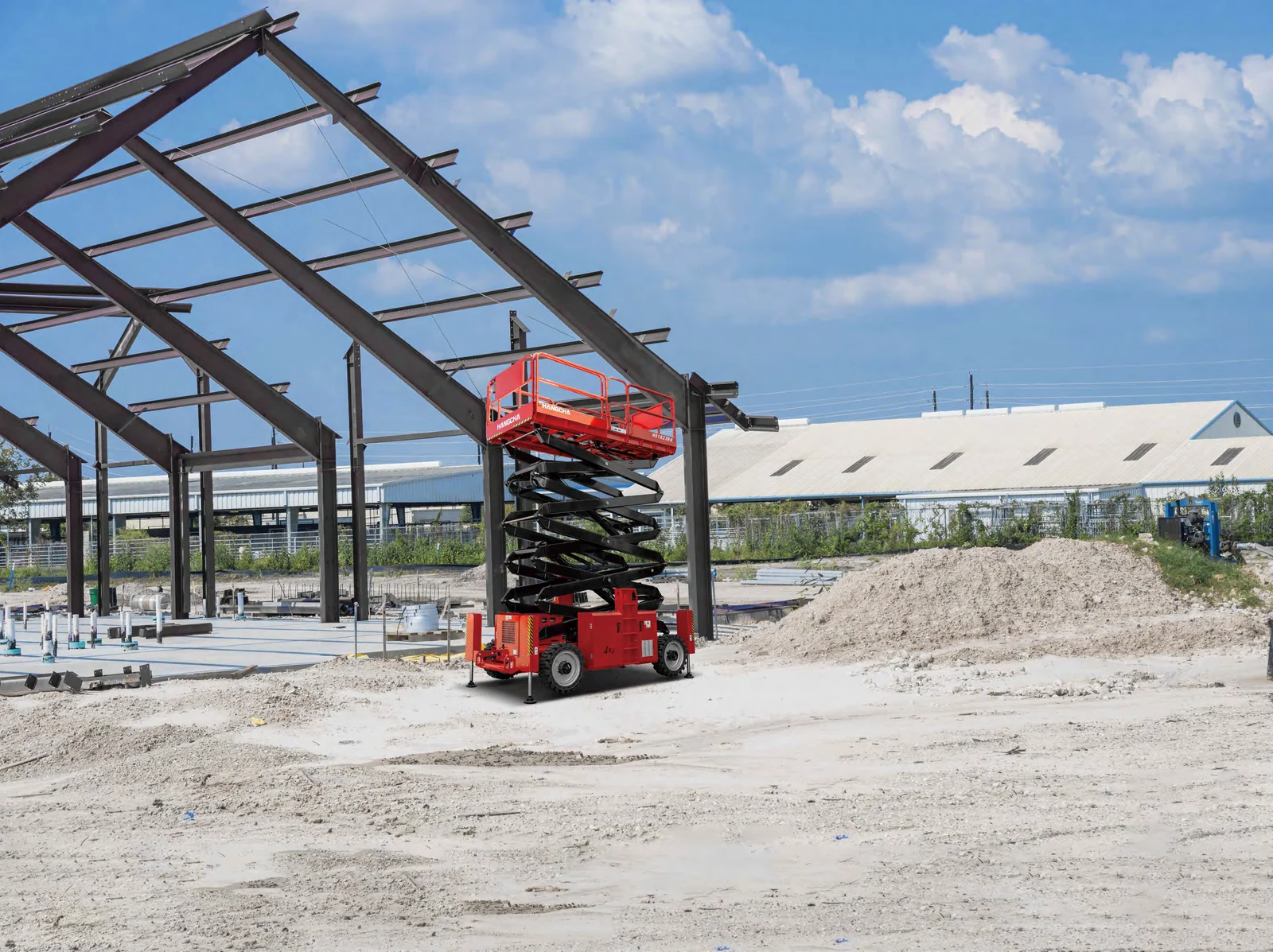

Diesel rough-terrain models
HS RH diesel scissor lifts with outriggers
HS1223RH, HS1523RH and HS1823RH use Kubota diesel power, four-wheel drive and hydraulic outriggers for outdoor work on verified ground. Working height spans 12–18 m, with platform loads from 680 to 1150 kg.
- Diesel duty
- A Kubota 36 kW engine, closed two-stage air filtration and automatic low idle support demanding outdoor shifts.
- Large platform
- The 3.9 × 1.83 m deck extends by 1.2 or 1.45 m and carries a published 230 kg extension-platform load.
- Terrain drivetrain
- Four-wheel drive, hydraulic disc brakes, solid rough-terrain tyres and 300 mm ground clearance support verified outdoor travel.
- Stabilised setup
- The published machine length differs with outriggers. Confirm the complete setup footprint and ground bearing before elevation.
Performance in Real Work
Main deck and extension-deck loads
Electric RP: main-platform load is 370–680 kg. Extension-deck load is 150 kg on the narrow chassis and 230 kg on the larger chassis.
Diesel RH: main-platform load is 680–1150 kg, with a 230 kg extension-deck load.
Ground condition and levelling
Check ground bearing strength, potholes, ramps, side slope and outrigger footprint. Travel gradeability does not replace the allowable-inclination limits for elevated work.
Recommended applications
- Outdoor industrial and construction work on verified uneven-ground access paths.
- Tasks requiring a large platform and higher deck load, with electric or diesel power selected for the site.
- Sites where gradeability, ground clearance and outrigger deployment can be confirmed.
Application limits
- The access path is a narrow indoor aisle or doorway suited to a slab-floor scissor lift.
- The work position requires horizontal outreach or up-and-over access.
- Ground strength, slope or outrigger footprint cannot be confirmed.
Compare Other Aerial Work Platforms
Different work conditions may call for a different machine. Compare the options below, or tell ForkFocus the main task and working height for selection help. If you know the model, you can request a quote directly.
Your requirement
You need to compare a tracked undercarriage
AWP options to compare
Key difference to check
Compare access width, ground support, power, platform load and stabiliser needs with the wheeled RP/RH chassis. Tracks do not remove ground or slope limits.
Your requirement
The work is on firm, level indoor floors
AWP options to compare
Key difference to check
Compare working height, platform load, chassis width and floor loading where a rough-terrain chassis is unnecessary.
Your requirement
The work position requires reach around equipment
AWP options to compare
Key difference to check
Compare obstacle geometry, articulated reach, platform load and site access. A boom reaches out from the chassis, unlike vertical scissor access.
Browse by equipment type
Scissor Lifts — Vertical access with a scissor platform.
Vertical Mast Lifts — Point access, with or without a jib.
Boom Lifts — Articulating & Telescopic — Horizontal reach and access around obstacles.
Why Hangcha
Choose electric or diesel power for outdoor platform work.
- Electric RP and diesel RH platforms suit different shift and power requirements.
- Hydraulic outriggers support stabilised outdoor setup.
- Large decks accommodate personnel, tools and materials within model limits.
- Purpose-built chassis and drive arrangements suit outdoor access work.
Compare the scissor lifts available from ForkFocus.
Why ForkFocus
Access equipment supply backed by material handling expertise and ForkFocus 360° service.
- Application and model choice. Compare charging access, fuel-based outdoor duty, work height and carried load before choosing RP or RH.
- Equipment and configuration quotation. The quotation specifies the chassis and its battery/charger or diesel configuration, with inspection, transport planning and model-specific parts support.
- One material handling supplier. Coordinate access equipment with forklifts and spare parts for the wider project.
- Support before and after shipment. Customer-appointed pre-shipment inspection, export coordination, manuals and remote after-sales assistance support the equipment purchase.
Compare electric RP and diesel RH machines in one equipment quotation. Send a model request or describe the work; ForkFocus will help with the remaining selection details.
Equipment supply with ForkFocus 360° service
Inspection and shipment you can check
Confirm the ordered equipment before dispatch. Customer-appointed third-party inspection is accepted, and packing and loading are coordinated for the agreed shipment.
Fast response after delivery
7×24 after-sales support: remote troubleshooting, parts identification and applicable manuals.
Stocked parts: quick preparation through our spare parts support.
Special, non-stock and imported parts: availability depends on the requested part.
Models and core specifications
Choose electric RP or diesel RH for the outdoor job
Electric RP: choose among four lithium-electric models where site charging is available. The 1.74 m chassis suits tighter access; the 2.28 m models provide 680 kg main-platform capacity with four-wheel drive.
Diesel RH: compare HS1223RH, HS1523RH and HS1823RH for fuel-based outdoor operation. Working heights are 12 m, 15 m and 18 m; HS1223RH carries 1150 kg on the main platform, while the two higher machines carry 680 kg.
ForkFocus will help weigh platform load, power availability and transport access. Travel gradeability does not authorise elevated work on the same slope.
Electric RP models
The four electric RP model comparison separates working height from platform height and keeps deck load, width and gradeability attached to the correct chassis.
| Model | Working height | Platform height | Platform load | Extension load | Overall width | Gradeability |
|---|---|---|---|---|---|---|
| HS1218RP | 12 m | 10 m | 450 kg | 150 kg | 1.74 m | 40% |
| HS1418RP | 14.2 m | 12.2 m | 370 kg | 150 kg | 1.74 m | 40% |
| HS1523RP | 15.1 m | 13.1 m | 680 kg | 230 kg | 2.28 m | 50% |
| HS1823RP | 18.2 m | 16.2 m | 680 kg | 230 kg | 2.28 m | 40% |
Gradeability is a travel specification, not permission to operate raised on an unlevel surface. Confirm ground strength, allowable inclination and outrigger footprint for the selected machine.
Diesel RH models
| Model | Working height | Platform height | Platform load | Extension load | Overall width | Gradeability | Weight |
|---|---|---|---|---|---|---|---|
| HS1223RH | 12 m | 10 m | 1150 kg | 230 kg | 2.28 m | 50% | 6850 kg |
| HS1523RH | 15 m | 13 m | 680 kg | 230 kg | 2.28 m | 45% | 7350 kg |
| HS1823RH | 18 m | 16 m | 680 kg | 230 kg | 2.28 m | 40% | 8850 kg |
Gradeability describes travel capability. Elevated work still requires the selected model to be within its allowable inclination on verified supporting ground.
Get a quote for your application
Know the model? Send the model, quantity and destination for a quotation.
Need help choosing? Tell us the working height and where the lift will be used.
ForkFocus will help you compare models and configurations, then quote the equipment. Other technical details can follow during selection.
Ask for a quoteFrequently asked questions
Which HS RP model has the highest published platform load?
HS1523RP and HS1823RP each have a published 680 kg main-platform load and 230 kg extension-platform load.
Does 50% gradeability mean the platform can work on a 50% slope?
No. Gradeability describes travel capability. Elevated work remains subject to the machine allowable inclination, ground condition and stabilisation requirements.
Which models are electric and which are diesel?
HS1218RP, HS1418RP, HS1523RP and HS1823RP use published 80 V lithium systems. HS1223RH, HS1523RH and HS1823RH use published Kubota diesel power.
