Traction and surface pressure
Crawler contact improves traction on suitable unfinished surfaces. Confirm ground strength, buried services, slope, soft areas and allowable surface pressure before travel or elevation.
HS Electric Crawler Scissor Lifts
Use a rubber-crawler chassis for sites where surface condition, traction and ground pressure govern equipment choice. Electric drive and model-specific levelling options support controlled access on suitable supporting ground.
ForkFocus equipment supply · Configuration support · Inspection · Export shipment · After-sales assistance
Compare models and specificationsCompare other AWP types
Ask for a quote
Crawler traction where wheeled access is limited
The HS crawler range combines electric power, rubber-crawler traction, pivot steering and an extension deck. Four 1.60 m chassis models add automatic hydraulic levelling outriggers.
- Crawler traction
- The rubber-crawler chassis provides a larger contact area and stronger traction than a small slab-floor tyre package. Ground bearing capacity still requires confirmation.
- Electric drive and braking
- The travel system uses sealed permanent-magnet synchronous motors with IP67 protection and electromagnetic braking.
- Platform extension
- The larger chassis use a 0.9 m extension deck. The compact chassis use a 0.6 m extension. Published extension-deck load is 113 kg.
- Levelling outriggers

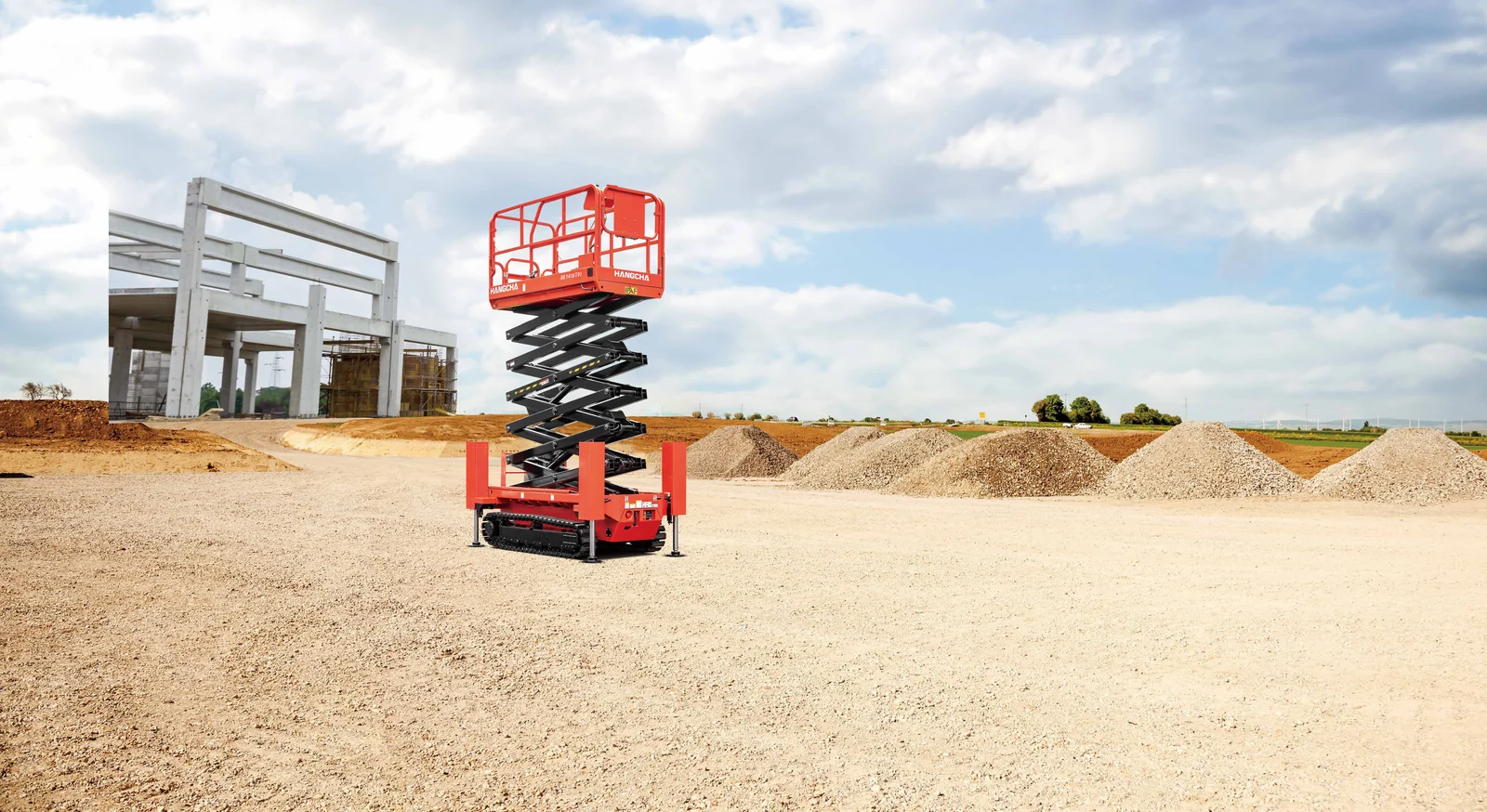

- HS0816TP, HS1016TP, HS1216TP and HS1416TP include automatic hydraulic levelling outriggers with individual outrigger control.
Performance in Real Work
Chassis width and stabilisation
The 0.78–0.83 m machines suit restricted access. The 1.60 m models add outriggers for sites where the larger stabilised chassis is appropriate.
Battery and charging
Compact models list 24 V lead-acid or lithium configurations. Larger models list 80 V lithium power. Confirm charger input, shift length and charging time.
Recommended applications

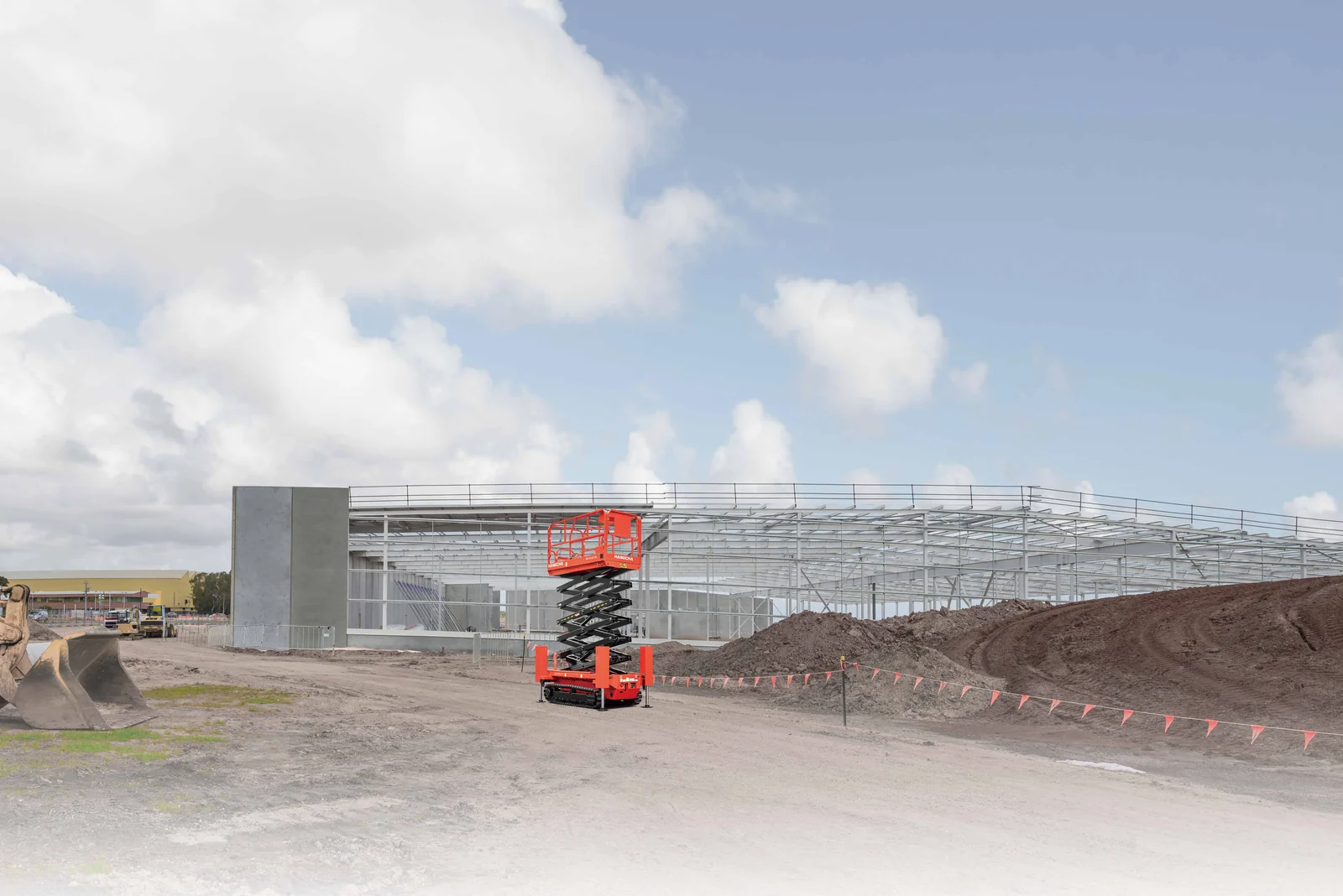

- Construction, installation and maintenance on verified uneven or sensitive ground.
- Jobs needing vertical access with crawler traction and electric power.
- Sites where access width, ground strength, slope and stabiliser footprint can be confirmed.
Application limits
- The work position needs horizontal outreach or access over an obstruction.
- The surface cannot support the machine or deployed outriggers.
- The travel path exceeds the selected model width, slope or ground-clearance limits.
Series Comparison
Compact crawler chassis
Use the 0.78–0.83 m models where access width is the primary constraint and 5.9–6.5 m working height is sufficient.
1.40 m crawler chassis
Use these models for 8–13.8 m working height without the automatic-outrigger package.
1.60 m outrigger chassis
Use the TP models with hydraulic outriggers where the wider stabilised base matches the worksite.
Compare Other Aerial Work Platforms
Different work conditions may call for a different machine. Compare the options below, or tell ForkFocus the main task and working height for selection help. If you know the model, you can request a quote directly.
Your requirement
A wheeled rough-terrain chassis may suit the site
AWP options to compare
Key difference to check
Compare ground conditions, stabilised setup, power, access dimensions and platform load with the crawler chassis.
Your requirement
You need vertical access on firm, level indoor floors
AWP options to compare
Key difference to check
Compare working height, chassis width, machine weight and platform load across the actual access path.
Your requirement
The task requires reach around an obstruction
AWP options to compare
Key difference to check
Compare working position, horizontal reach and platform load; vertical crawler access does not provide articulated outreach.
Browse by equipment type
Scissor Lifts — Vertical access with a scissor platform.
Vertical Mast Lifts — Point access, with or without a jib.
Boom Lifts — Articulating & Telescopic — Horizontal reach and access around obstacles.
Why Hangcha
Crawler traction where wheeled access is limited.
- Rubber tracks provide a larger contact area than small slab-floor wheels.
- Sealed permanent-magnet drive and electromagnetic braking support controlled travel.
- Extension decks improve access to the work position.
- Outrigger-equipped models support hydraulic levelling.
Compare the scissor lifts available from ForkFocus.
Why ForkFocus
Access equipment supply backed by material handling expertise and ForkFocus 360° service.
- Application and model choice. Compare working height, track width and platform load across compact and larger crawler chassis; distinguish outrigger-equipped TP models.
- Equipment and configuration quotation. A site description and photos help us discuss ground and setup space. The quote identifies the power and levelling configuration, inspection and transport requirements.
- One material handling supplier. Coordinate access equipment with forklifts and spare parts for the wider project.
- Support before and after shipment. Customer-appointed pre-shipment inspection, export coordination, manuals and remote after-sales assistance support the equipment purchase.
Select crawler access equipment for the surface you actually work on. Send a model request or describe the work; ForkFocus will help with the remaining selection details.
Equipment supply with ForkFocus 360° service
Inspection and shipment you can check
Confirm the ordered equipment before dispatch. Customer-appointed third-party inspection is accepted, and packing and loading are coordinated for the agreed shipment.
Fast response after delivery
7×24 after-sales support: remote troubleshooting, parts identification and applicable manuals.
Stocked parts: quick preparation through our spare parts support.
Special, non-stock and imported parts: availability depends on the requested part.
Models and core specifications
Working height, platform height, load, width and machine configuration remain attached to the selected model.
| Model | Working height | Platform height | Platform load | Extension load | Overall width | Outriggers |
|---|---|---|---|---|---|---|
| HS0608TP | 6.5 m | 4.5 m | 230 kg | 113 kg | 0.78 m | No |
| HS0408TA | 5.9 m | 3.9 m | 230 kg | 113 kg | 0.83 m | No |
| HS0608TA | 6.5 m | 4.5 m | 230 kg | 113 kg | 0.83 m | No |
| HS0814TP | 8 m | 6 m | 450 kg | 113 kg | 1.40 m | No |
| HS1014TP | 10 m | 8 m | 450 kg | 113 kg | 1.40 m | No |
| HS1214TP | 12 m | 10 m | 320 kg | 113 kg | 1.40 m | No |
| HS1414TP | 13.8 m | 11.8 m | 320 kg | 113 kg | 1.40 m | No |
| HS0816TP | 8 m | 6 m | 450 kg | 113 kg | 1.60 m | Yes |
| HS1016TP | 10 m | 8 m | 450 kg | 113 kg | 1.60 m | Yes |
| HS1216TP | 12 m | 10 m | 320 kg | 113 kg | 1.60 m | Yes |
| HS1416TP | 13.8 m | 11.8 m | 320 kg | 113 kg | 1.60 m | Yes |
Get a quote for your application
Know the model? Send the model, quantity and destination for a quotation.
Need help choosing? Tell us the working height and where the lift will be used.
ForkFocus will help you compare models and configurations, then quote the equipment. Other technical details can follow during selection.
Ask for a quoteFrequently asked questions
Which crawler models include hydraulic outriggers?
HS0816TP, HS1016TP, HS1216TP and HS1416TP include automatic hydraulic levelling outriggers.
Which models have the highest published platform load?
HS0814TP, HS1014TP, HS0816TP and HS1016TP each have a published 450 kg platform load.
Does crawler traction permit elevated work on any uneven surface?
No. Ground strength, slope, allowable inclination and stabilisation limits still apply to the selected machine.
