Long outreach
Direct telescopic reach suits open work faces; verify tailswing, exclusion area and final platform position.

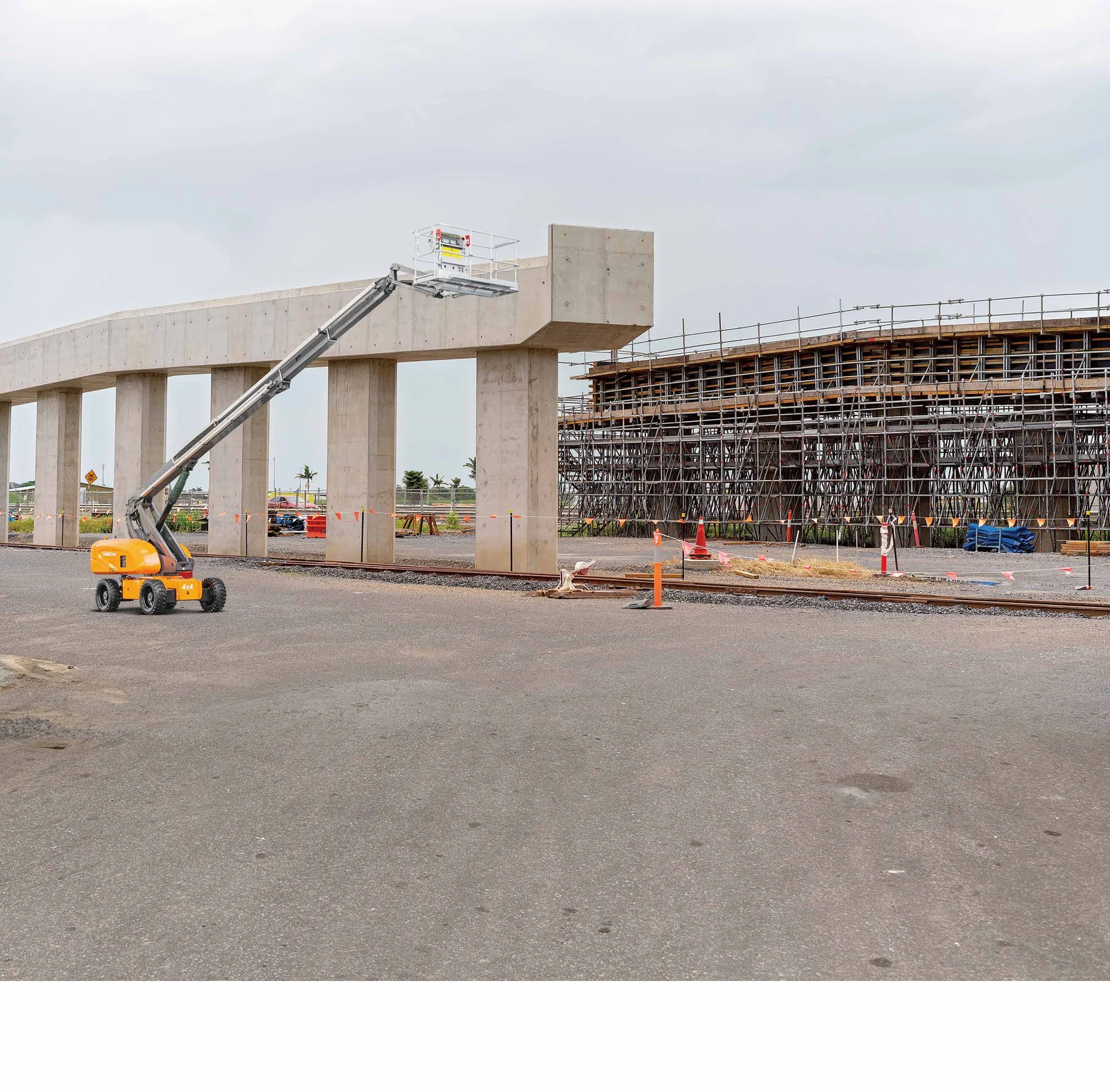

HB Electric Telescopic Boom Lifts
Carry personnel, tools and materials to elevated work positions with a telescopic electric boom. Dual-capacity operation and four-wheel drive support construction and industrial access within the applicable working height and reach limits.
ForkFocus equipment supply · Configuration support · Inspection · Export shipment · After-sales assistance
Compare models and specificationsCompare other AWP types
Ask for a quote
Long direct outreach with electric power
- Platform load at different reach positions
- The machines provide 310 kg unrestricted and 460 kg restricted platform capacity.
- Permanent-magnet drive
- Electric travel and hydraulic drive reduce local emissions while retaining published gradeability up to 45%.
- Large platform
- The 2.44 × 0.91 m platform supports personnel, tools and material within the applicable load limits at the required working position.
- Emergency power
- A separate 12 V emergency system supports controlled platform return if the main battery is unavailable.
Performance in Real Work
Restricted capacity
The 460 kg load has a smaller horizontal reach at that load than the 310 kg unrestricted rating.
Energy planning
Battery capacity, charger power, shift length, grade and travel distance control daily availability.
Recommended applications
- Industrial and construction work requiring long direct outreach.
- Sites needing electric operation with heavy platform loads.
- Open work areas that can accommodate the boom, chassis and tailswing.
Application limits
- The task requires repeated up-and-over articulation.
- Ground capacity or access dimensions are inadequate.
- The platform position exceeds the load chart for the carried load.
Series Comparison
HB230P
23.4 m working height with published 15.5 m unrestricted reach and 12.5 m restricted reach.
HB250P
25.0 m working height with 17 m unrestricted reach and 14 m restricted reach.
HB280P
28.0 m working height with 22.75 m unrestricted reach and 19.35 m restricted reach.
Compare Other Aerial Work Platforms
Different work conditions may call for a different machine. Compare the options below, or tell ForkFocus the main task and working height for selection help. If you know the model, you can request a quote directly.
Your requirement
Equipment blocks a direct approach
AWP options to compare
Key difference to check
Compare articulated reach, up-and-over height and platform load with the actual work position. The electric articulating range has different height and load limits; it is not a like-for-like HB replacement.
Your requirement
The shift or site power calls for diesel
AWP options to compare
Key difference to check
Compare working height, horizontal reach and the applicable restricted or unrestricted load chart, then check ground support and destination engine configuration.
Your requirement
The task is at a lower, confined work point
AWP options to compare
Key difference to check
Compare working height, outreach, access dimensions, machine weight and platform load. Consider a mast-and-jib machine only if its working height and horizontal reach meet the task.
Browse by equipment type
Scissor Lifts — Vertical access with a scissor platform.
Vertical Mast Lifts — Point access, with or without a jib.
Boom Lifts — Articulating & Telescopic — Horizontal reach and access around obstacles.
Why Hangcha
Long direct outreach with electric power.
- Telescopic extension provides direct reach to the work position.
- Dual-capacity ratings accommodate different task loads.
- Electric drive supports operation without an engine exhaust.
- A separate emergency system supports controlled platform return.
Compare the boom lifts available from ForkFocus.
Why ForkFocus
Access equipment supply backed by material handling expertise and ForkFocus 360° service.
- Application and model choice. Compare HB230P, HB250P and HB280P by working height and reach limits, distinguishing restricted and unrestricted load ratings.
- Equipment and configuration quotation. ForkFocus quotes power configuration and the selected machine, then coordinates inspection, transport dimensions and parts support.
- One material handling supplier. Coordinate access equipment with forklifts and spare parts for the wider project.
- Support before and after shipment. Customer-appointed pre-shipment inspection, export coordination, manuals and remote after-sales assistance support the equipment purchase.
Compare electric telescopic models for reach and carried load. Send a model request or describe the work; ForkFocus will help with the remaining selection details.
Equipment supply with ForkFocus 360° service
Inspection and shipment you can check
Confirm the ordered equipment before dispatch. Customer-appointed third-party inspection is accepted, and packing and loading are coordinated for the agreed shipment.
Fast response after delivery
7×24 after-sales support: remote troubleshooting, parts identification and applicable manuals.
Stocked parts: quick preparation through our spare parts support.
Special, non-stock and imported parts: availability depends on the requested part.
Models and core specifications
| Model | Working height | Platform height | Horizontal reach unrestricted / restricted | Platform load — unrestricted / restricted | Weight |
|---|---|---|---|---|---|
| HB230P | 23.4 m | 21.4 m | 15.5 / 12.5 m | 310 kg unrestricted 460 kg restricted | 12700 kg |
| HB250P | 25.0 m | 23.0 m | 17 / 14 m | 310 kg unrestricted 460 kg restricted | 13200 kg |
| HB280P | 28.0 m | 26.0 m | 22.75 / 19.35 m | 310 kg unrestricted 460 kg restricted | 19000 kg |
Get a quote for your application
Know the model? Send the model, quantity and destination for a quotation.
Need help choosing? Tell us the working height and where the lift will be used.
ForkFocus will help you compare models and configurations, then quote the equipment. Other technical details can follow during selection.
Ask for a quoteFrequently asked questions
How are working height and platform height used?
They are separate manufacturer values. Select from the required platform position and confirm the stated working height independently.
What determines the usable platform load?
The selected model load chart and working position determine the usable platform load. Restricted and unrestricted load ratings apply at different reach positions.
Can I request a quote before choosing the model?
Yes. Send the model, quantity and destination if you know the machine. Otherwise, tell ForkFocus the working height and application; we will help with model and configuration selection.
Talk to ForkFocus about your access equipment
Request a quotation by model, quantity and destination, or send the work height and application for selection assistance. Incomplete specifications are welcome.
