Access path
Check every doorway, turn, ramp, lift car and floor transition against the stowed machine dimensions and machine weight.
Self-Propelled Vertical Mast Lifts
Move between maintenance points with a compact electric mast lift. Non-marking tyres, controlled platform movement and a small turning space suit warehouses, exhibition halls and finished facilities.
ForkFocus equipment supply · Configuration support · Inspection · Export shipment · After-sales assistance
Compare models and specificationsCompare other AWP types
Ask for a quote
Powered vertical access in narrow indoor spaces
The HV self-propelled range combines electric travel, proportional controls, automatic pothole protection and a narrow mast chassis. Model choice depends on the required height, platform load, access dimensions and allowable floor load.
- Powered positioning
- The operator can drive the machine in its stowed and raised configurations within the published operating limits.
- Compact chassis
- Overall width is 0.76–0.82 m, supporting work in warehouses, exhibition halls and maintenance areas with restricted aisles.
- Controlled vertical travel
- Proportional controls, emergency lowering and cylinder holding valves support controlled platform movement.
- Service diagnostics
- Onboard diagnostics, automatic braking and direct component access support routine inspection and maintenance.
Performance in Real Work
Working position
Confirm platform load, personnel, tools and material against the selected model. Height alone does not define the correct machine.
Indoor operating surface
Non-marking tyres support clean floors. Slab capacity, joints, openings and local point loading still require site confirmation.
Recommended applications
- Warehouse racking, lighting and services maintenance on verified firm floors.

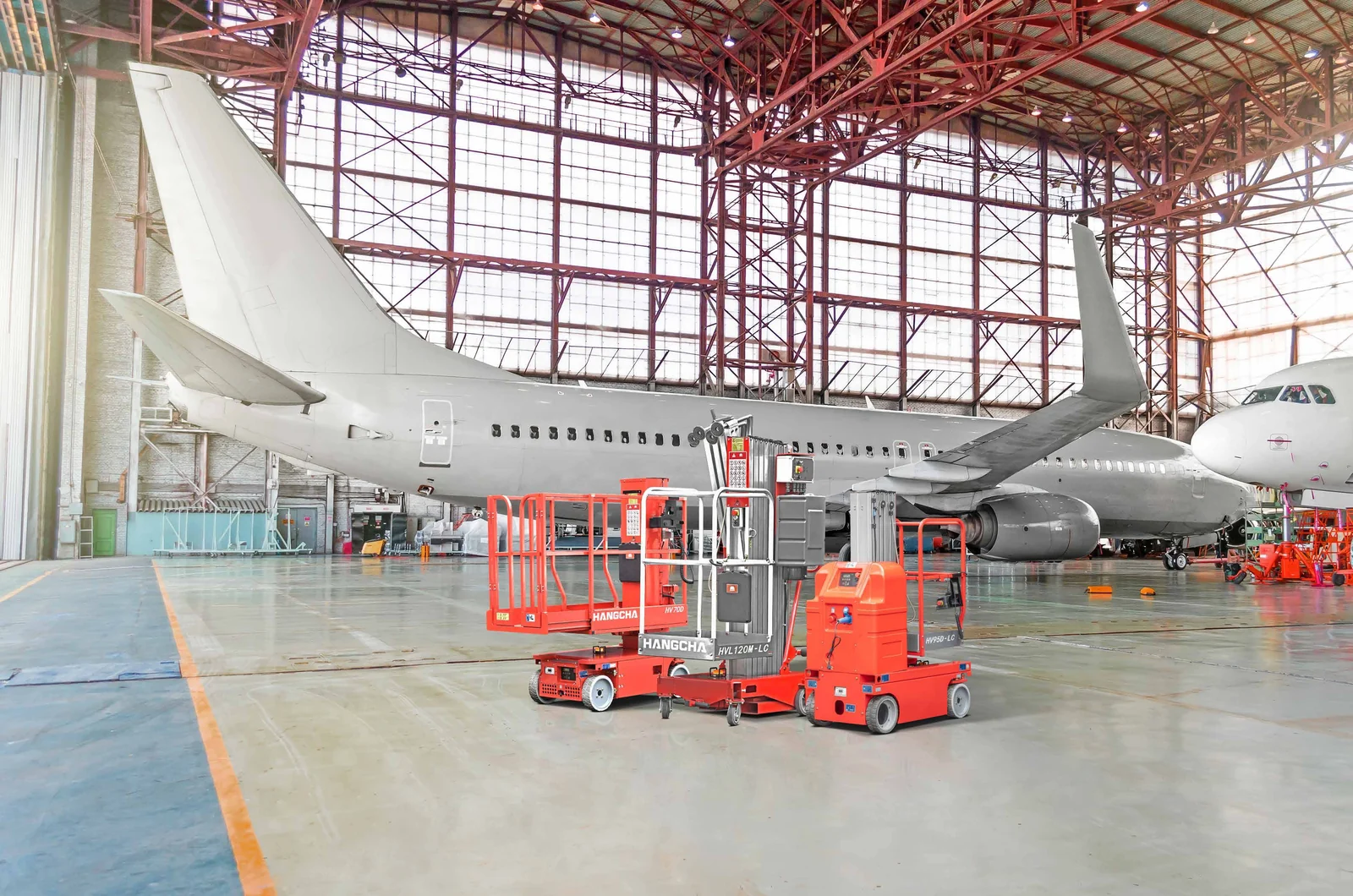

- Exhibition hall, factory and aircraft-maintenance work with restricted access.
- Jobs needing frequent powered repositioning between vertical work points.
Application limits
- The task requires horizontal outreach over machinery or building elements.
- The floor, lift or travel path cannot support the complete machine mass.
- The operating surface exceeds the model inclination or traction limit.
Series Comparison
HV60D / HV70D
Use these models for 5.6–6.8 m work where the published 227 kg platform load is required.
HV80D / HV80D-LC
Both provide 8.0 m working height; compare platform load, chassis width and machine weight.
HV95D-LC
Provides 9.5 m working height on a 0.76 m chassis with a published 125 kg platform load.
Compare Other Aerial Work Platforms
Different work conditions may call for a different machine. Compare the options below, or tell ForkFocus the main task and working height for selection help. If you know the model, you can request a quote directly.
Your requirement
Manual relocation is practical between tasks
AWP options to compare
Key difference to check
Compare working height, stowed dimensions, platform load and deployed stabiliser footprint with powered mast travel.
Your requirement
Fixed equipment blocks a straight vertical approach
AWP options to compare
Key difference to check
Compare model-specific outreach, working height, platform load and the full access path.
Your requirement
The task needs a wider platform or a different deck load
AWP options to compare
Key difference to check
Compare the personnel-plus-tool load, platform dimensions, chassis width and working height rather than point access alone.
Browse by equipment type
Scissor Lifts — Vertical access with a scissor platform.
Vertical Mast Lifts — Point access, with or without a jib.
Boom Lifts — Articulating & Telescopic — Horizontal reach and access around obstacles.
Why Hangcha
Powered vertical access in narrow indoor spaces.
- Powered repositioning reduces manual handling between work positions.
- Compact chassis dimensions suit restricted indoor spaces.
- Proportional lift controls support precise platform movement.
- Onboard diagnostics and accessible components simplify servicing.

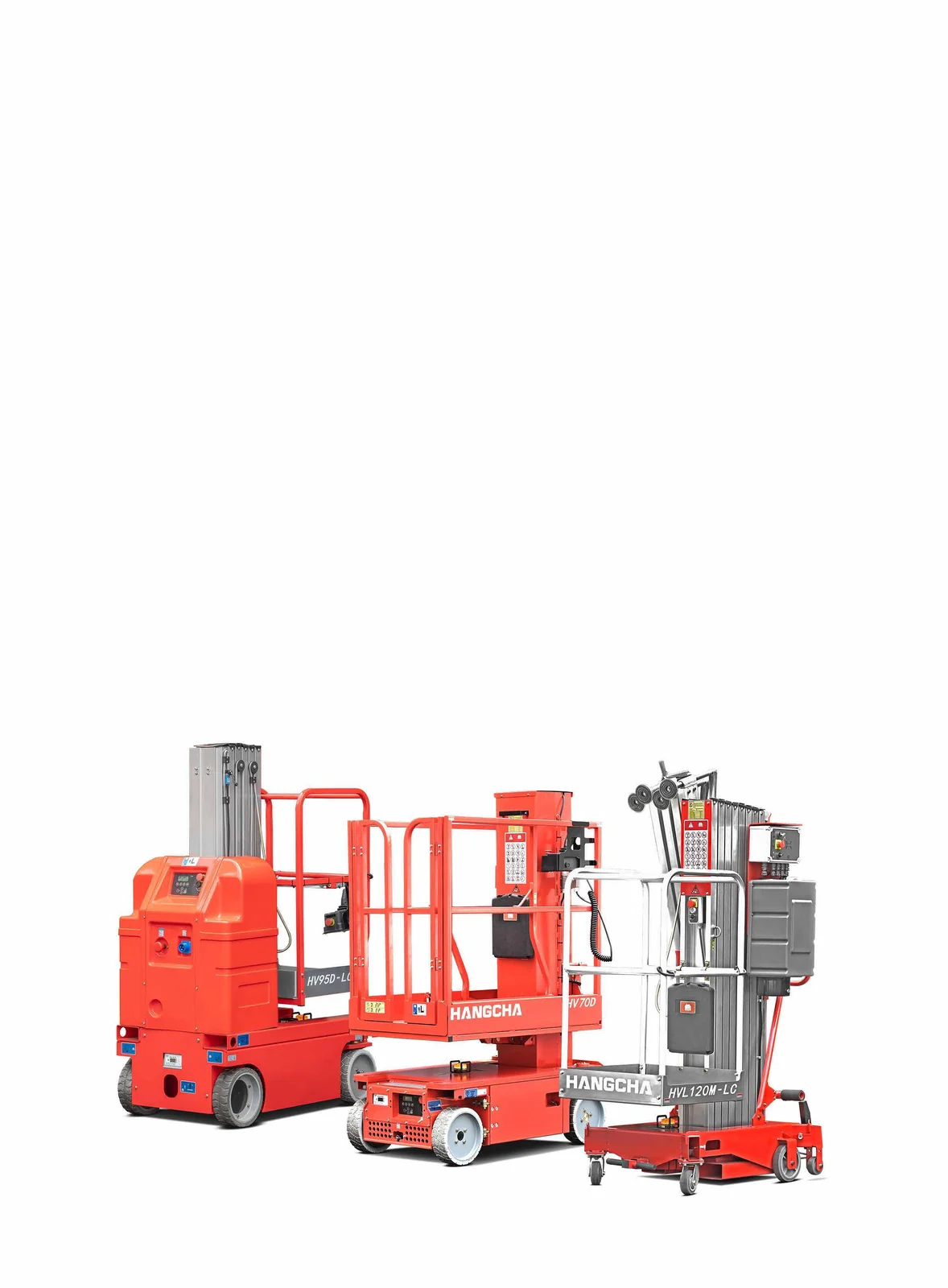

Compare the vertical mast lifts available from ForkFocus.
Why ForkFocus
Access equipment supply backed by material handling expertise and ForkFocus 360° service.
- Application and model choice. Compare height, narrow access and platform load across the five mast models, with electric travel and turning space for movement between tasks.
- Equipment and configuration quotation. ForkFocus quotes the selected mast platform and coordinates inspection, export delivery and after-sales documentation.
- One material handling supplier. Coordinate access equipment with forklifts and spare parts for the wider project.
- Support before and after shipment. Customer-appointed pre-shipment inspection, export coordination, manuals and remote after-sales assistance support the equipment purchase.
Choose powered mast access for repeated indoor maintenance. Send a model request or describe the work; ForkFocus will help with the remaining selection details.
Equipment supply with ForkFocus 360° service
Inspection and shipment you can check
Confirm the ordered equipment before dispatch. Customer-appointed third-party inspection is accepted, and packing and loading are coordinated for the agreed shipment.
Fast response after delivery
7×24 after-sales support: remote troubleshooting, parts identification and applicable manuals.
Stocked parts: quick preparation through our spare parts support.
Special, non-stock and imported parts: availability depends on the requested part.
Models and core specifications
| Model | Working height | Platform height | Platform load | Overall width | Machine weight |
|---|---|---|---|---|---|
| HV60D | 5.6 m | 3.6 m | 227 kg | 0.76 m | 810 kg |
| HV70D | 6.8 m | 4.8 m | 227 kg | 0.76 m | 980 kg |
| HV80D | 8.0 m | 6.0 m | 159 kg | 0.82 m | 1060 kg |
| HV80D-LC | 8.0 m | 6.0 m | 150 kg | 0.76 m | 1120 kg |
| HV95D-LC | 9.5 m | 7.5 m | 125 kg | 0.76 m | 1190 kg |
Get a quote for your application
Know the model? Send the model, quantity and destination for a quotation.
Need help choosing? Tell us the working height and where the lift will be used.
ForkFocus will help you compare models and configurations, then quote the equipment. Other technical details can follow during selection.
Ask for a quoteFrequently asked questions
Can these machines travel while elevated?
The listed self-propelled models are drivable at full height within the manufacturer operating limits. Site conditions and allowable inclination still apply.
Which models use a 0.76 m chassis?
HV60D, HV70D, HV80D-LC and HV95D-LC list a 0.76 m overall width.
Is working height the same as platform height?
No. Working height is the manufacturer working-height figure; platform height is the maximum platform-floor height.
Talk to ForkFocus about your access equipment
Request a quotation by model, quantity and destination, or send the work height and application for selection assistance. Incomplete specifications are welcome.
