Setup area
The deployed outrigger footprint ranges from 1.7 × 1.7 m to 2.5 × 2.3 m. Check the complete setup zone, overhead hazards and pedestrian control.
Push-Around Vertical Mast Lifts
Reach lighting, ceiling fixtures and installation points with a compact single-mast platform. Narrow transport dimensions and AC or DC lifting options suit maintenance work where a self-propelled machine is unnecessary.
ForkFocus equipment supply · Configuration support · Inspection · Export shipment · After-sales assistance
Compare models and specificationsCompare other AWP types
Ask for a quote

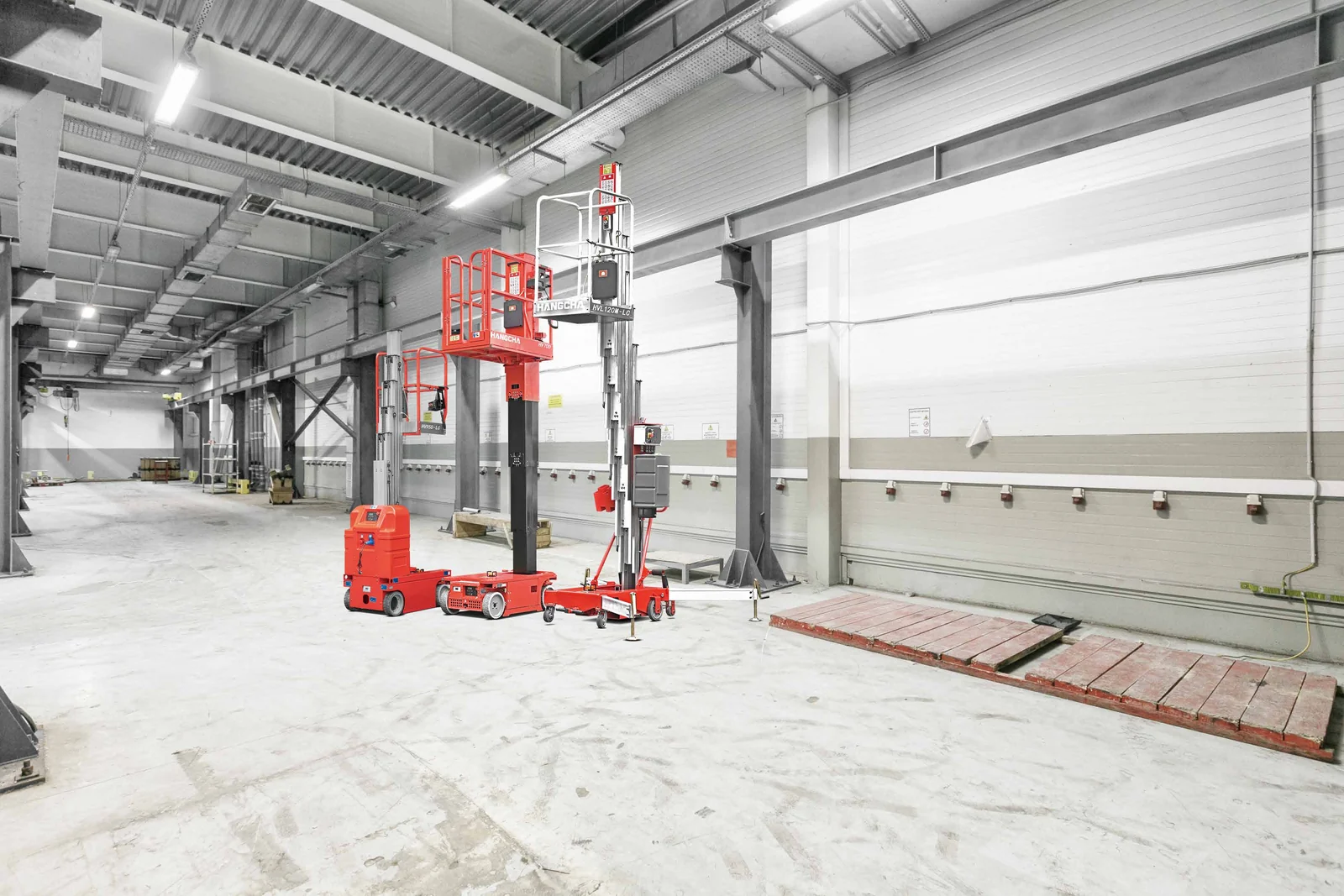

Portable vertical access for facility maintenance
The push-around range uses a narrow mast chassis and deployed stabilizers for vertical access. AC and DC configurations are listed, while forklift pockets and pickup loading provisions support site movement and transport.
- Narrow stowed width
- The listed chassis widths are 0.78 or 0.81 m. Confirm stowed height and length across the complete access path.
- Stabilizer interlock
- The outrigger system and interlock support setup on a verified firm, level surface. The deployed footprint increases with working height.
- AC or DC drive for lifting
- AC specifications list 380, 220 or 110 V supply and a 0.75 kW motor. DC specifications list a 12 V system, 1.3 kW motor and charger.
- Transport provisions
- Forklift pockets and compact machine weights support site handling. Lifting, loading and restraint still follow the selected model instructions.
Performance in Real Work
Manual movement
The machine is moved in its stowed condition. Floor gradient, thresholds, machine mass and handling method determine whether the travel path is practical.
Power selection
Select AC or DC from the available site supply, duty period and charging plan. Confirm destination voltage before shipment.
Recommended applications
- Indoor maintenance where a narrow stowed chassis and stabilizer-supported vertical lift are suitable.
- Facilities with a verified firm setup area and controlled pedestrian zone.
- Intermittent access work where manual relocation is practical.
Application limits
- Frequent long-distance repositioning requires a self-propelled machine.
- The site cannot provide the published outrigger footprint on firm, level ground.
- The job requires horizontal outreach over an obstruction.
Series Comparison
6.7–9.8 m models
HV70M-LC, HV80M-LC and HV100M-LC use a 1.7 × 1.7 m outrigger footprint and 150 kg platform load.
11.2–12.4 m models
HV110M-LC and HV120M-LC use a 2.1 × 2.0 m footprint; platform load is 150 or 136 kg.
14.0 m model
HV140M-LC has a 120 kg platform load, 0.81 m width and 2.5 × 2.3 m outrigger footprint.
Compare Other Aerial Work Platforms
Different work conditions may call for a different machine. Compare the options below, or tell ForkFocus the main task and working height for selection help. If you know the model, you can request a quote directly.
Your requirement
Work points require frequent powered repositioning
AWP options to compare
Key difference to check
Compare travel pattern, working height, platform load and doorway dimensions with manual relocation and stabiliser setup.
Your requirement
The platform must reach past an obstruction
AWP options to compare
Key difference to check
Compare working height, horizontal reach, platform load and access dimensions. Confirm the actual working height and reach limits rather than treating these machines as equivalent.
Browse by equipment type
Scissor Lifts — Vertical access with a scissor platform.
Vertical Mast Lifts — Point access, with or without a jib.
Boom Lifts — Articulating & Telescopic — Horizontal reach and access around obstacles.
Why Hangcha
Portable vertical access for facility maintenance.
- Narrow stowed dimensions support doorway access.
- Outrigger interlocks support stabilised setup.
- AC or DC lift power suits different site supplies.
- Forklift pockets help with transport and site handling.
Compare the vertical mast lifts available from ForkFocus.
Why ForkFocus
Access equipment supply backed by material handling expertise and ForkFocus 360° service.
- Application and model choice. Compare work height, narrow transport dimensions and deployed setup space for the maintenance location.
- Equipment and configuration quotation. Specify AC or DC lifting power against the site supply; ForkFocus coordinates packing, shipment, manuals and parts identification.
- One material handling supplier. Coordinate access equipment with forklifts and spare parts for the wider project.
- Support before and after shipment. Customer-appointed pre-shipment inspection, export coordination, manuals and remote after-sales assistance support the equipment purchase.
Get portable mast access with the right power and stabiliser footprint. Send a model request or describe the work; ForkFocus will help with the remaining selection details.
Equipment supply with ForkFocus 360° service

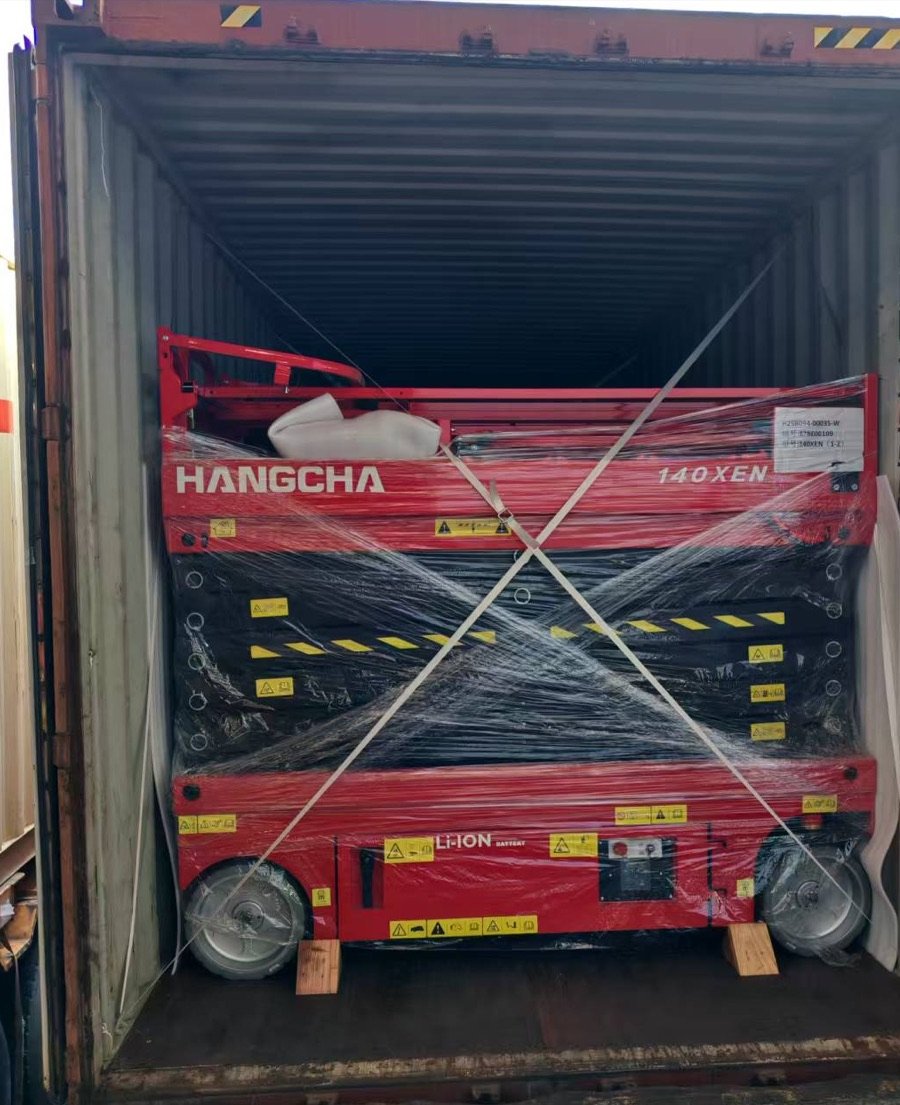

Inspection and shipment you can check
Confirm the ordered equipment before dispatch. Customer-appointed third-party inspection is accepted, and packing and loading are coordinated for the agreed shipment.
Fast response after delivery
7×24 after-sales support: remote troubleshooting, parts identification and applicable manuals.
Stocked parts: quick preparation through our spare parts support.
Special, non-stock and imported parts: availability depends on the requested part.
Models and core specifications
| Model | Working height | Platform height | Platform load | Overall width | Outrigger footprint | Weight AC / DC |
|---|---|---|---|---|---|---|
| HV70M-LC | 6.7 m | 4.7 m | 150 kg | 0.78 m | 1.7 × 1.7 m | 330 / 355 kg |
| HV80M-LC | 8.2 m | 6.2 m | 150 kg | 0.78 m | 1.7 × 1.7 m | 350 / 375 kg |
| HV100M-LC | 9.8 m | 7.8 m | 150 kg | 0.78 m | 1.7 × 1.7 m | 370 / 395 kg |
| HV110M-LC | 11.2 m | 9.2 m | 150 kg | 0.78 m | 2.1 × 2.0 m | 390 / 415 kg |
| HV120M-LC | 12.4 m | 10.4 m | 136 kg | 0.78 m | 2.1 × 2.0 m | 420 / 445 kg |
| HV140M-LC | 14.0 m | 12.0 m | 120 kg | 0.81 m | 2.5 × 2.3 m | 490 / 515 kg |
Get a quote for your application
Know the model? Send the model, quantity and destination for a quotation.
Need help choosing? Tell us the working height and where the lift will be used.
ForkFocus will help you compare models and configurations, then quote the equipment. Other technical details can follow during selection.
Ask for a quoteFrequently asked questions
Which models use the smallest outrigger footprint?
HV70M-LC, HV80M-LC and HV100M-LC list a 1.7 × 1.7 m outrigger footprint.
Are AC and DC versions the same weight?
No. Hangcha publishes separate AC and DC weights for each listed model.
Can a push-around mast lift replace a self-propelled model?
Only when manual relocation, the access path and the stabilizer setup area suit the work pattern.
