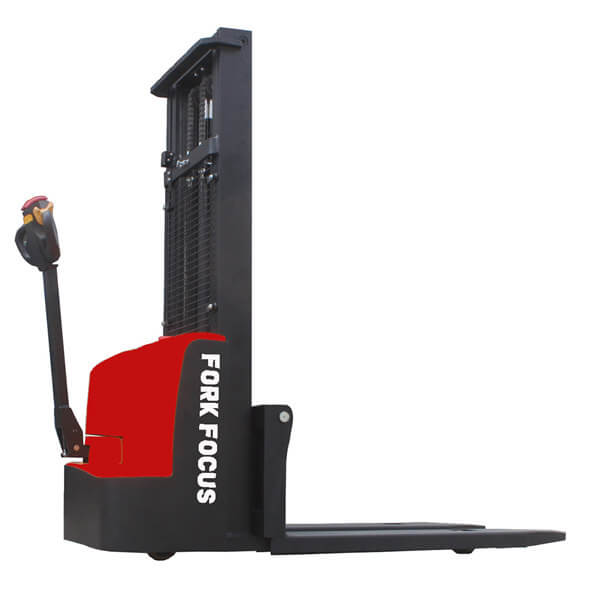

Walkie Electric Stacker 1.0-1.5T
FORKFOCUS’ Walkie pallet truck, range from 1.0T to 1.5T. Lifting mast height range from 1.6m to 3.0m.
The whole walkie electric stacker built with mechanical strong structure and smart design. Easy to operate and maintanance.Greatly enhance the productivity and efficiency.
Small tips: Price for this kind of walkie electric stacker, is much less than stand-on electric stacker. If your workload is not that heavy, this walkie electric stacker is greatly suggested.
| Model | FWPS10, FWPS12, FWPS15 |
|---|---|
| Load Capacity | 1000kg, 1200kg, 1500kg |
| Lifting Mast Height | 1.6m, 2.5m, 3.0m. |
| Delivery Time | 20 days |
Powered stacking for short indoor pallet-handling cycles
A walkie electric stacker can suit a small warehouse or production area where pallets need lifting onto racks and the operator travels on foot. It is a different purchase from a low-lift pallet truck used only for horizontal transport.
The FWPS10, FWPS12 and FWPS15 range listed on this page has nominal capacities of 1,000–1,500 kg and listed mast heights of 1.6, 2.5 and 3.0 m. ForkFocus can compare the required height with the pallet and site rather than assuming every capacity and mast combination is interchangeable.
Check the pallet, rack and operator space as one task
The load wheels and support legs must clear the pallet base and the rack position. Show the pallet underside as well as its upper dimensions; a pallet that accepts standard counterbalance forks may not accept the selected stacker arrangement.
Include tiller movement and the operator’s standing space when measuring the aisle. Review floor joints, thresholds and gradients for the exact truck instead of relying only on the unloaded chassis width.
| Purchase item | What to specify | Why it matters |
|---|---|---|
| Pallet and rack base | Fork entry, pallet bottom boards, support-leg spacing and rack access. | Confirms that the truck can pick up and place the pallet. |
| Load and working height | Maximum weight, load centre and required fork height. | Checks capacity for the actual mast position. |
| Door and headroom | Lowered mast, free lift and overhead obstructions. | Checks building access as well as rack height. |
| Daily cycles and charging | Travel distance, lift frequency, battery and charger requirements. | Matches powered handling to the operating duty. |
Details about Walkie Electric Stacker 1.0-1.5T
FORKFOCUS’ WALKIE ELECTRIC STACKER FEATURES:
- Built in high energy sealed battery, able to stand long time using.
- Bias control greatly improve the working vision. Also can avoid collision between operators and cars in the process of driving.
- Long handler operation, greatly reduce the operating force and make the operation much easier.
- Multi-function handler and integrated control: Acceleration, horn, emergency direction, lift button. All this function makes the operation more confortable and flexible.
Unique Selling Points For walkie stacker
1, All standard equipped with Curtis controller.
2, Solid steel for mast.
3, Fork distance adjustable.
4, Long handler for a easier operation.
5, Reasonable travelling/lifting speed, greatly enchance the productivity.
Battery capacity display, standard version.
Multi-functional operational handler, combine all in one.
Benefit:
- Faster delivery : 20 days.
- Spare parts supply within one week at latest.
- After sales service 24hours on line.
- Technical support or consultation in english, 0 communication obstacle.
- Built to western standards
- Assembled with high quality Japanese or western parts
- Following European ergonomic insights
- The most less-worry choice. Large quantity sales volume in a year, quality visible and expectable.
Operational video for walkie electric stacker.
ForkFocus can help compare a stacker with the alternatives
For intermittent lifting with limited travel, compare the semi-electric stacker and confirm its powered functions. Where support-leg access is the limiting factor, review a mini electric counterbalance forklift with its own aisle and capacity checks.
Send the pallet, load and rack photographs first if dimensions are incomplete. ForkFocus can identify the missing measurements and include battery, charger, wheels, mast rollers and hydraulic service identification in the configuration discussion.
Can a 1.5 tonne model carry 1.5 tonnes at every listed height?
Do not assume so. Request the applicable capacity for the exact model, mast and load centre at the required lifting height.
When does a different operator arrangement deserve comparison?
Repeated long-distance travel or a heavier duty pattern may justify another truck arrangement. Compare the handling cycle rather than selecting only the lowest initial price.
