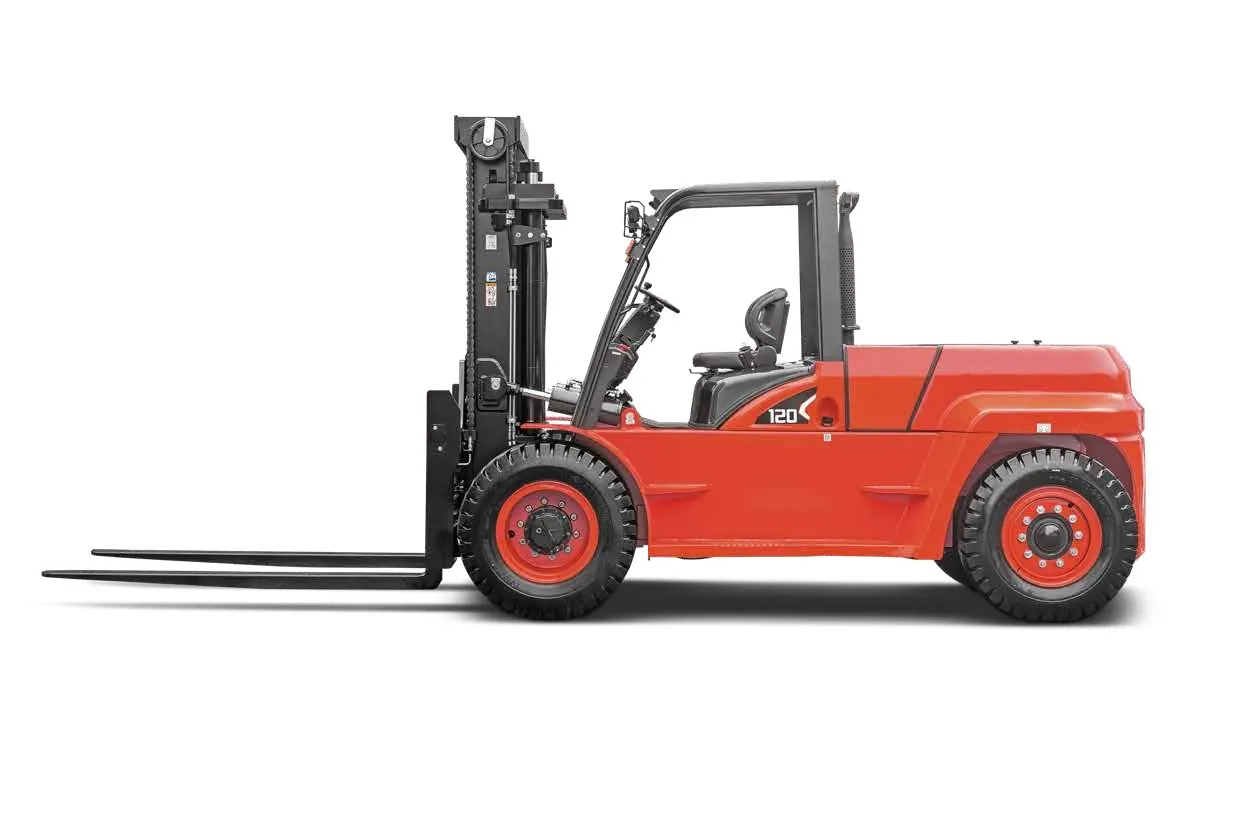

12.0 t X Series IC Forklift
The CPCD120-XRG57 is a single 12.0 t industrial platform for dense loads that are too large for a standard 8–10 t truck but do not need a 14–18 t port chassis. It is commonly considered for steel, machinery, moulds, stone blocks and heavy production-line transfer.
Where this forklift fits
The CPCD120-XRG57 is a single 12.0 t industrial platform for dense loads that are too large for a standard 8–10 t truck but do not need a 14–18 t port chassis. It is commonly considered for steel, machinery, moulds, stone blocks and heavy production-line transfer.
12.0 t at 600 mm load centre
27/30 km/h
0.39/0.43 m/s
Available models and configurations
Model suffixes identify engine, transmission, emission and market packages. ForkFocus confirms the full designation before quotation so the delivered truck, parts list and service documents match.
Product USP
118 kW industrial diesel
The Yuchai YC6J160-T300 provides 118 kW and 650 Nm for heavy starts and grade work.
Useful yard speed
Travel speed reaches 27/30 km/h, important when the truck serves multiple loading points.
Controlled heavy lifting
Lift speed of 0.39/0.43 m/s balances cycle output with load stability at 12.0 t.
Port-type powertrain
A 2-forward/2-reverse powershift transmission suits frequent directional changes in loading work.
Heavy-load braking
Caliper disc braking and available heavy-duty packages address higher kinetic energy than standard forklifts.
Attachment capability
Fork positioners and tyre handlers can be configured after carriage, hydraulic and residual-capacity checks.
Performance in real work
Travel: 27/30 km/h. Lift: 0.39/0.43 m/s.
Gradeability: 28/20%. Attachment hydraulics: 15 MPa.
These figures become useful only after tyre type, engine package, load centre, mast height and attachment weight are confirmed. ForkFocus compares the complete working cycle—not one catalogue number.
Five selection points from practical forklift work
- Do not buy a 12.0 t truck from weight alone. Confirm load centre, fork length, mast height and the load drawing.
- Check bridge plates, ramps and floor loading; a 12.0 t forklift has much higher axle loads than a 10.0 t unit.
- Tyre handler and long-fork applications need attachment stability calculations, not only hydraulic pressure.
- For long outdoor shifts, confirm radiator cleaning access and ambient-temperature package.
- Shipping dimensions and lifting points must be planned before dispatch because this truck may not move under standard container rules.
Choose the platform by duty, not only price
| Platform | Practical difference | Best fit |
|---|---|---|
| X Series 8.0–10.0 t | More compact and lower operating weight | Loads that remain within 600 mm load-centre capacity |
| X Series 12.0 t | Dedicated bridge between standard and heavy-duty trucks | Dense machinery, steel and industrial loads |
| X Heavy Duty 14–18 t | Heavier axle, brake and cab packages | Higher load centres and severe port/steel duty |
Why Hangcha
The 12.0 t X platform fills an important capacity gap, allowing customers to avoid overspecifying a 14–18 t heavy-duty truck when the route and load do not require it.
Its engine, powershift transmission, cooling and heavy-load options are configured as an industrial truck rather than a scaled-up small forklift.
Why ForkFocus
We turn the model into a checked working specification. ForkFocus verifies the load drawing, load centre, fork section, mast height, tyre pressure, route and shipping method before releasing a 12.0 t order. Fork positioners, tyre handlers, planned service parts and inspection documents can be coordinated within the same project.
Planned forklift parts, the correct Forklift Attachment and flexible shipment planning are integrated before dispatch.

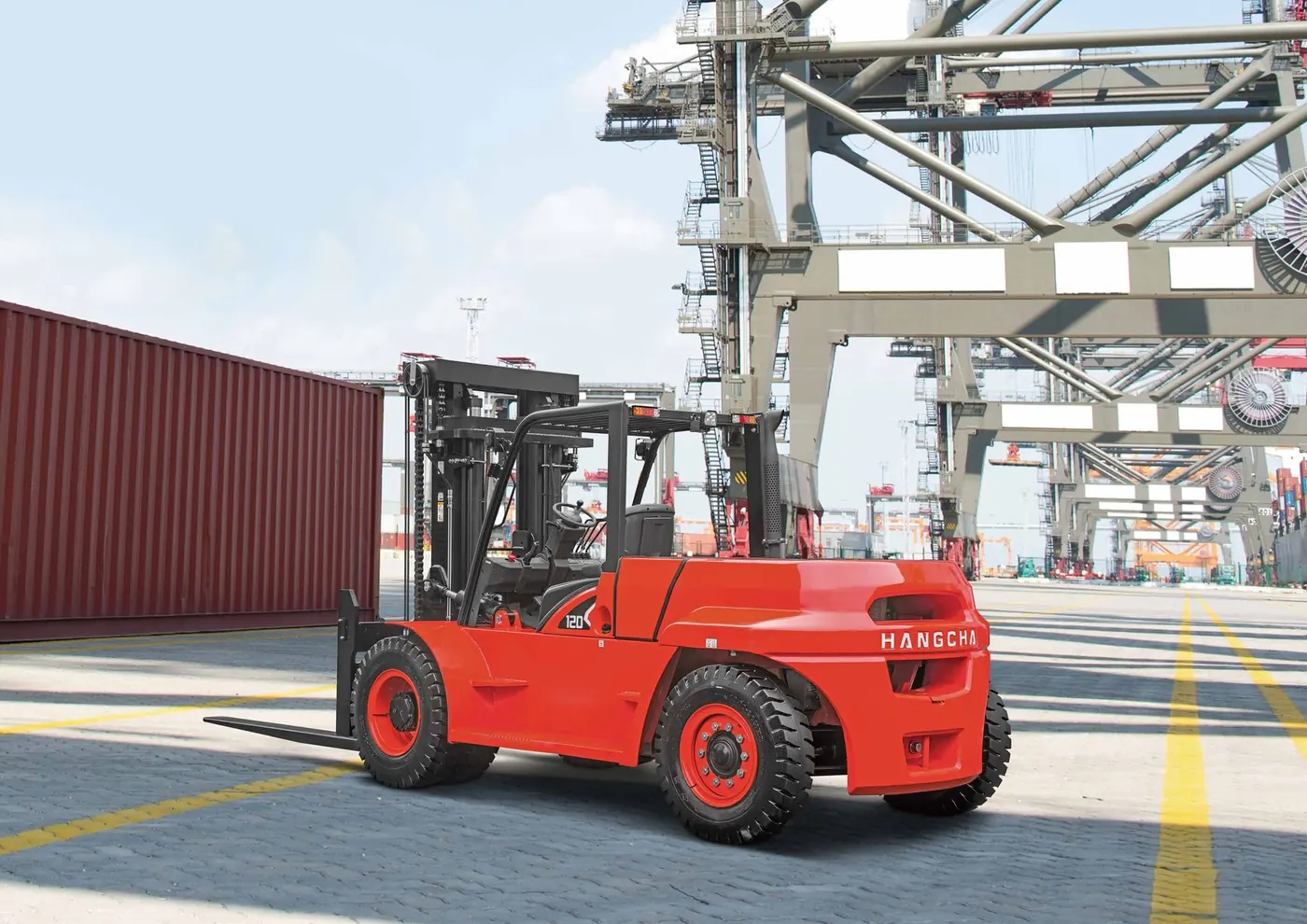

See the equipment in operation
A relevant working video shows load behaviour, operator visibility and cycle flow more clearly than a specification table alone.
ForkFocus 360 Service continues from technical confirmation through inspection, documents, delivery and after-sales coordination.
Frequently asked questions
Is this page for several capacities?
No. It covers the CPCD120-XRG57 12.0 t platform.
Can it handle 12.0 t at any load centre?
No. Rated capacity is stated at 600 mm. Longer loads or attachments require a residual-capacity calculation.
What is the normal delivery time?
About 45 days after technical confirmation and deposit, subject to engine, mast and attachment availability.
What warranty applies?
Normally 1–2 years or 2,000 working hours, whichever comes first. Special project terms can be discussed.
How is it shipped?
ForkFocus plans Ro-Ro, flat rack, breakbulk or other suitable methods after confirming dimensions and destination conditions.
Confirm the forklift around the real load
Send the load dimensions, weight, lift height, route and required attachment. Our forklift team normally responds within two working hours.
