Platform and stabiliser geometry
The platform grows from 2150 × 1140 mm to 2750 × 1600 mm. Deployed stabiliser size grows from 2180 × 2730 mm to 3520 × 4140 mm.
XEQ Push-Around and Walking-Assist Scissor Lifts
Provide room for personnel, tools and materials with a 480 kg platform load. Choose manual push-around or electric walking assist to suit repositioning between tasks, then deploy the stabilisers for elevated work.
ForkFocus equipment supply · Configuration support · Inspection · Export shipment · After-sales assistance
Compare models and specificationsCompare other AWP types
Ask for a quote

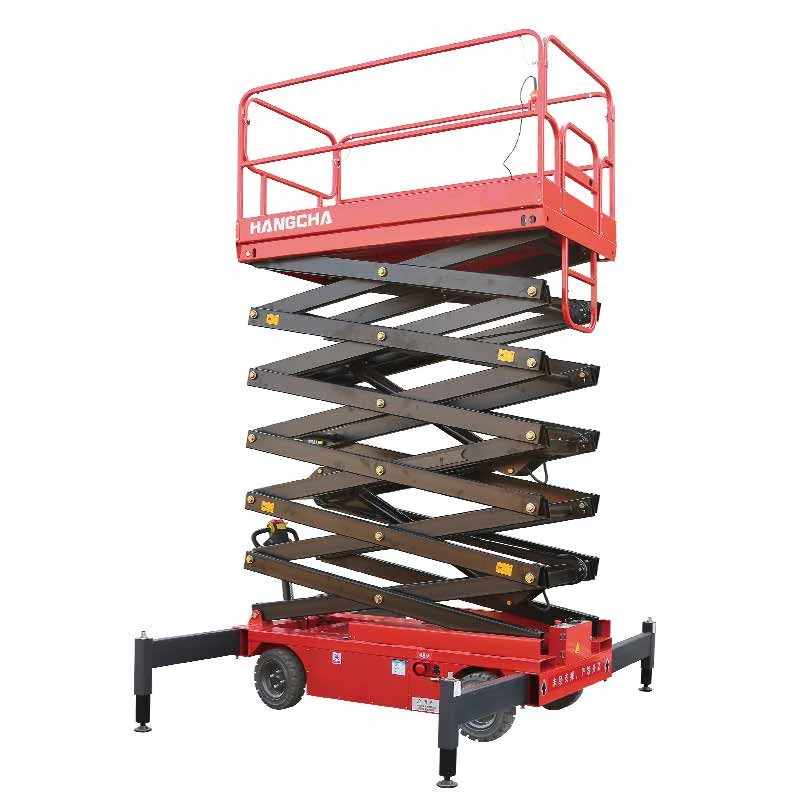

A stable work platform for installation at height
The XEQ range combines a 48 V lifting system, self-locking support legs and model-specific platform, chassis and stabiliser dimensions. Electric walking assist is an optional configuration.
- Push-around chassis
- The base machine is repositioned manually and stabilised before lifting. Confirm floor condition, machine weight and stabiliser footprint.
- Electric walking assist
- The optional drive configuration uses an electric drive motor. Published travel speed is 4.5 km/h and published maximum slope rating is 15%.
- Support-leg arrangement

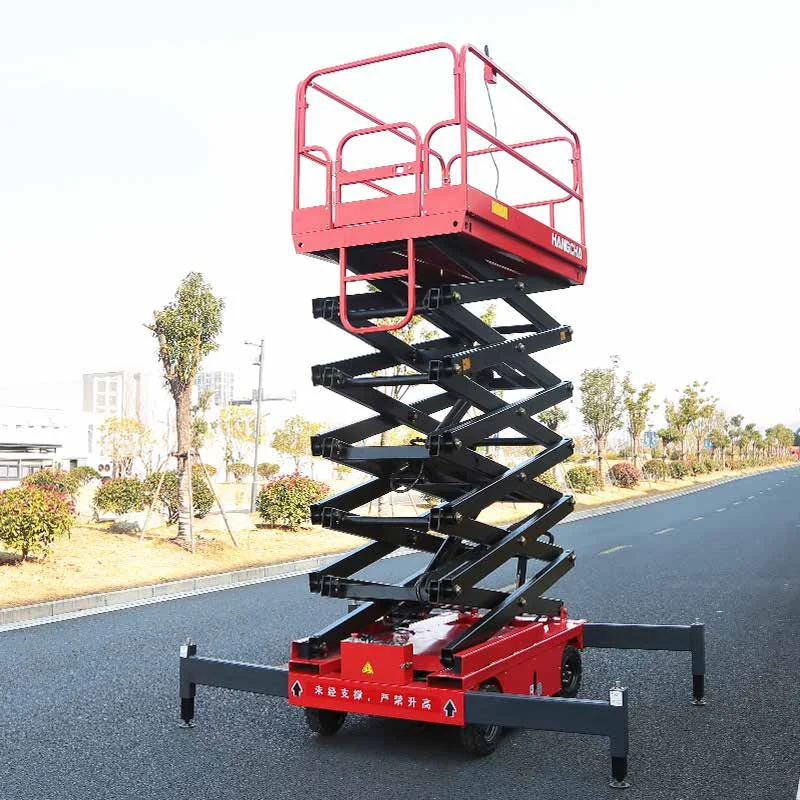

- Four self-locking stabiliser legs support the machine during elevated operation. The deployed footprint increases with platform height and chassis size.
- Operator controls
- An integrated portable control box, emergency controls, sealed charging port and visible level indicator support normal setup and operation.
Performance in Real Work
Machine weight and floor loading
Published machine weight rises from 1300 kg to 3930 kg. Confirm floor strength, point loading and access to the work position.
Walking-assist operating limit
Electric drive helps reposition the machine at ground level. It does not remove the requirement to deploy the stabilisers before lifting.
Recommended applications
- Maintenance and installation work where the machine can be positioned and stabilised on a suitable surface.
- Tasks requiring a larger 480 kg platform load with model-specific deck dimensions.
- Sites where transport dimensions, machine weight and the deployed stabiliser footprint can be confirmed.
Application limits
- The job requires continuous self-propelled travel while the platform is elevated.
- The floor or ground cannot support the machine and stabiliser reactions.
- The work position requires horizontal outreach or up-and-over access.
Compare Other Aerial Work Platforms
Different work conditions may call for a different machine. Compare the options below, or tell ForkFocus the main task and working height for selection help. If you know the model, you can request a quote directly.
Your requirement
Work points require frequent powered repositioning
AWP options to compare
Key difference to check
Compare travel pattern, access dimensions and platform load. XEQ walking assist moves the machine at ground level; stabilisers are still required before lifting.
Your requirement
A structure blocks vertical access
AWP options to compare
Key difference to check
Compare working height, up-and-over reach and platform load. A boom reaches different work positions and has a different platform load from the stabiliser-supported 480 kg XEQ platform.
Browse by equipment type
Scissor Lifts — Vertical access with a scissor platform.
Vertical Mast Lifts — Point access, with or without a jib.
Boom Lifts — Articulating & Telescopic — Horizontal reach and access around obstacles.
Why Hangcha
A stable work platform for installation at height.
- A spacious platform supports installation and maintenance tasks.
- Manual or optional electric movement suits different repositioning needs.
- Self-locking stabiliser legs support a firm, level setup.
- Portable controls and emergency functions keep operation accessible.
Compare the scissor lifts available from ForkFocus.
Why ForkFocus
Access equipment supply backed by material handling expertise and ForkFocus 360° service.
- Application and model choice. Compare platform height, task load and deployed stabiliser space before specifying manual movement or electric walking assist.
- Equipment and configuration quotation. The quotation identifies the movement option and lifting power, with packing, manuals and spare parts assistance for the selected machine.
- One material handling supplier. Coordinate access equipment with forklifts and spare parts for the wider project.
- Support before and after shipment. Customer-appointed pre-shipment inspection, export coordination, manuals and remote after-sales assistance support the equipment purchase.
Choose push-around or walking assist for your installation work. Send a model request or describe the work; ForkFocus will help with the remaining selection details.
Equipment supply with ForkFocus 360° service
Inspection and shipment you can check
Confirm the ordered equipment before dispatch. Customer-appointed third-party inspection is accepted, and packing and loading are coordinated for the agreed shipment.
Fast response after delivery
7×24 after-sales support: remote troubleshooting, parts identification and applicable manuals.
Stocked parts: quick preparation through our spare parts support.
Special, non-stock and imported parts: availability depends on the requested part.
Models and core specifications
Choose the platform height and setup footprint
7–11 m platform height: 90XEQ, 110XEQ and 130XEQ share a 2150 × 1140 mm deck and a 2180 × 2730 mm stabiliser footprint.
12–14 m platform height: 140XEQ and 160XEQ use a larger 2500 × 1260 mm deck and a 2560 × 2890 mm stabiliser footprint. The 16 m 180XEQ increases the deck and deployed footprint again.
All six carry 480 kg, so height alone does not settle the choice: compare the available setup area and transport dimensions, then choose manual movement or electric walking assist. These are platform heights, not working heights.
Platform height, platform size, stabiliser footprint, transport dimensions and machine weight increase across the six-model family.
| Model | Platform height | Platform load | Platform size | Stabiliser footprint | Transport dimensions | Machine weight |
|---|---|---|---|---|---|---|
| 90XEQ | 7 m | 480 kg | 2150 × 1140 mm | 2180 × 2730 mm | 2180 × 1285 × 2120 mm | 1300 kg |
| 110XEQ | 9 m | 480 kg | 2150 × 1140 mm | 2180 × 2730 mm | 2180 × 1285 × 2240 mm | 1540 kg |
| 130XEQ | 11 m | 480 kg | 2150 × 1140 mm | 2180 × 2730 mm | 2180 × 1285 × 2370 mm | 1810 kg |
| 140XEQ | 12 m | 480 kg | 2500 × 1260 mm | 2560 × 2890 mm | 2550 × 1390 × 2656 mm | 2140 kg |
| 160XEQ | 14 m | 480 kg | 2500 × 1260 mm | 2560 × 2890 mm | 2550 × 1390 × 2835 mm | 2730 kg |
| 180XEQ | 16 m | 480 kg | 2750 × 1600 mm | 3520 × 4140 mm | 2920 × 1980 × 3430 mm | 3930 kg |
The 480 kg value is the published maximum platform load. Check floor loading, stabiliser reactions, transport access and local operating requirements for the selected machine.
Get a quote for your application
Know the model? Send the model, quantity and destination for a quotation.
Need help choosing? Tell us the working height and where the lift will be used.
ForkFocus will help you compare models and configurations, then quote the equipment. Other technical details can follow during selection.
Ask for a quoteFrequently asked questions
What is the difference between push-around and walking-assist XEQ versions?
The push-around machine is repositioned manually. The optional walking-assist configuration adds an electric drive motor, 4.5 km/h published drive speed and 15% published slope rating.
What is the platform load across the XEQ family?
All six models have a published maximum platform load of 480 kg.
Why must the stabiliser footprint be checked before selection?
The deployed stabiliser footprint changes with chassis size. Confirm the available floor area, ground strength and obstruction clearance before operation.
