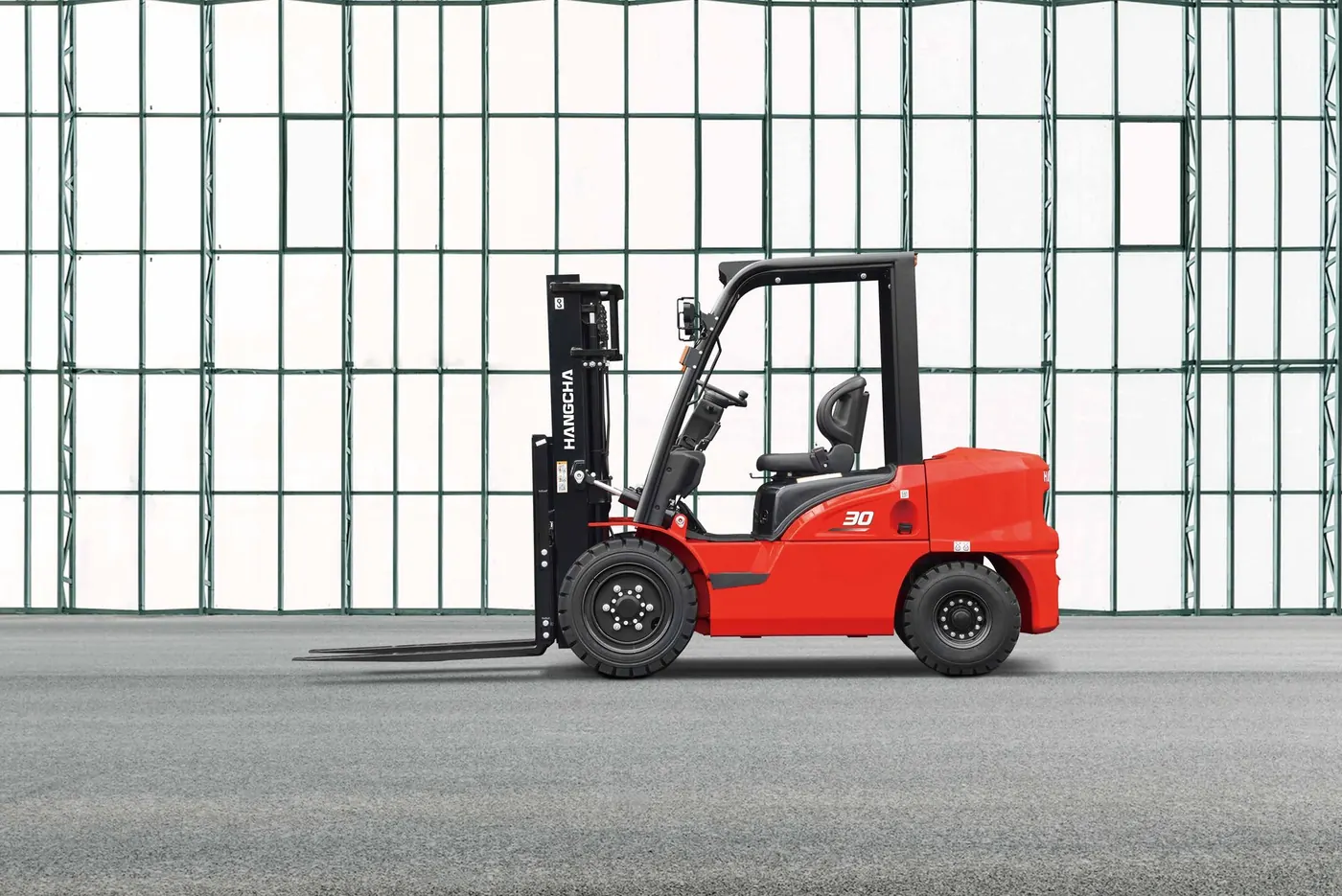

1.5–3.8 t X Series IC Forklifts
This range is the practical X-platform choice for mixed factory and yard work when a compact chassis still needs stronger cooling, better visibility and a broad diesel or LPG engine choice. It sits above the basic A platform for fleets that run longer shifts or make repeated outdoor travel.
Where this forklift fits
This range is the practical X-platform choice for mixed factory and yard work when a compact chassis still needs stronger cooling, better visibility and a broad diesel or LPG engine choice. It sits above the basic A platform for fleets that run longer shifts or make repeated outdoor travel.
1.5–3.8 t at 500 mm load centre
16.5/17.5–20/21 km/h
0.38/0.45–0.55/0.60 m/s
Available models and configurations
Model suffixes identify engine, transmission, emission and market packages. ForkFocus confirms the full designation before quotation so the delivered truck, parts list and service documents match.
Product USP

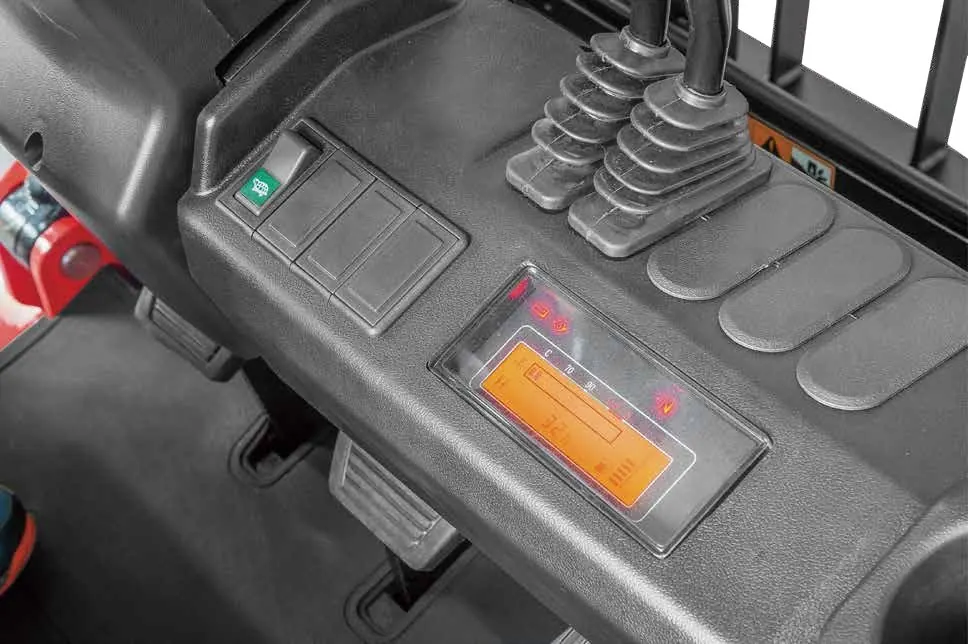

Clearer mast view
The forward field of view is increased by about 15%, helping the operator align forks faster at pallet openings and rack faces.
Lower vibration and noise
A full-floating powertrain structure cuts transmitted vibration by about 10%, while the revised layout reduces noise by roughly 3 dB.
Cooling for longer shifts
A plate-fin radiator and revised airflow reduce water and oil temperature by around 10°C—important for repeated outdoor cycles.
More operator space
Legroom is increased by about 30%, a real advantage when the operator mounts and dismounts frequently.
Common-rail efficiency
Applicable engine packages can reduce fuel consumption by about 10% and exhaust emissions by about 35%.
Attachment-ready hydraulics
Depending on capacity, 145–175 bar auxiliary pressure supports sideshifters, fork positioners and application-matched clamps.
Performance in real work
Travel: 16.5/17.5–20/21 km/h. Lift: 0.38/0.45–0.55/0.60 m/s.
Gradeability: 15–25%. Attachment hydraulics: 145–175 bar.
These figures become useful only after tyre type, engine package, load centre, mast height and attachment weight are confirmed. ForkFocus compares the complete working cycle—not one catalogue number.
Five selection points from practical forklift work
- Choose diesel for long outdoor travel and sustained drawbar work; choose LPG where cleaner indoor–outdoor operation is required and fuel supply is reliable.
- Do not select only by nominal capacity. Mast height, fork length, attachment weight and load centre can reduce residual capacity sharply on a compact truck.
- For two- or three-shift work, specify the engine, radiator package and ambient temperature together; peak travel speed does not prove thermal stability.
- A sideshifter is useful for pallet alignment, but carton clamps or paper roll clamps require a complete hydraulic and residual-capacity review.
- Confirm local emission requirements before fixing the engine suffix; similar model names can carry different engines, electrical systems and parts lists.
Choose the platform by duty, not only price
| Platform | Practical difference | Best fit |
|---|---|---|
| A Series 1.0–3.8 t | Lower initial investment and a familiar mechanical layout | Clear, standard-duty applications |
| A2 Series 1.5–3.8 t | Improved visibility, cooling and service access over A | Customers wanting more refinement without moving to X |
| X Series 1.5–3.8 t | Stronger duty-cycle, cooling and operator package | Higher utilisation and repeated indoor–outdoor travel |
Why Hangcha
The overlapping A, A2 and X platforms allow the truck to be matched to the duty level instead of forcing every fleet into one price point.
The X platform adds measurable visibility, cooling, vibration and service improvements that matter during repeated material-handling cycles.
Why ForkFocus
We turn the model into a checked working specification. ForkFocus checks load centre, mast height, tyre choice, engine suffix, auxiliary hydraulics and the required Forklift Attachment before confirming the final truck. For mixed orders, planned service parts and shipment can be coordinated with the forklift as one project.
Planned forklift parts, the correct Forklift Attachment and flexible shipment planning are integrated before dispatch.
See the equipment in operation
A relevant working video shows load behaviour, operator visibility and cycle flow more clearly than a specification table alone.
ForkFocus 360 Service continues from technical confirmation through inspection, documents, delivery and after-sales coordination.
Frequently asked questions
Is the X Series better than the A2 Series for every customer?
No. X is the stronger choice for higher utilisation, outdoor travel and more demanding duty. A2 can be more economical for controlled, medium-duty work.
Can this range work with a carton clamp or paper roll clamp?
Yes, after confirming load size, weight, packaging surface, required opening range, hydraulic flow and residual capacity.
What is the normal delivery time?
Small-capacity forklifts are normally planned at about 30 days after technical confirmation and deposit, subject to engine and mast availability.
What warranty applies?
Normally 1–2 years or 2,000 working hours, whichever comes first. Special terms may be agreed for special orders.
What are the normal payment terms?
Normally 30% deposit and 70% balance before delivery. Special terms can be discussed for special orders.
Confirm the forklift around the real load
Send the load dimensions, weight, lift height, route and required attachment. Our forklift team normally responds within two working hours.
