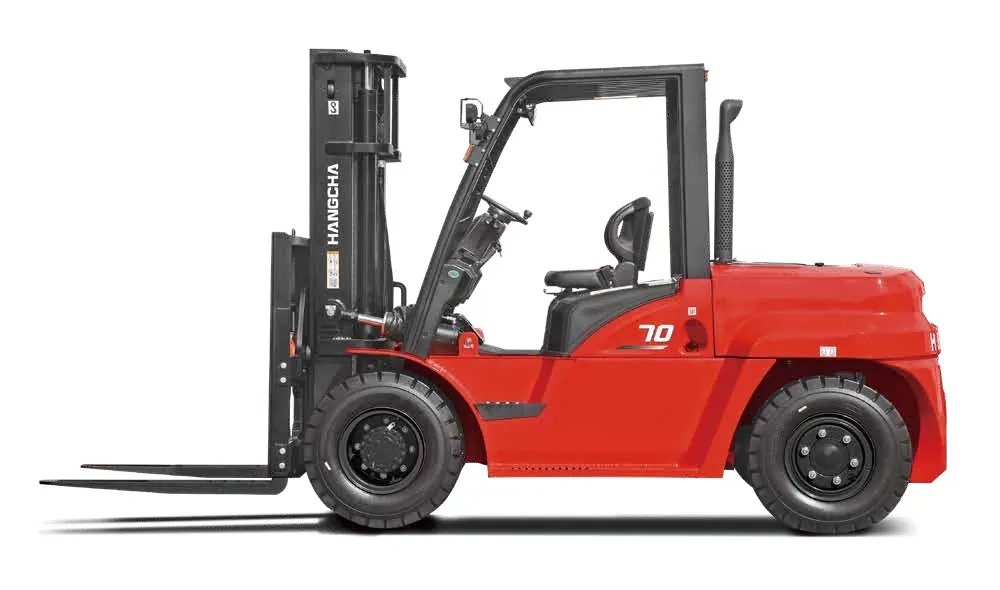

5.0–10.0 t X Series IC Forklifts
This large-frame X Series covers demanding factory yards, steel, timber, paper, machinery and loading work. The 600 mm load centre, high travel speed, port-type transmission options and heavy attachment hydraulics place it above the smaller 4–5 t platform.
Where this forklift fits
This large-frame X Series covers demanding factory yards, steel, timber, paper, machinery and loading work. The 600 mm load centre, high travel speed, port-type transmission options and heavy attachment hydraulics place it above the smaller 4–5 t platform.
5.0–10.0 t at 600 mm load centre
27/30–28/31 km/h
0.30/0.32–0.54/0.58 m/s
Available models and configurations
Model suffixes identify engine, transmission, emission and market packages. ForkFocus confirms the full designation before quotation so the delivered truck, parts list and service documents match.
Product USP
High yard productivity
Travel speed reaches 30–31 km/h unloaded, reducing non-productive travel time on long outdoor routes.
Strong lifting performance
Lift speed reaches up to 0.54/0.58 m/s on selected 5–7 t models, supporting repeated truck loading cycles.
Industrial engine packages
Isuzu 6BG1 and Cummins QSF3.8 options provide proven torque and service familiarity for export markets.
Heavy attachment hydraulics
190–195 bar auxiliary pressure supports fork positioners, rotators, paper roll clamps and other high-demand equipment after calculation.
Brake choice by duty
Standard and wet-brake options allow the brake system to follow dust, slope, cycle frequency and maintenance conditions.
Cooling and driveline control
Independent oil cooling and port-type transmission options improve thermal control in sustained outdoor work.
Performance in real work
Travel: 27/30–28/31 km/h. Lift: 0.30/0.32–0.54/0.58 m/s.
Gradeability: up to 43% by model. Attachment hydraulics: 190–195 bar.
These figures become useful only after tyre type, engine package, load centre, mast height and attachment weight are confirmed. ForkFocus compares the complete working cycle—not one catalogue number.
Five selection points from practical forklift work
- At 5–10 t, confirm the load centre in millimetres. A 10 t capacity at 600 mm is not the same as 10 t at 900 or 1,200 mm.
- Long forks and hydraulic attachments create a large forward moment; residual capacity must be calculated before quotation.
- For steel, paper and timber work, tyre type and ground pressure can be as important as engine power.
- Wet brakes are worth considering in dusty, wet or high-cycle work where open brakes create frequent maintenance.
- Plan service parts around the engine and transmission suffix, not only the base model CPCD number.
Choose the platform by duty, not only price
| Platform | Practical difference | Best fit |
|---|---|---|
| X Series 4.0–5.0 t | More compact chassis and 500 mm load centre | Heavy pallet work in tighter areas |
| X Series 5.0–10.0 t | Large frame, 600 mm load centre and higher travel output | Long yard routes and heavier industrial loads |
| X Heavy Duty 6–48 t | Purpose-built axle, brake and structure packages | Severe steel, port and breakbulk duty |
Why Hangcha
The X range continues from standard industrial capacities into large-frame and heavy-duty trucks, making fleet expansion easier without changing the overall service ecosystem.
Engine, transmission, brake, mast and attachment packages can be configured for the load and the duty cycle rather than only the nominal tonne figure.
Why ForkFocus
We turn the model into a checked working specification. ForkFocus reviews the load drawing, route, tyre choice, fork section, mast height, attachment weight and residual capacity. We also coordinate planned service parts, inspection documents and flexible shipment so the truck reaches the site as a workable material-handling package.
Planned forklift parts, the correct Forklift Attachment and flexible shipment planning are integrated before dispatch.

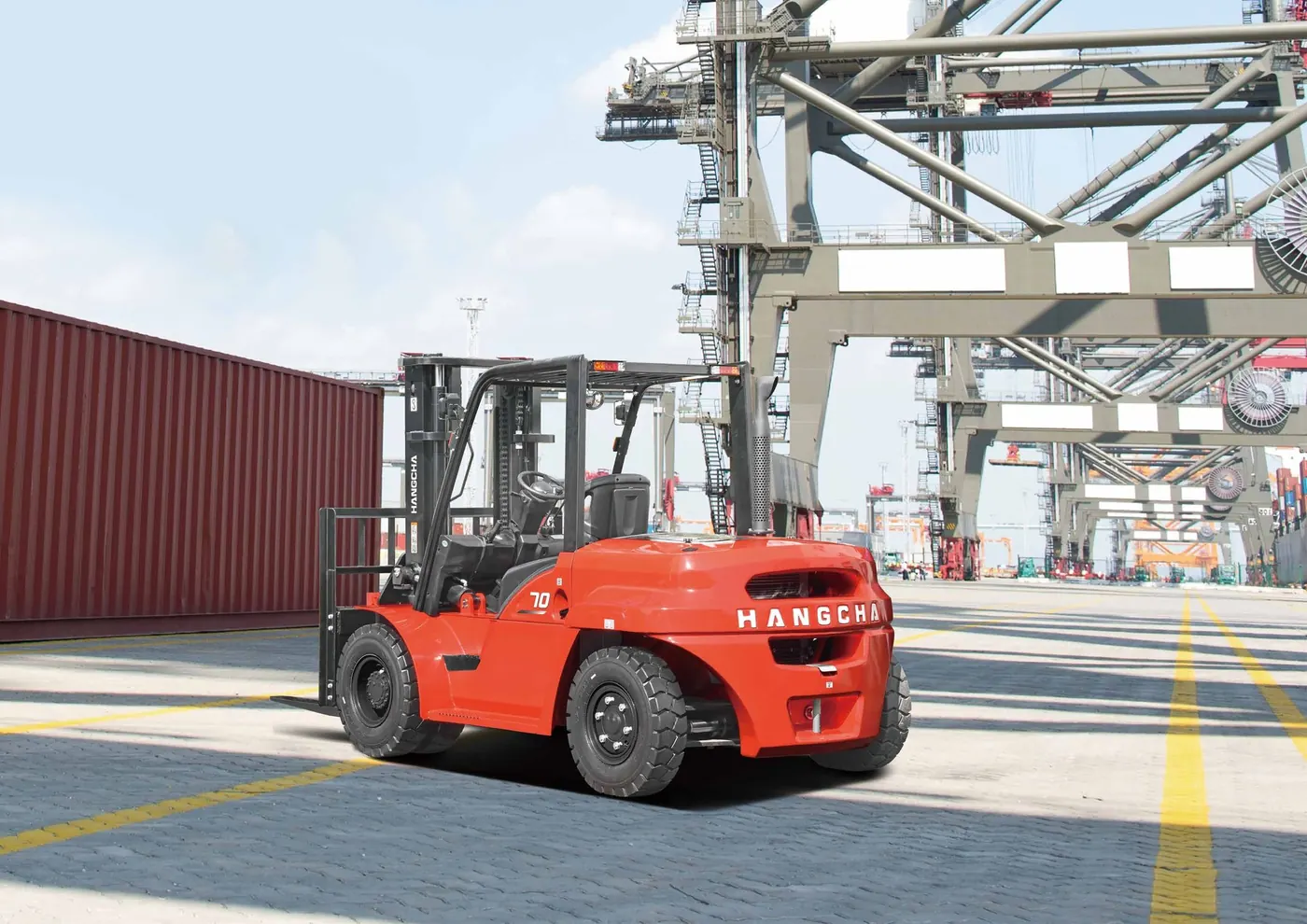

See the equipment in operation
A relevant working video shows load behaviour, operator visibility and cycle flow more clearly than a specification table alone.
ForkFocus 360 Service continues from technical confirmation through inspection, documents, delivery and after-sales coordination.
Frequently asked questions
Why is the load centre critical on this range?
Because heavy industrial loads are often long. Moving the load centre forward can reduce safe capacity even when the load weight is below the nameplate.
Which engines are commonly available?
Available configurations include Isuzu 6BG1 and Cummins QSF3.8 packages; availability and emission stage are confirmed for the destination market.
What is the normal delivery time?
Large-capacity trucks through heavy-duty configurations are normally planned at about 45 days after technical confirmation and deposit.
What warranty applies?
Normally 1–2 years or 2,000 working hours, whichever comes first, with special terms available for special projects.
Can a paper roll clamp or rotator be installed?
Yes, after checking attachment weight, lost load centre, hydraulic flow/pressure, carriage class and residual capacity.
Confirm the forklift around the real load
Send the load dimensions, weight, lift height, route and required attachment. Our forklift team normally responds within two working hours.
