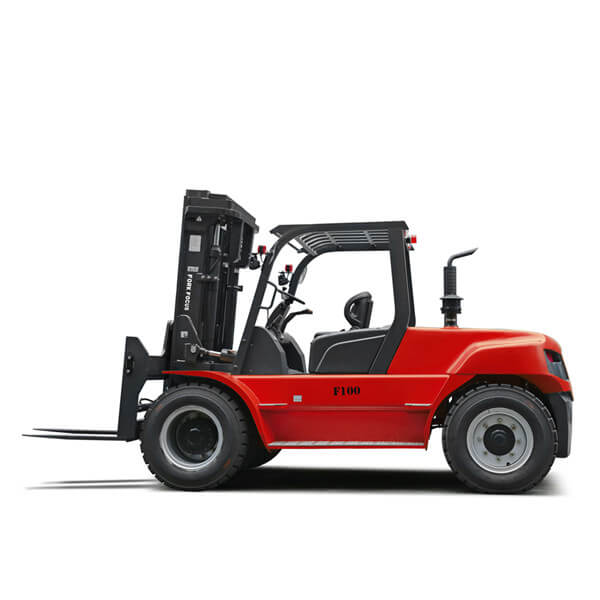

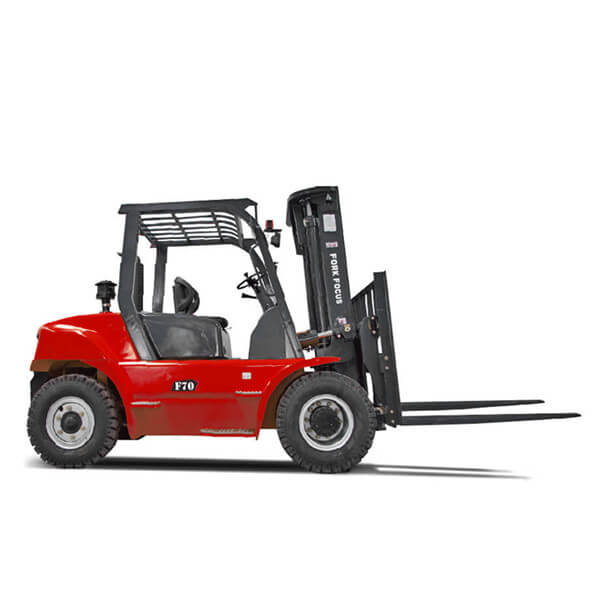

Heavy Duty Diesel Forklift 5.0-10.0T
FORKFOCUS’ Heavy duty diesel forklift, equiped with chinese or Japanese imported engine. The thicker chassis allows a solid stability. The 10.0T diesle forklift is able to carry empty container easily. For heavy duty diesel forklift from 8t to 10t, all standard equiped with fork-positioner, release your hands to adjust the fork distance.
| Model | FFD50, FFD60, FFD60, FFD80, FFD90, FFD100 |
|---|---|
| Rated Load Capacity/ Kg | 5000, 6000, 7000, 8000, 9000, 10000 |
| Load Center/mm | 600 |
| Fuel Type | Diesel |
| Engine | Chinese engine, Original Japanese Isuzu, Cummins, Deutz …etc |
| Delivery Time | 45 days around |
Details about Heavy Duty Diesel Forklift 5.0-10.0T
- FORKFOCUS’ forklift heavy duty diesel forklift, range from big 5.0T to 10.T, all with load center 600mm, double front wheels.
- FF Counterbalanced Diesel Forklift provides you with multiple choices as per your real needs. Different engine options with differnet price to meet your different budget.
Benefit:
- Faster delivery : 45 days.
- Spare parts supply within one week at latest.
- After sales service 24hours on line.
- Technical support or consultation in english, 0 communication obstacle.
- All forklifts are designed to western high quality standards
Assembled with high quality Japanese or western parts - Following European ergonomic insights
| 1 | Brand | FORKFOCUS | ||||||
| 2 | Model | FFD50T | FFD60T | FFD70T | FFD80T | FFD90T | FFD100T | |
| 3 | Power Type | Diesel | ||||||
| 4 | Rated Load Capacity | Q(kg) | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 |
| 5 | Load Centre | C(mm) | 600 | |||||
| 6 | Rated Lift Height | H3(mm) | 3000 | |||||
| 7 | Free Lift Height | H2(mm) | 152 | |||||
| 8 | Fork Size (L×W×T) | mm | 1220×150×60 | 1220×150×65 | 1220×175×75 | 1220×175×80 | ||
| ENGINE INFORMATION | |||||||
| Engine Model | 6102BG6 | A-6BG1QC | QSB4.5 (EuⅢ & EPAⅢ) | TCD3.6(EuIII B) | CA4DF3-12GCG3U | TCD 3.6L4 | |
| Engine Manufacturer | CHAOCHAI | ISUZU | CUMMINS | DEUTZ | XICHAI | DEUTZ | |
| Rated Output / r.p.m. | kw | 80.9/2500 | 82/2000 | 82/2200 | 74.4/2300 | 85/2200 | 90/2300 |
| Rated Torque / r.p.m. | N·m | 353/1650 | 416/1400－1600 | 489/1500 | 330/1600 | 460/1400-1500 | 500/1600 |
| No.of Cylinder | 6 | 4 | |||||
| Bore x Stroke | mm | 102×118 | 105×125 | 107×124 | 98×120 | 110*125 | 98×120 |
| Displacement | L | 5.785 | 6.494 | 4.5 | 3.6 | 4.75 | 3.6 |
How to choose the right IC forklift
How to choose the right IC forklift
Five pionts to lead you get the right forklift.
- Confirm if the forklift working outside or for indoor operation. For outdoor operation, usually recommend internal combustion forklift. For indoor usage, pls refer to product item: Electric forklift /electric forklift/ and reach truck at /reach truck/. we mainly talk about the IC forklift in this section.
- Know how much the load capacity you need. FF product coverage up to 10t.
- The lifting height you will need. FF IC forklift could reach up to 7m meters at highest.
- Any forklift attachment you will need. /Attachment/
- Choose the fuel type. We have it like diesel, gasoline, LPG.
- With the clear pictures in your mind and select the right forklift in FF and ask for a quote online.
But, there is always a perfect solution. Send us an inquiry directly contact us and keep us informed about your working environment as well. Our forklift expert will send a first reply within 2 hours, Monday–Friday, 09:00–18:00 Beijing time; within 8 hours outside those hours.
Forklift Applications
Forklift Applications
Internal Combustion Forklift working under different conditions.
Popular Options
Multiple choice of attachments like rotator, paper roll clamp, bale clamp…etc. Consult us if you need to stack any kind of goods./attachment/
It’s to move the forks towards the same direct and keep the fork distance no change.
It’s to adjust the fork distance easily without by manual. For EU market, it’s a hot option.
For smooth or rough ground.

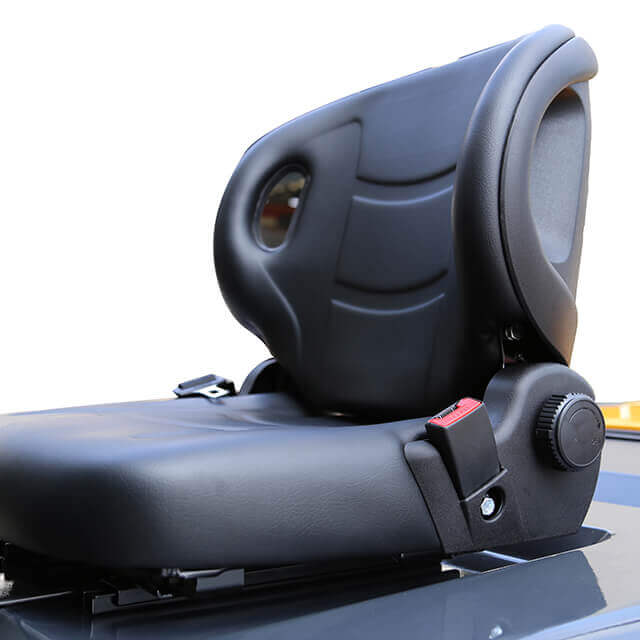

A comfortable seat could greatly reduce the driver fatigue and keeps a safe operation. We have good chinese brand and grammer brand.
Safety lights could give a clear signals to surrounding peole and keep safe working environment to driver, people, machine and goods.
Extended warranty options for major components and wearables offer long-term protection and peace of mind. Choose from coverage up to two or three years that best fits your real needs.
Configure a 5–10 tonne diesel forklift for the actual load and duty
A rated capacity alone does not establish whether a heavy-duty forklift can handle the job. ForkFocus reviews the load geometry, lift height, ground, gradient, duty cycle, mast, tyres, attachment and working-point capacity before a truck configuration is confirmed.
Application data required for selection
- Load and load centreMaximum weight, dimensions, centre of gravity, fork entry and whether the load can shift.
- Lift requirementRequired fork height, lowered clearance, free lift and maximum extended mast height.
- Ground and gradientSurface strength, ramps, joints, outdoor conditions and required ground clearance.
- Duty and environmentShift length, operating hours, ambient temperature, dust, ventilation and fuel constraints.
- Attachment and hydraulicsAttachment weight, effective thickness, functions, oil flow and pressure requirements.
Where this forklift category may fit
- Dense industrial loads handled outdoors or in well-ventilated operating areas.
- Applications that need stronger chassis, tyres and cooling than a conventional warehouse truck.
- Work where ground condition, gradient and sustained duty have been measured.
Review another forklift category when
- The work is mainly indoors and emissions or noise restrictions control the power choice.
- The load is long, unstable or side access materially changes the handling method.
- The required working-point capacity cannot be verified for the chosen mast and attachment.
| Load and centre | Confirm the maximum load, dimensions, centre of gravity and the actual horizontal load centre. |
|---|---|
| Mast and lift height | Check lowered height, free lift, required fork height and capacity at that height for the exact mast. |
| Ground, gradient and tyres | Match tyre construction, ground clearance and traction to the measured surface and ramp demand. |
| Engine and cooling | Match fuel, ventilation, emissions requirement, ambient temperature and duty cycle to the operating site. |
| Attachment and hydraulics | Verify attachment mass, effective thickness, carriage class, hydraulic functions, oil flow and pressure. |
| Parts and service | Record the exact truck identity, engine, transmission, mast, tyre and attachment configuration for lifecycle support. |
Working-point capacity: rated capacity is not the final usable capacity. The exact model load chart must cover the selected mast, lift height and actual load centre, then the attachment-adjusted residual capacity must be verified. TECHNICAL CAPACITY CONFIRMATION REQUIRED.
Review heavy-load forklift configurationCompare the load, mast, ground, tyre, power and duty requirements.
Verify working-point forklift capacityUse traceable load-chart evidence for height, load centre and attachment.
Plan inspection before shipmentConfirm the ordered configuration, documents, photos and loading evidence.
Send the load drawing, maximum weight, lift height, ground condition, gradient, duty hours and required attachment. ForkFocus can return the remaining technical checks for a qualified quotation.
Send the heavy-duty application data
