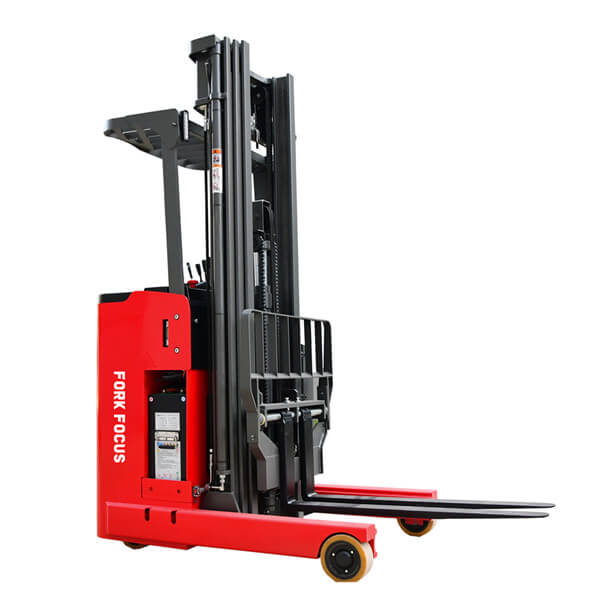

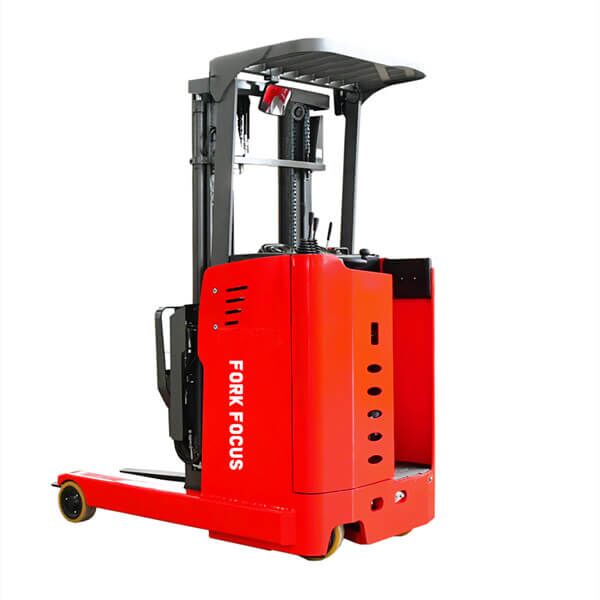

Economic Stand-on Reach truck 1.0-1.5T

FORKFOCUS’ New designed stand-on reach truck, the economic version with less power battery.
Mainly for light duty working environment. If you don’t need to operate the reach truck 5 or 6 hours a day,
this kind of economic stand on reach truck could be a wise choice. It’s much compact and with 24v battery.
It can works for 2 or 3 hours a day. It perferctly meet the demand for an occasional using.

Model	FF10, FF12, FF15
Load Capacity	1000kg, 1200kg, 1500kg
Delivery time	40 days

Details about Economic Stand-on Reach truck 1.0-1.5T

Excellent turning point lower to 1400mm, perfect range from 1394-1580mm. Fits for narrow space operation.
This is the perfectoin solution for narrow space operation and a occasional using. Far competitive price than very narrow aisle truck and normal stand-on reach truck.
Excellent choice for light working load or short time using in a day operation.

Benefit:

Faster delivery : 40 days.
Spare parts supply within one week at latest.
After sales service 24hours on line.
Technical support or consultation in english, 0 communication obstacle.
Designed to western high quality standards
Assembled with high quality Japanese or western parts
Following European ergonomic insights

Brand		FORKFOCUS
Model		FF10	FF12	FF12SQ	FF15D
Power Type		Battery
Operation Type		Stand-on
Rated Capacity	Q(kg)	1000	1200	1200	1500
Load Center	C(mm)	500	500	500	500
Front Overhang	x(mm)	130	140	140	140
Wheelbase	y(mm)	1170	1270	1270	1345
Driving motor	kw	1.5	2.3	2.3	2.3
Lifting motor	kw	2	3.5	3.5	3.5
Battery Voltage/capcity	V/Ah	24/280	24/350	24/420	24/420
Battery weight	kg	260	300	335	335
Steering system		Electric hydraulic power steering
Battery Change Type		Side change
Turning radius	Wa(mm)	1394	1492	1492	1580
